SMA Data Manager M Lite - Monitors up to 5 devices / 30kVA, powered by ennexOS

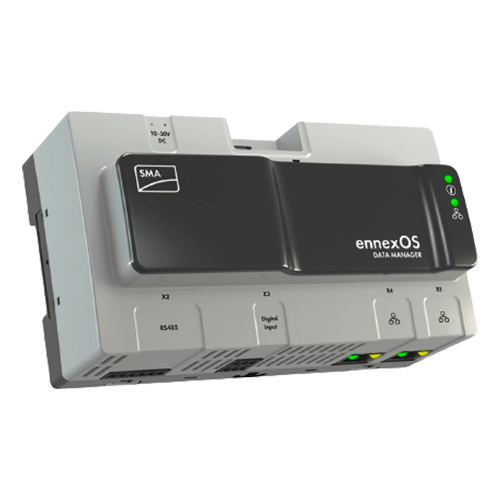

SMA EDMM-10.A Data Manager M LITE

The Data Manager M Lite and the latest Sunny Portal, both operated by ennexOS, are in perfect sync. This not only makes tracking, evaluating, parameterizing, and controlling PV systems simpler, but it also saves time and money.

Techinical Benefits

• Quick and intuitive commissioning of all local components and Sunny Portal
• Flexibly expandable according to new requirements and changing customer needs
• Convenient and secure remote monitoring and parameterization of all connected components

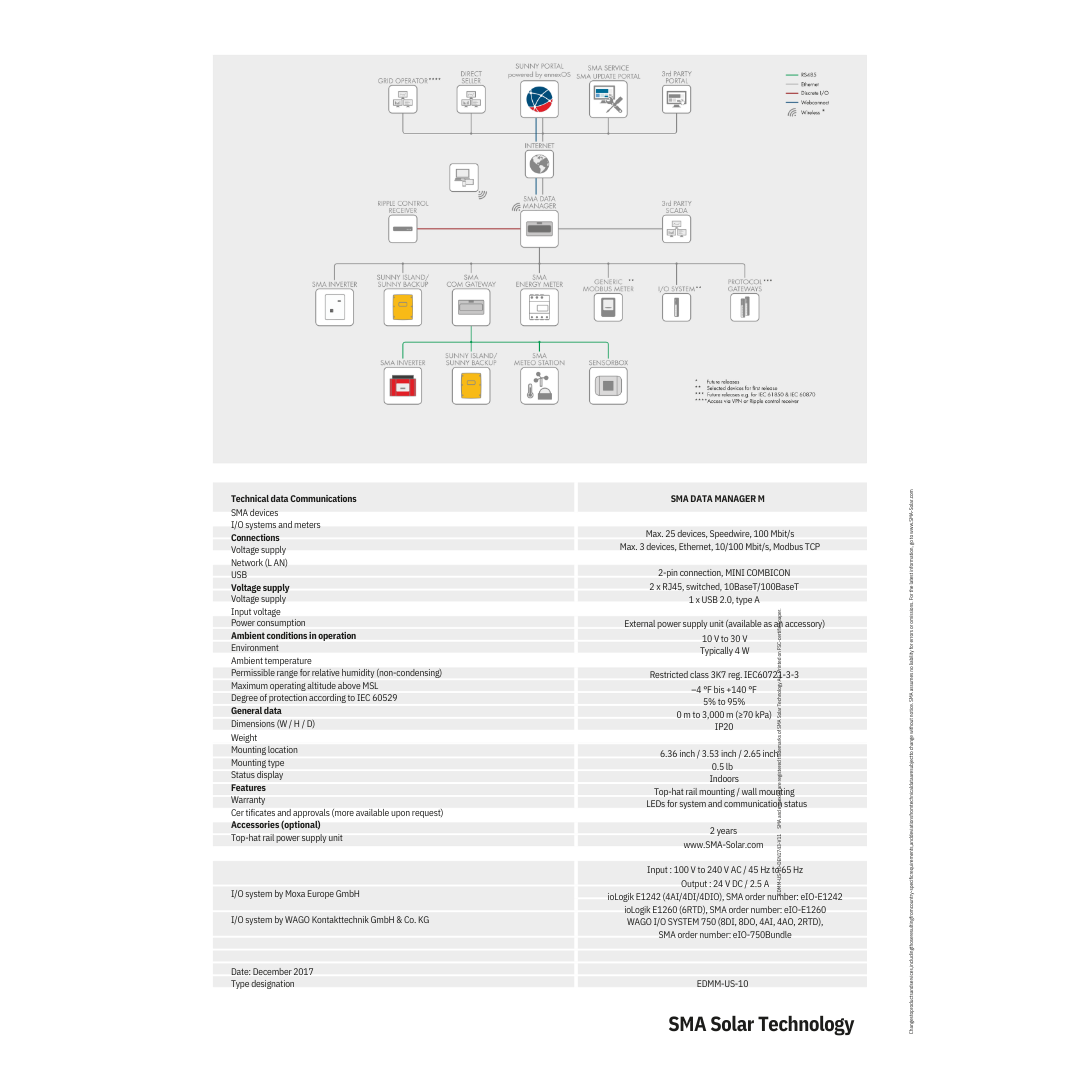

Technical Specifications

• SMA devices: Max. 25 devices, Speedwire, 100 Mbit/s
• I/O systems and meters: Max. 3 devices, Ethernet, 10/100 Mbit/s, Modbus TCP
• Voltage supply: 2-pin connection, MINI COMBICON
• Network (LAN): 2 x RJ45, switched, 10BaseT/100BaseT
• USB: x USB 2.0, type A
• Voltage supply: External power supply unit (available as an accessory
• Input voltage: 10 V to 30 V
• Power consumption: Typically 4W
• Dimensions (W / H / D): 6.36 inch / 3.53 inch / 2.65 inch
• Weight: 0.5 lb
• Mounting location: Indoors
