Description

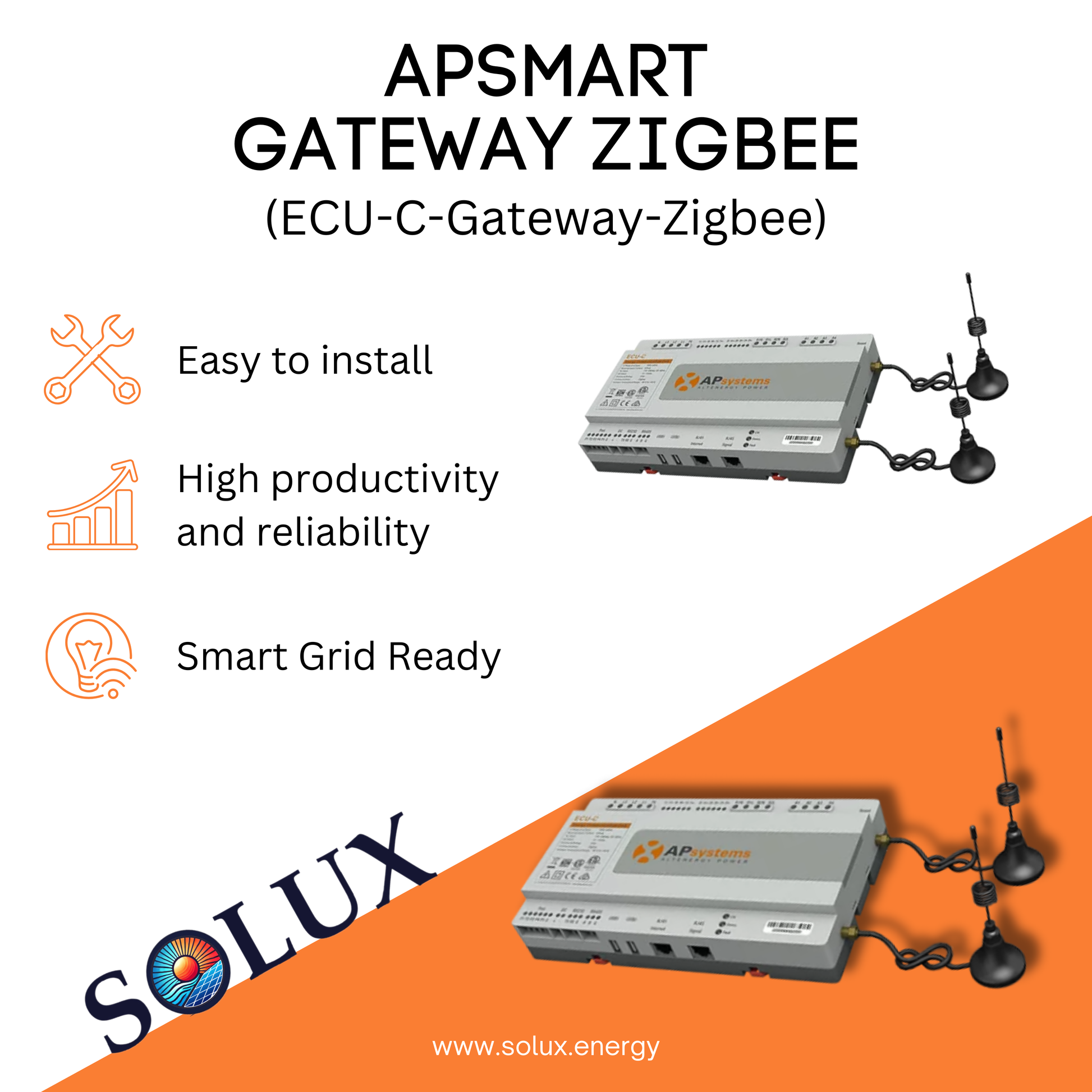

APsystems ECU-C Zigbee Communications Gateway
PV production, load consumption and grid import/export energy monitoring by integrated meters.
Stable wireless encrypted ZigBee communication with microinverters, built-in Wi-Fi and Ethernet network.
Power export limit and Zero export.
5V USB port available.
Internal relay available to control external devices.
Adapted to both single-phase or three-phase systems.TECHNICAL SPECIFICATIONS
- Communication: ZigBee 2.4 GHz
- Maximum Communicating Inverters: 100
- Ethernet: 10/100M Auto-sensing, Auto-negotiation
- Wireless: Wi-Fi 802.11g/n /GSM Cellular
- USB interface: 5Vdc - 0.5A Output x 2
- RS232: Standard
- RS485: Standard
- RJ45 Standard
- AC Power Supply: 110-277VAC, 50-60Hz Single Phase – ( 3-Phase Optional
- DC Power Supply: 12V-16V
- Power Consumption: 3W
- Frequency Range: 2412MHZ-2472MHZ (WIFI), 2405mhz-2480mhz (ZigBee)
- RF Output Power (EIRP): 16.56 dbm (WIFI), 9.50 dbm (ZigBee)
- Type of Antenna: External antenna,SMA type connector
- Modulation: DSSS, OFDM
- Mode of Operation(Simplex/Duplex): Duplex
- Dimensions (W×H×D): 210mm x 120mm x 41mm
- Weight: 500g (1.1Ibs)
- Operating Ambient Temperature Range: -40°C to +65°C ( -40°F a +149°F
- Cooling: Nature Convection; No Fans
- Enclosure Environmental Rating: Indoor - NEMA 1 (IP20)
-
Downloads
Datasheet
✔️ Datasheet
Installation Guide
No installation guide available. Email support@solux.energy for file request.
Warranty
3 Years Standard
Download Spec Sheet
The APsystems Gateway, our state-of-the-art Energy Communication Unit (ECU), collects PV production information from microinverters, energy import/export data from the grid, and energy consumption data and delivers it to the APsystems Energy Monitoring and Analysis (EMA) platform.
