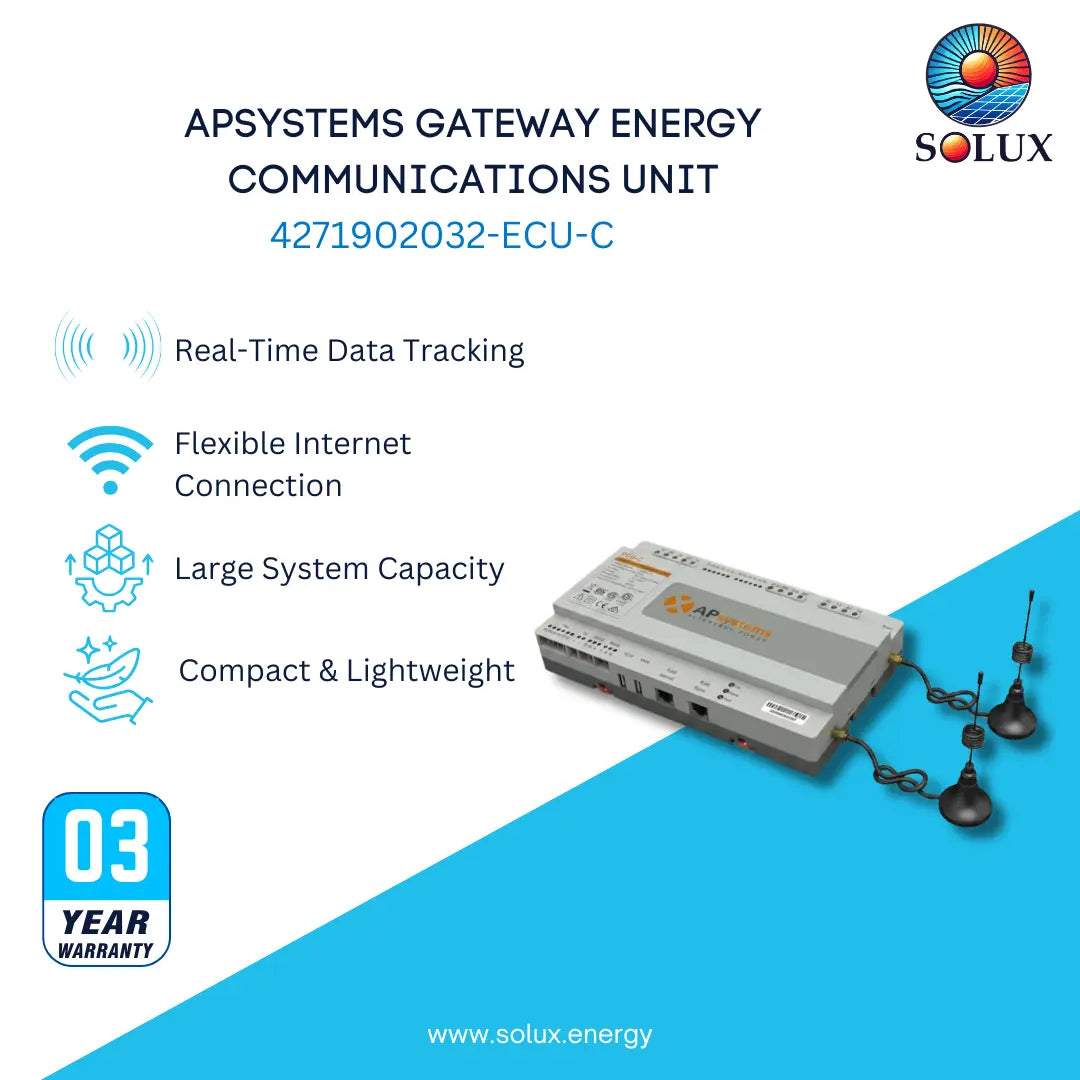

APsystems 4271802032 ECU-C Gateway Energy Communications Unit- Advanced Functions

$447.82 USD

$447.82 USD

Sale Sold out

Shipping calculated at checkout.

Key Features:

✔️ Features: ECU-C energy communication unit
✔️ Warranty: 3 years

Collects performance data from APsystems/APSmart microinverters and enables remote monitoring and management of solar PV systems.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.

Product variants

Quantity

Secure checkout with

Shipping & Returns Policy

Visit our Shipping Policy and Returns Policy page for further details

View Product Details

APSmart logo

Description
APsystems 4271802032 ECU-C Gateway Energy Communications Unit- Advanced Functions

PV production, load consumption and grid import/export energy monitoring by integrated meters.Stable wireless encrypted ZigBee communication with microinverters, built-in Wi-Fi and Ethernet network. Power export limit and Zero export. 5V USB port available.

TECHNICAL SPECIFICATIONS
- Wireless: Wi-Fi 802.11g/n /GSM Cellular
- USB interface: 5Vdc - 0.5A Output x 2
- AC Power Supply: 110-277VAC, 50-60Hz Single Phase – ( 3-Phase Optional
- DC Power Supply: 12V-16V
- Power Consumption: 3W
- Type of Antenna: External antenna,SMA type connector
- Dimensions (W×H×D): 210mm x 120mm x 41mm
- Weight: 500g (1.1Ibs)
Resource

Datasheet
✔️ Datasheet

Installation Guide

No installation guide available. Email support@solux.energy for file request.

Warranty

3 Years Standard

Download Spec Sheet Of Apsystems Gateway Energy Communications Unit
