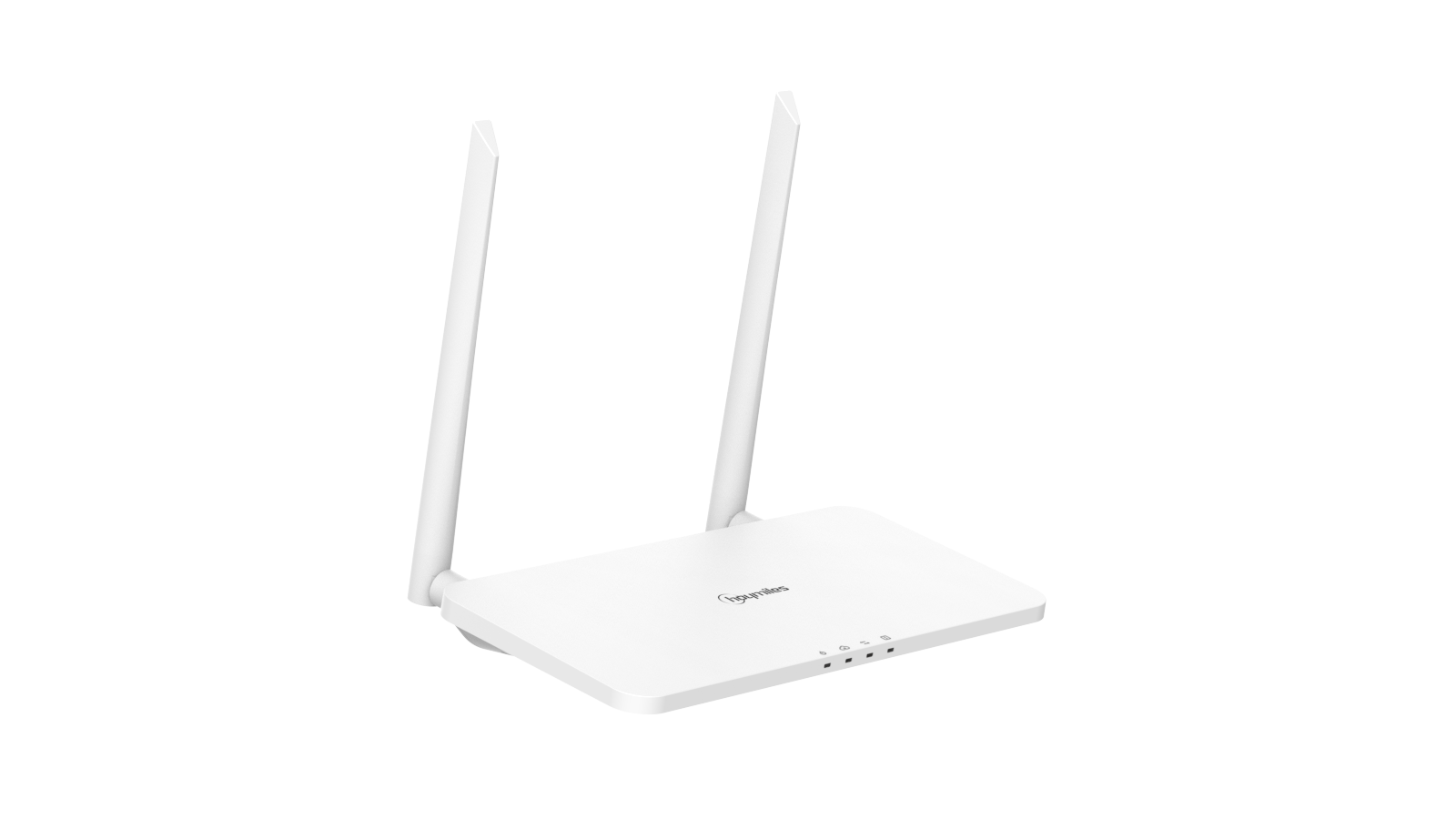

Hoymiles Gateway DTU-Pro(WIFI)

Hoymiles DTU-Pro

The Hoymiles Gateway DTU-Pro is a data transfer unit that efficiently collects information and data from PV microinverters using a 2.4G wireless solution. It then transmits this data to the S-Miles Cloud, Hoymiles’ monitoring system, using different communication options such as Ethernet, Wi-Fi, GPRS, or 4G.
With Hoymiles DTU-Pro, users can easily read module-level data and alarms and realize remote operation and maintenance of the PV system at any time from anywhere on S-Miles Cloud. Hoymiles DTU-Pro is a powerful tool to monitor and manage your solar energy system with convenience and flexibility.

Technical Specifications:

• Dimensions: 200 × 101 × 29mm (without antennas)
• Weight: 0.20kg
• Communication with microinverter: 2.4 GHz Proprietary RF (Nordic)
• Internet connection: Ethernet (RJ45 × 1, 100Mbps) / Wi-Fi (802.11b/g/n)
• Power consumption: Typ. 1.5W / Max. 3.0W
• Monitoring capacity: 99 PV modules
• Maximum distance (open space): 200m
• Installation: Wall/Desktop mounting
