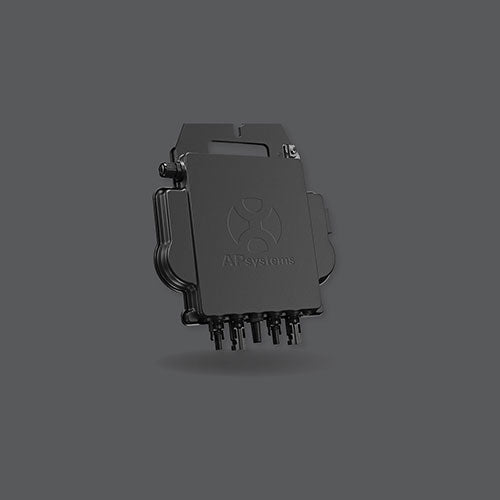

APSmart 119001 DS3-S-NA-640VA 640Watts Dual Microinverter (Supports 250-480Watts per panel)
APsystems’ 3rd generation of dual-module, single-phase microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.
Technical Specifications:
- Recommended PV Module Power (STC) Range: 250Wp-480Wp+
- Peak Power Tracking Voltage: 28V-45V
- Operating Voltage Range: 26V-60V
- Maximum Input Voltage: 60V
- Maximum Input Current: 16A x 2
- Maximum input short circuit current: 20A per input
- Peak Efficiency: 97.3%
- Nominal MPPT Efficiency: 99.5%
- Dimensions (W x H x D): (263mm x 218mm x 41.2mm)
- Weight: 5.7lbs(2.7kg)
- DC Connector Type: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
-
Resources

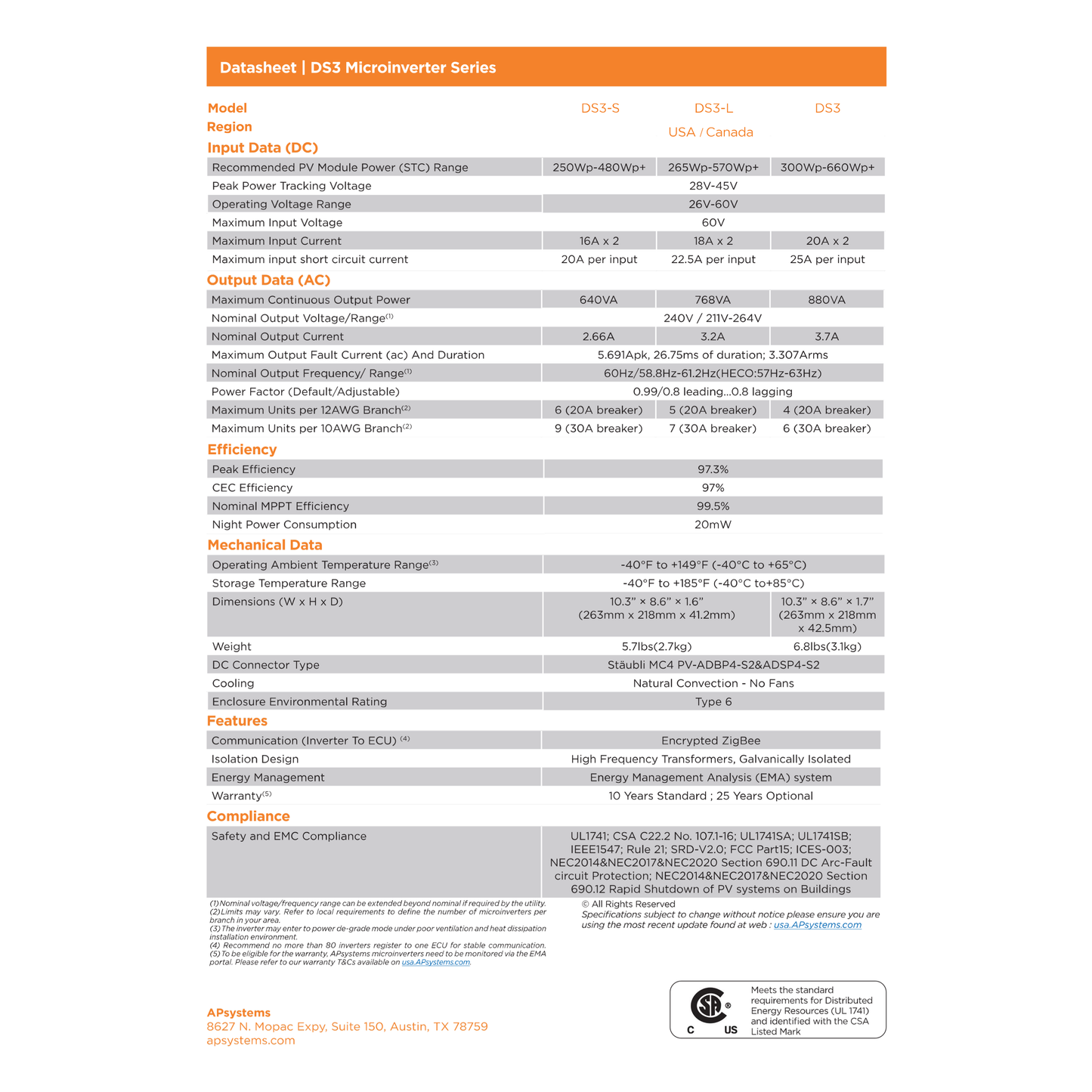

Download Spec Sheet
