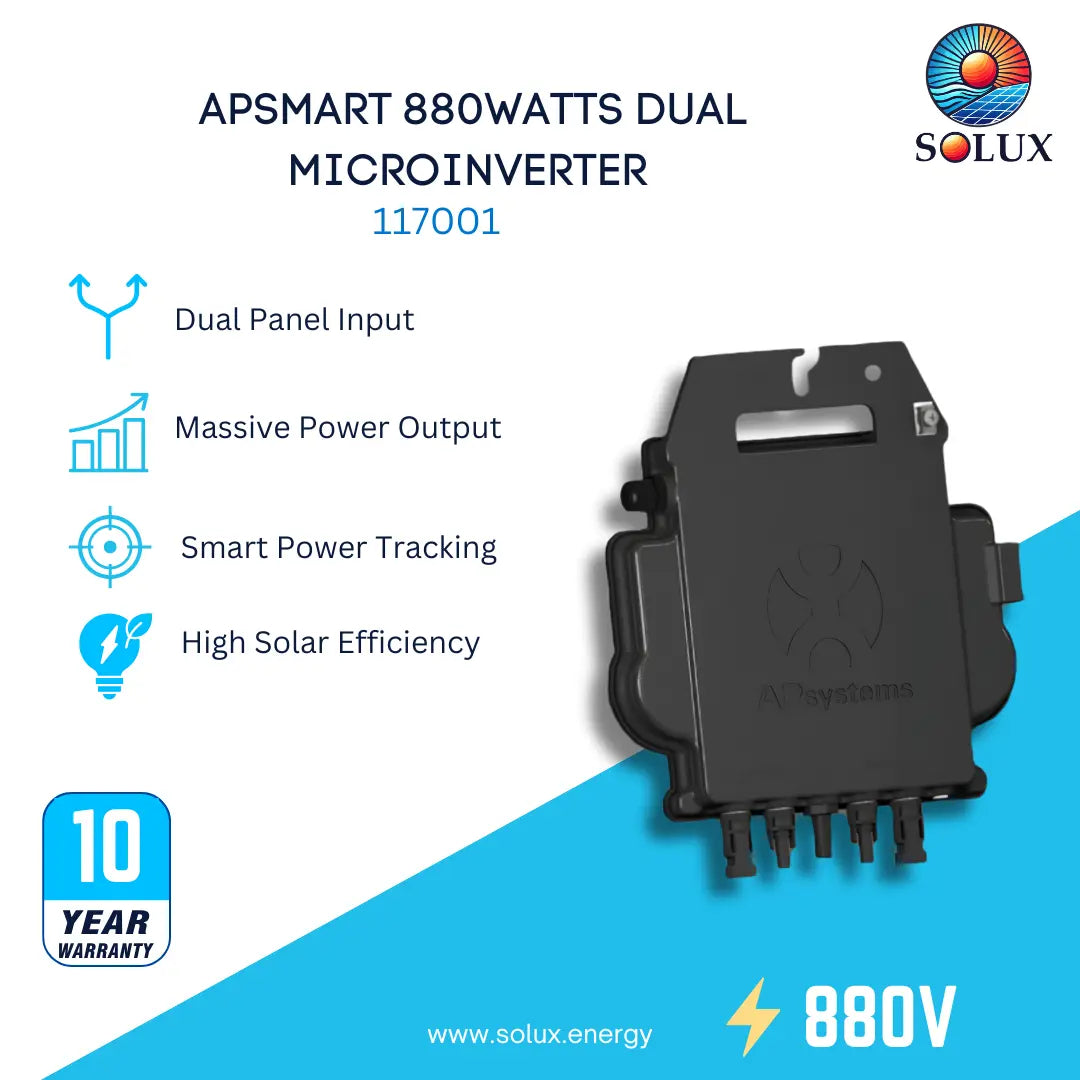

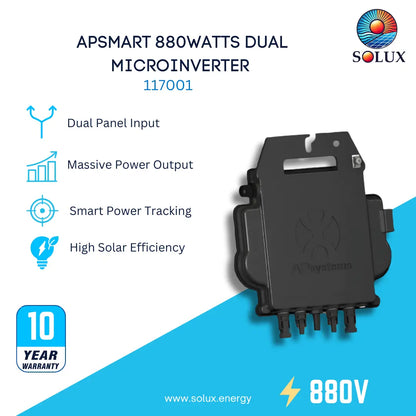

APSmart 117001 DS3-NA-880VA 880Watts Dual Microinverter (Supports 300-660Watts per Panel)

APSmart 117001 DS3-NA-880VA 880Watts Dual Microinverter (Supports 300-660Watts per Panel)

APsystems’ 3rd generation of dual-module, single-phase microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.

Technical Specifications:

• Recommended PV Module Power (STC) Range: 300Wp-660Wp+
• Peak Power Tracking Voltage: 28V-45V
• Operating Voltage Range: 26V-60V
• Maximum Input Voltage: 60V
• Maximum Input Current: 20A x 2
• Maximum input short circuit current: 25A per input
• Maximum Continuous Output Power: 880VA
• Nominal Output Voltage/Range(1) 240V / 211V-264V
• Nominal Output Current: 3.7A
• Maximum Output Fault Current (ac) And Duration: 5.691Apk, 26.75ms of duration; 3.307Arms
• Nominal Output Frequency/ Range(1): 60Hz/58.8Hz-61.2Hz(HECO:57Hz-63Hz
• Power Factor (Default/Adjustable): 0.99/0.8 leading…0.8 lagging
• Peak Efficiency: 97.3%
• CEC Efficiency: 97%
• Nominal MPPT Efficiency: 99.5%
• Night Power Consumption: 20mW
