APSmart 118001 DS3-L-NA-768VA 768Watts Dual Microinverter (Supports 265-570Watts per Panel)

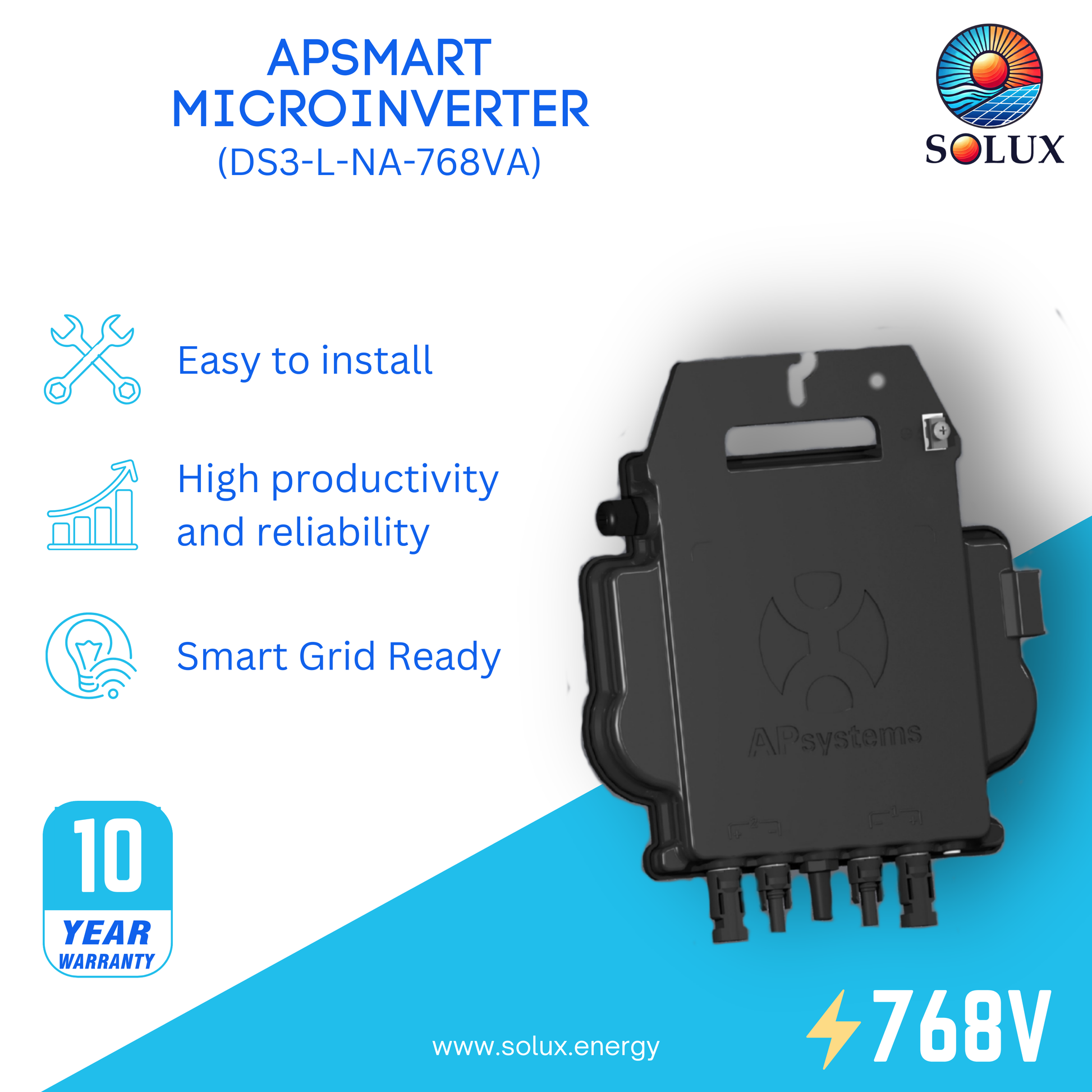

APSmart DS3-L-NA-768VA 768Watts Dual Microinverter

APsystems’ 3rd generation of dual-module, single-phase microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.
The DS3 series reaches unprecedented levels of power output and is fully backwards compatible with QS1 and YC600 microinverters and accessories. It features 2 input channels, each with independent MPPT, and encrypted wireless Zigbee communication. An innovative and compact design makes the product lighter while maximizing power production, and silicone-encapsulated components reduce stress on electronics, facilitate thermal dissipation, and enhance weatherproofing. Reliability is significantly increased thanks to 20% fewer components than previous generations.
The DS3 series is grid-interactive and fully compliant with CA Rule 21 requirements. With its unparalleled performance, efficiency of 97%, and increased reliability, the APsystems DS3 series is a gamechanger for residential and commercial solar.

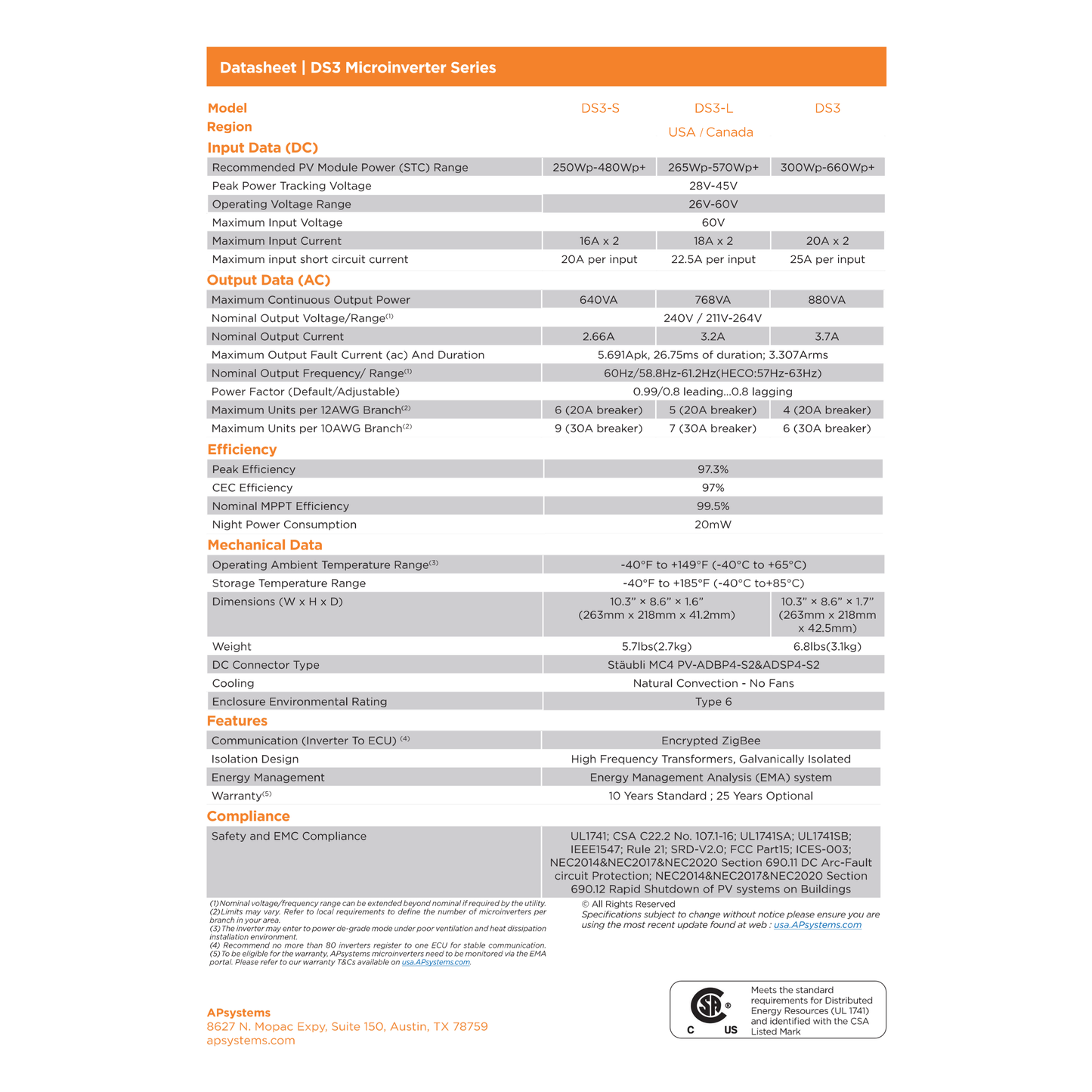

Technical Specifications:

• Recommended PV Module Power (STC) Range: 265Wp-570Wp+
• Peak Power Tracking Voltage: 28V-45V
• Operating Voltage Range: 26V-60V
• Maximum Input Voltage: 60V
• Maximum Input Current: 18A x 2
• Maximum input short circuit current: 22.5A per input
• Maximum Continuous Output Power: 768VA
• Nominal Output Voltage/Range: 240V / 211V-264V
• Nominal Output Current: 3.2A
• Maximum Output Fault Current And Duration: 5.691Apk, 26.75ms of duration; 3.307Arms
• Nominal Output Frequency/ Range(1): 60Hz/58.8Hz-61.2Hz(HECO:57Hz-63Hz
• Power Factor (Default/Adjustable): 0.99/0.8 leading…0.8 lagging
• Peak Efficiency: 97.3%
• CEC Efficiency: 97%
• Nominal MPPT Efficiency: 99.5%
• Night Power Consumption: 20mW
• Dimensions (W x H x D) : 263mm x 218mm x 41.2mm
• Weight: 5.7lbs(2.7kg)
• DC Connector Type: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
