Description

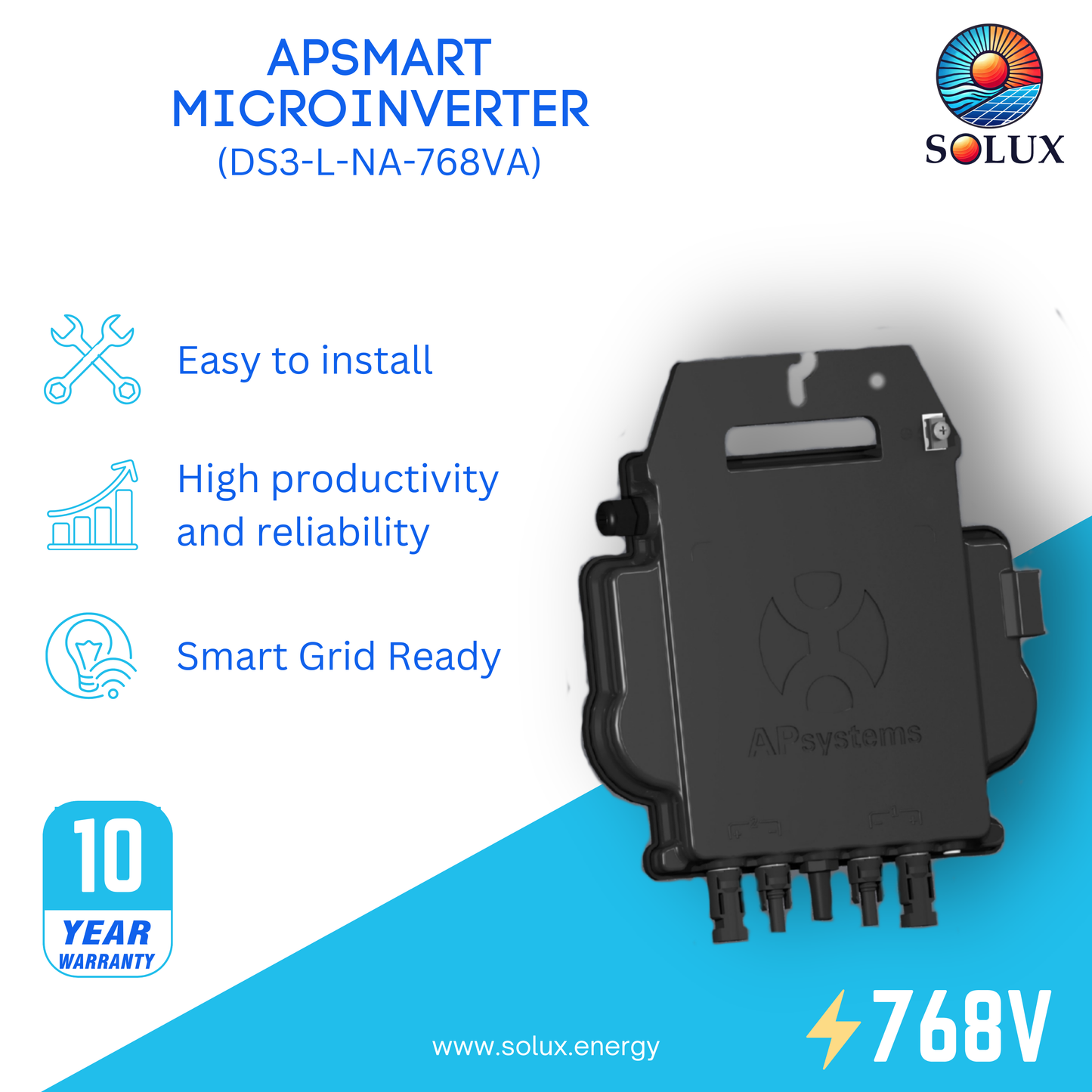

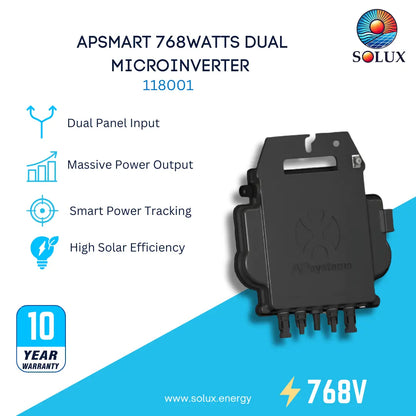

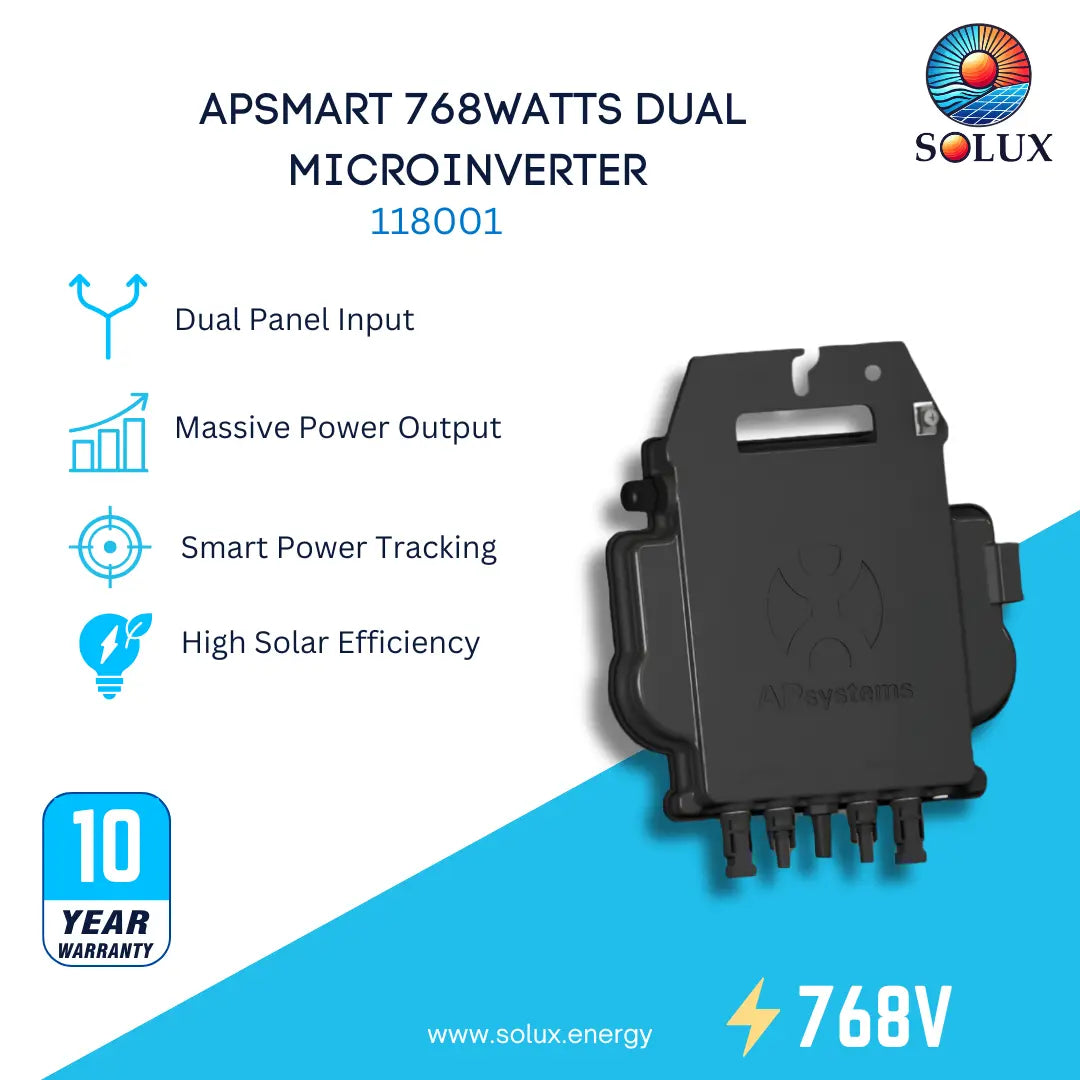

APSmart 118001 DS3-L-NA-768VA 768Watts Dual Microinverter (Supports 265-570Watts per Panel)

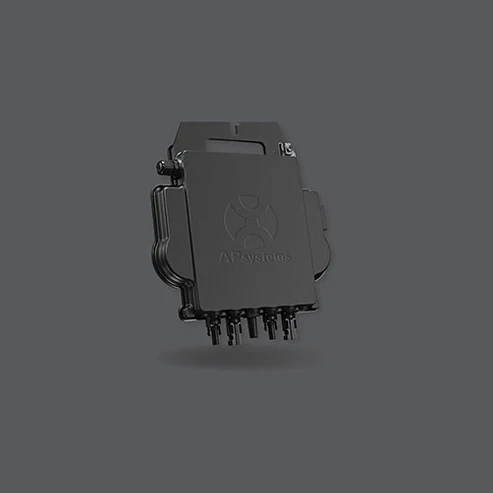

APsystems’ 3rd generation of dual-module, single-phase microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.

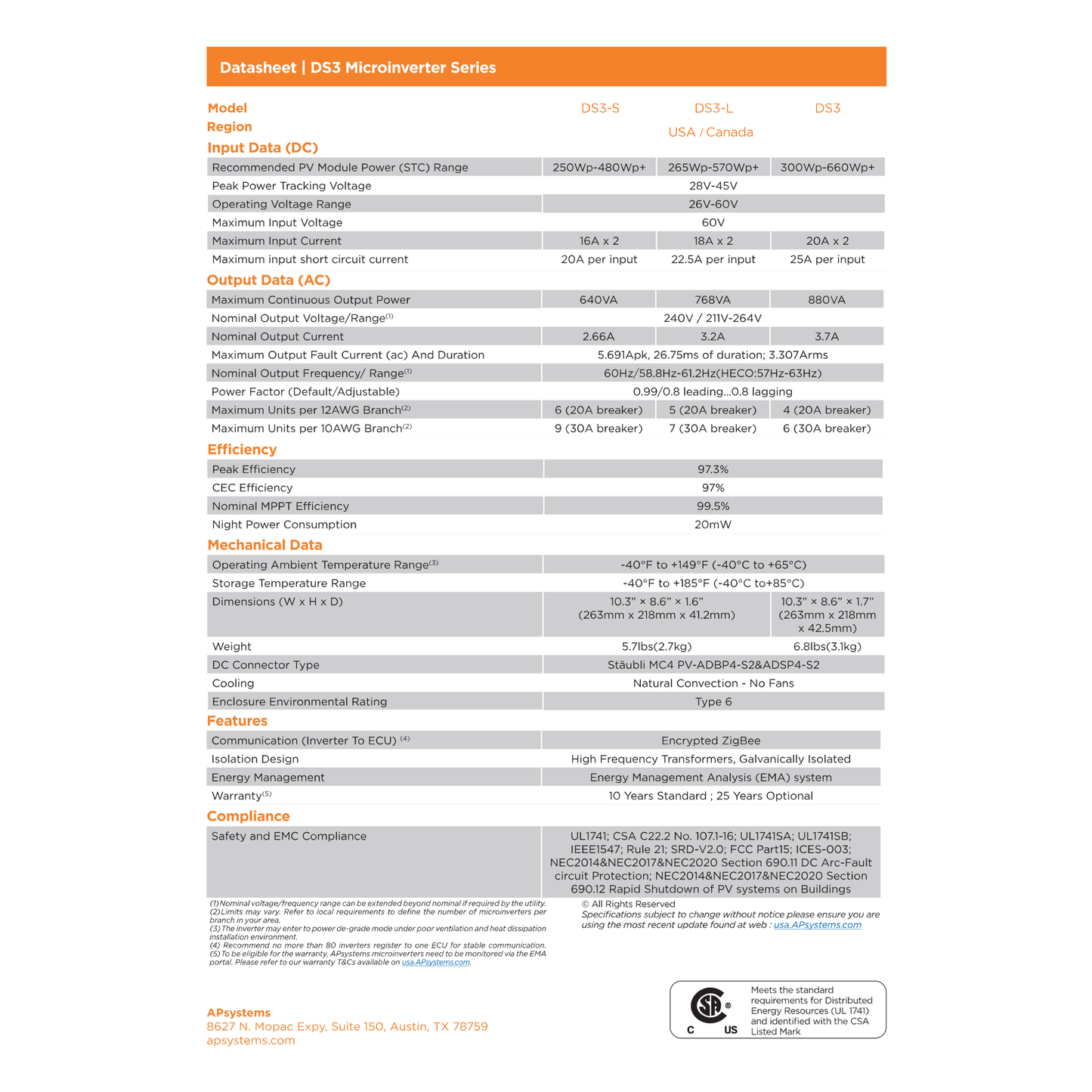

Technical Specifications:
- Recommended PV Module Power (STC) Range: 265Wp-570Wp+
- Peak Power Tracking Voltage: 28V-45V
- Operating Voltage Range: 26V-60V
- Maximum Input Voltage: 60V
- Maximum Input Current: 18A x 2
- Maximum input short circuit current: 22.5A per input
- Maximum Continuous Output Power: 768VA
- Nominal Output Voltage/Range: 240V / 211V-264V
- Nominal Output Current: 3.2A
- Maximum Output Fault Current And Duration: 5.691Apk, 26.75ms of duration; 3.307Arms
- Nominal Output Frequency/ Range(1): 60Hz/58.8Hz-61.2Hz(HECO:57Hz-63Hz
- Power Factor (Default/Adjustable): 0.99/0.8 leading…0.8 lagging
- Peak Efficiency: 97.3%
- CEC Efficiency: 97%
- Nominal MPPT Efficiency: 99.5%
- Night Power Consumption: 20mW
- Dimensions (W x H x D) : 263mm x 218mm x 41.2mm
- Weight: 5.7lbs(2.7kg)
- DC Connector Type: Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
-
Resources
Download Spec Sheet
The DS3-S and DS3-L have also been specifically designed to maximize the output on each residential circuit. Compared with competing devices, the DS3-S has up to 37% more AC output and the DS3-L up to 60% more output power per channel than conventional microinverters.
