SMA DC-SPD-KIT6-10 DC Surge Protection For Sunny Tripower CORE1

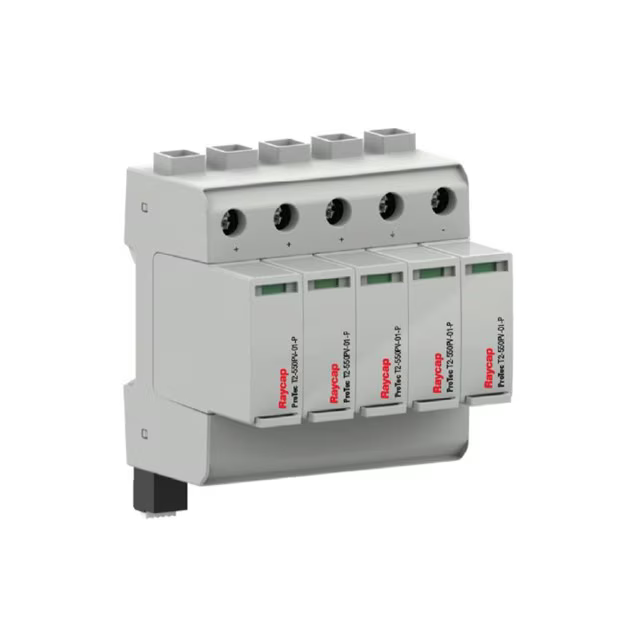

SMA Single-Pole DC Surge Protection Kit - Type 2 (DC-SPD-KIT6-10)

The SMA DC-SPD-KIT6-10 Single-Pole DC Surge Protection Kit is an internal Type 2 DC surge protective device (SPD) engineered for SMA Sunny Tripower CORE1 and Sunny Tripower X series commercial inverters. It safeguards the inverter's MPPT tracking channels and DC power electronics against voltage transients, switching spikes, and indirect lightning strikes originating from the solar PV array wiring.

Designed for clean integration, this kit mounts into the designated internal slots of the inverter enclosure to provide full DC side overvoltage protection without requiring external combiner boxes.

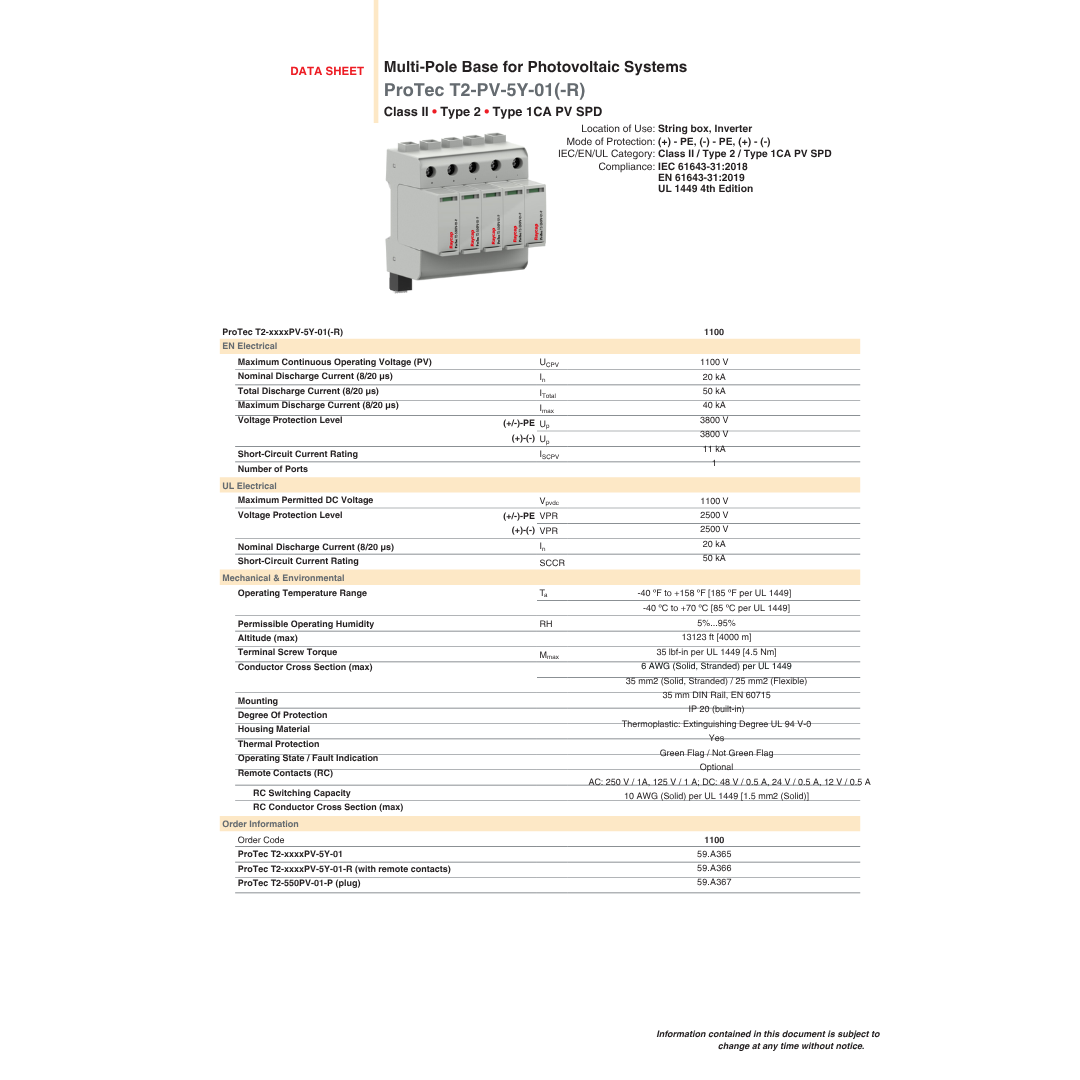

Technical Specifications

• Maximum Continuous Operating Voltage (PV): UCPV 1100V
• Nominal Discharge Current (8/20 µs): In 20kA
• Total Discharge Current (8/20µs): ITotal 50kA
• Maximum Discharge Current (8/20µs): Imax 40kA
• Voltage Protection Level: (+/-)-PE Up 3800V
• Voltage Protection Level: (+)-(-) Up 3800V
• Short-Circuit Current Rating: ISCPV 11kA
• Number of Ports: 1
