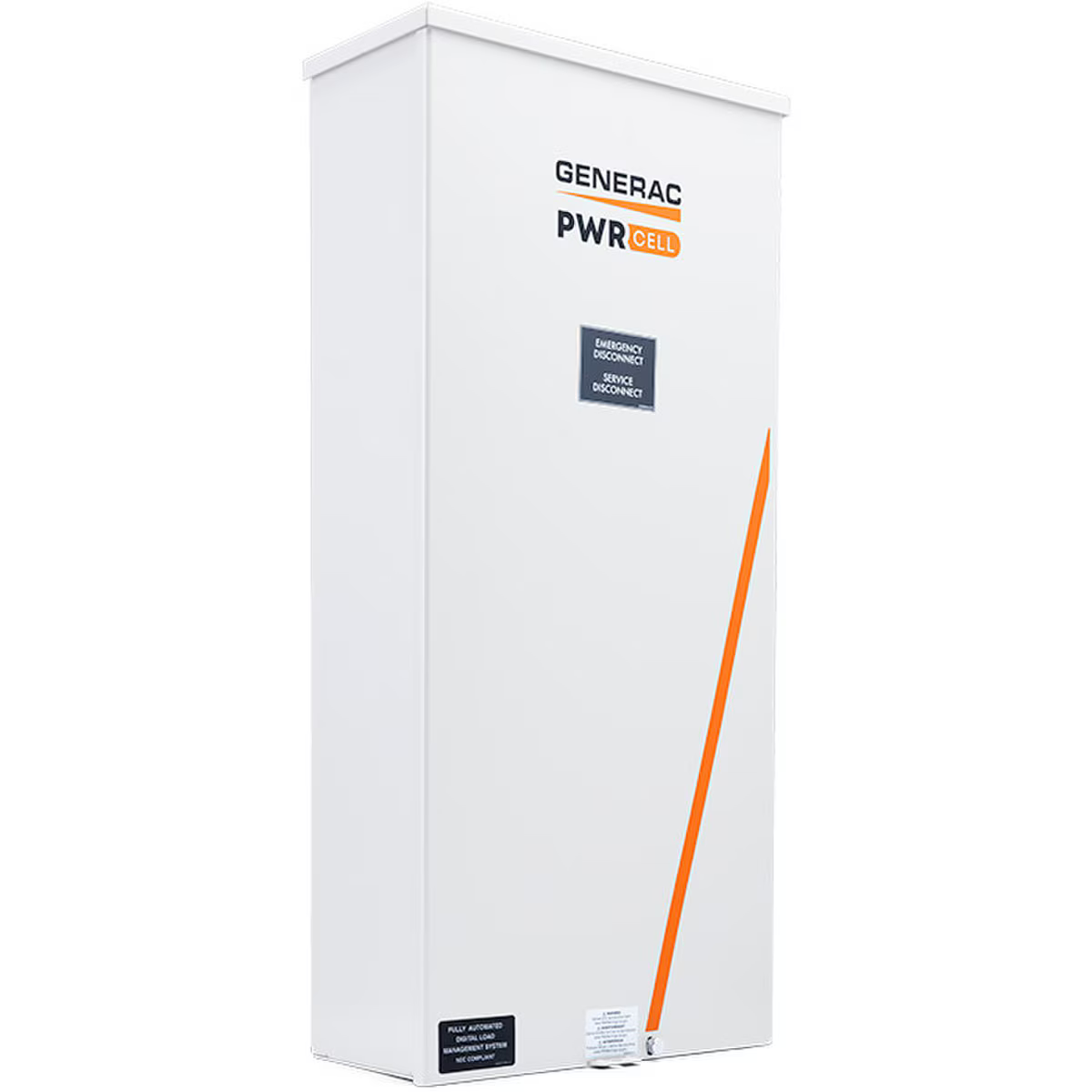

Generac CXSW200A301 PWRcell CXSW200A301 200A Transfer Switch
The CXSW200A301 is a 200‑Amp Service Entrance Rated Automatic Transfer Switch (ATS) from Generac’s PWRcell line.
Technical Specifications:
- Ams: 200
- Voltage: 120 / 240 V
- Load Transition Type: Open Transition Service Rated
- Enclosure Type: NEMA 3R
- Compliance: UL 1008
- Withstand Rating (AMPS): 22,000
- LUG Range: 250 MCM - #6
- Manufacturer Part Number: CXSW200A301
- Manufacturer Warranty: 5 Years
- Shipping Weight: 39 lb
- Shipping Dimensions: 6.3 x 13.5 x 30 in
-
Downloads

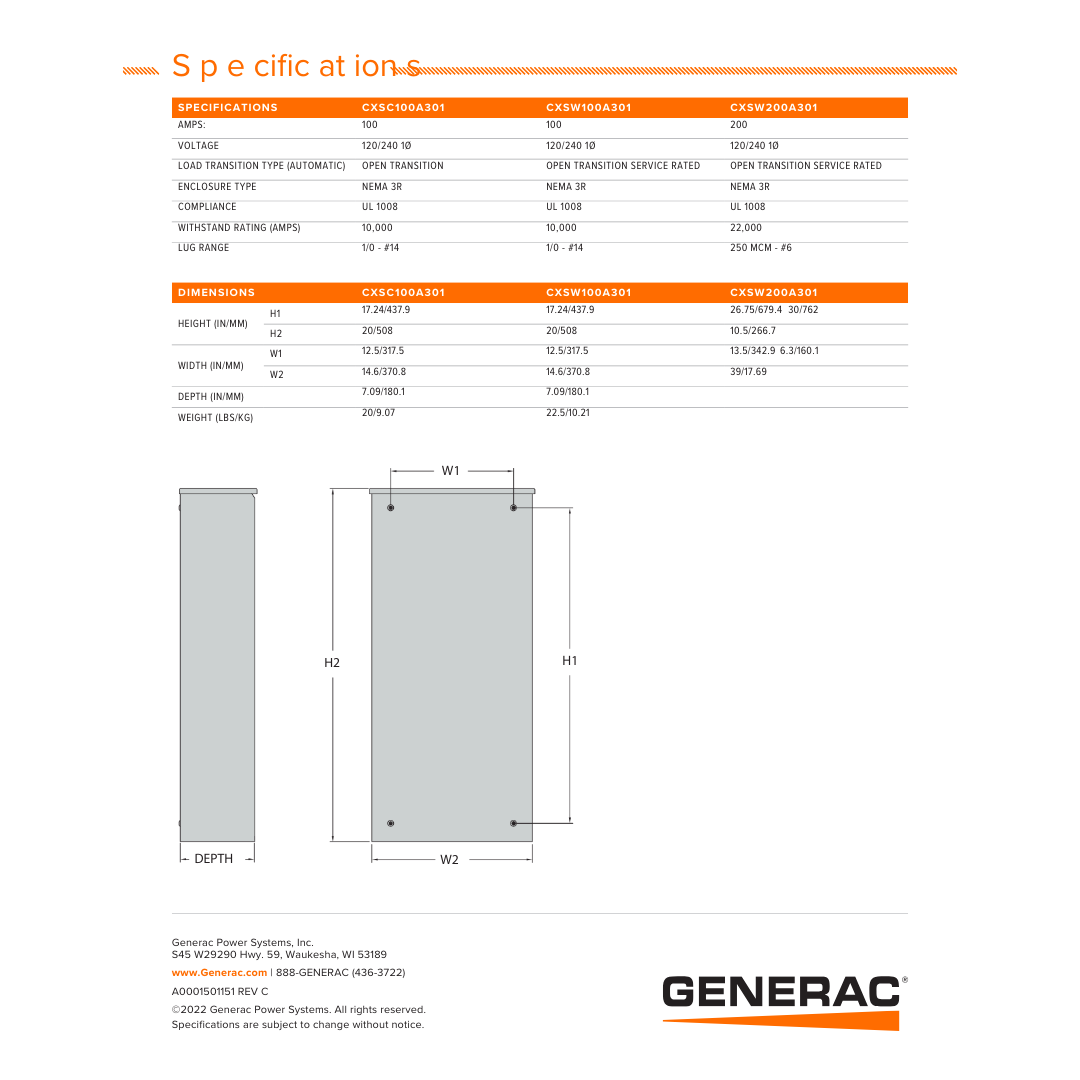

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
