Description

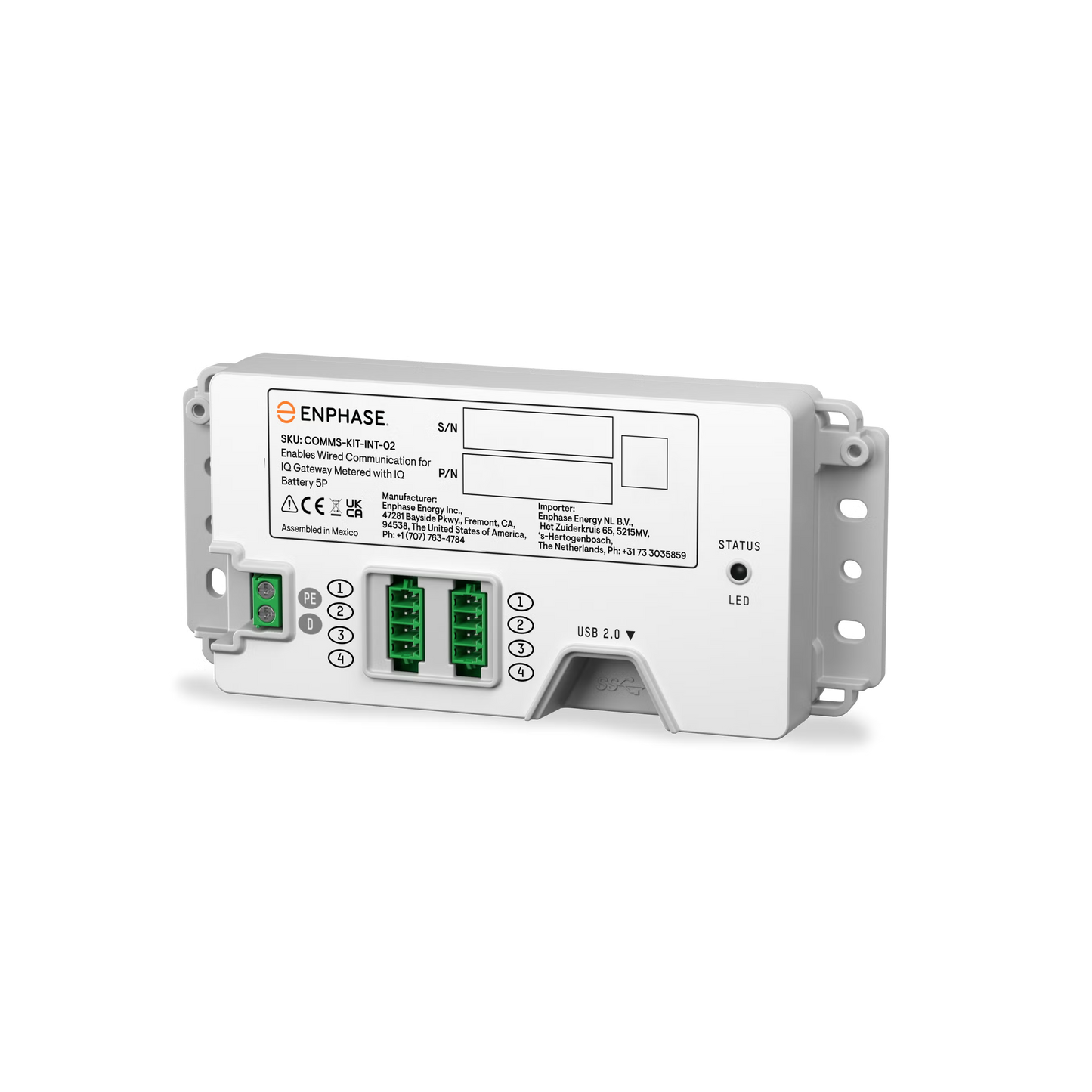

Enphase COMMS-KIT-02 Communications Kit 2
The Communications Kit 2 INT enables an IQ Gateway Metered to communicate with an IQ Battery 5P via wired control communication. Integrating with the 3rd-generation Enphase Energy System, it is required for the operation of an IQ Battery 5P in grid-tied mode.
Technical Specifications
- Supply voltage: 5 V
- Current: 500 mA
- Weight: 100 g/ 0.22 lbs
- Optimal ambient temperature: -40°C to 45°C
- Length: 69 mm
- Width: 152 mm
- Height: 25 mm
- Uses wired control communication for fast and consistent communication between system components.
- Simple and safe USB connection to IQ Gateway for power and data.
- Plug-and-play wiring enables quick installation.
-
