Description
Commercial Inverter, 3PH

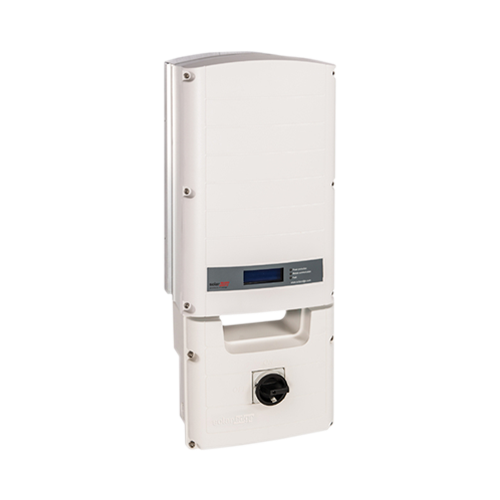

The SolarEdge SE14.4K-USR28NNU4 is a 14.4 kW, three-phase commercial string inverter designed for SolarEdge PV systems using power optimizers. It converts DC electricity from solar modules into 208 VAC three-phase AC power for connection to the electrical grid. It also includes integrated rapid shutdown, arc-fault protection, and module-level monitoring capabilities.
Specifications:
- Manufacturer: SolarEdge
- Model: SE14.4K-USR28NNU4 / SE14.4KUS
- Product type: Commercial 3-phase inverter
- Rated AC power: 14,400 VA / 14.4 kW
- Maximum DC power: 19.4 kW
- Maximum AC output current: 40 A per phase
- Efficiency: 97% CEC weighted
- Frequency: 60 Hz
- DC inputs: 3 pairs
- Protection: NEMA 3R
- Dimensions: approximately 540 × 315 × 260 mm
- Communications: RS485, Ethernet; ZigBee optional
- Grid: 208 V, three-phase
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
