Hoymiles Combiner Box w/ 5yr Cell Card

Combiner Box HMS-C

The Hoymiles Combiner Box acts as a central unit, enhancing the efficiency of installing residential power plants by consolidating power distribution and data transmission into one convenient hub.
The Hoymiles HMS-C Combiner Box streamlines residential solar installations by centralizing power distribution and data transmission. It includes a DTU and smart meter, enabling real-time monitoring, data collection, transmission, and Export Power Limit functionality. Designed for efficiency, it integrates an Eaton BR series load center, supporting up to five 2-pole input circuits to accommodate higher input currents and manage more loads.

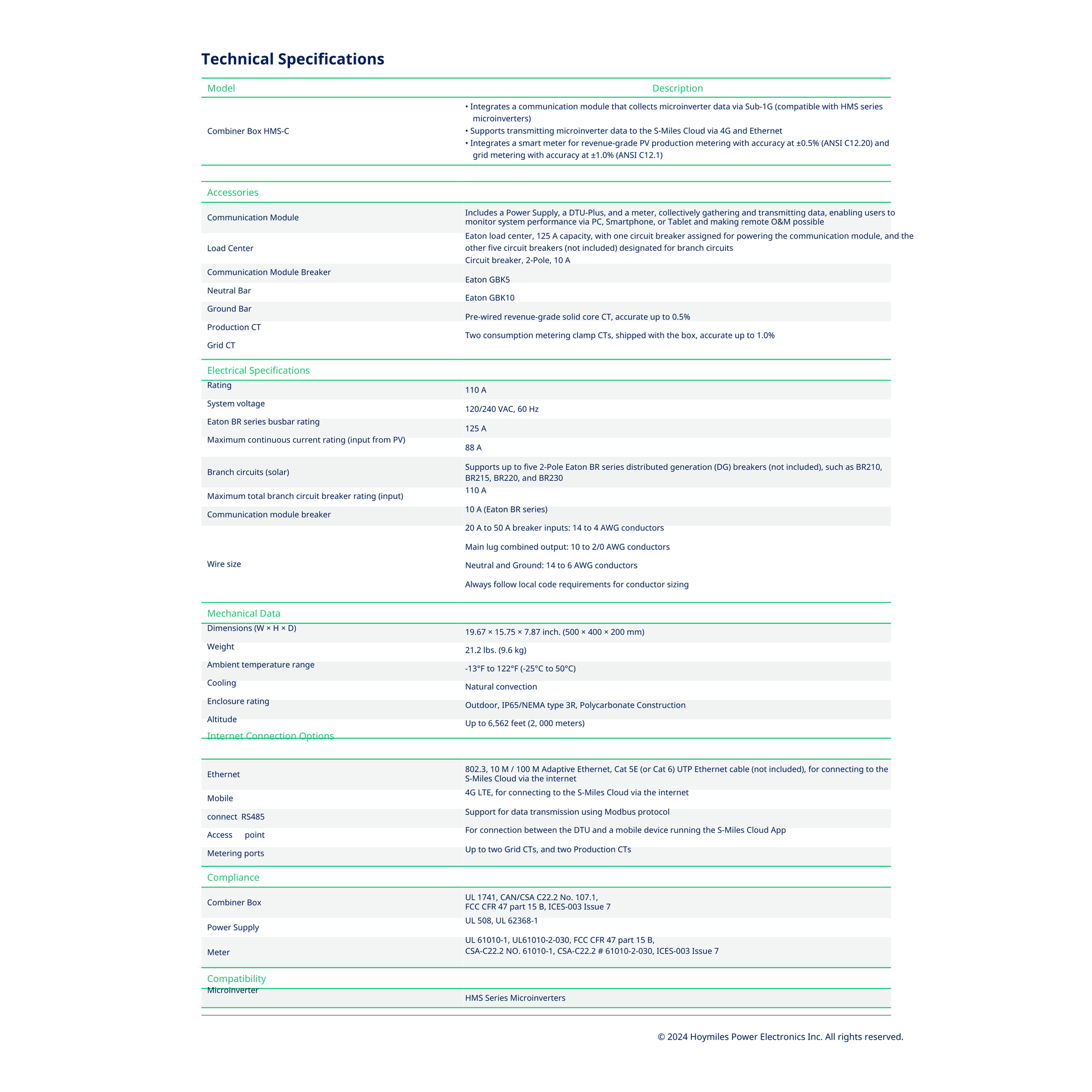

Technical Specifications:

• Rating 110: A
• System voltage: 120/240 VAC: 60 Hz
• Eaton BR series busbar rating: 125 A
• Maximum continuous current rating (input from PV): 88 A
• Branch circuits (solar): Supports up to five 2-Pole Eaton BR series distributed generation (DG) breakers (not included), such as BR210, BR215, BR220, and BR230
• Maximum total branch circuit breaker rating (input): 110 A
• Communication module breaker: 10 A (Eaton BR series)
• Dimensions (W × H × D): 19.67 × 15.75 × 7.87 inch. / (500 × 400 × 200 mm
• Weight: 21.2 lbs. (9.6 kg)
• Ambient temperature range: -13°F to 122°F (-25°C to 50°C)
• Cooling: Natural convection
• Enclosure rating: Outdoor, IP65/NEMA type 3R, Polycarbonate Construction
• Altitude: Up to 6,562 feet (2, 000 meters)
• Ethernet: 802.3, 10 M / 100 M Adaptive Ethernet, Cat 5E (or Cat 6) UTP Ethernet cable (not included), for connecting to the S-Miles Cloud via the internet
• Mobile connect: 4G LTE, for connecting to the S-Miles Cloud via the internet
• RS485: Support for data transmission using Modbus protocol
• Access point: For connection between the DTU and a mobile device running the S-Miles Cloud App
• Metering ports: Up to two Grid CTs, and two Production CTs
