Description

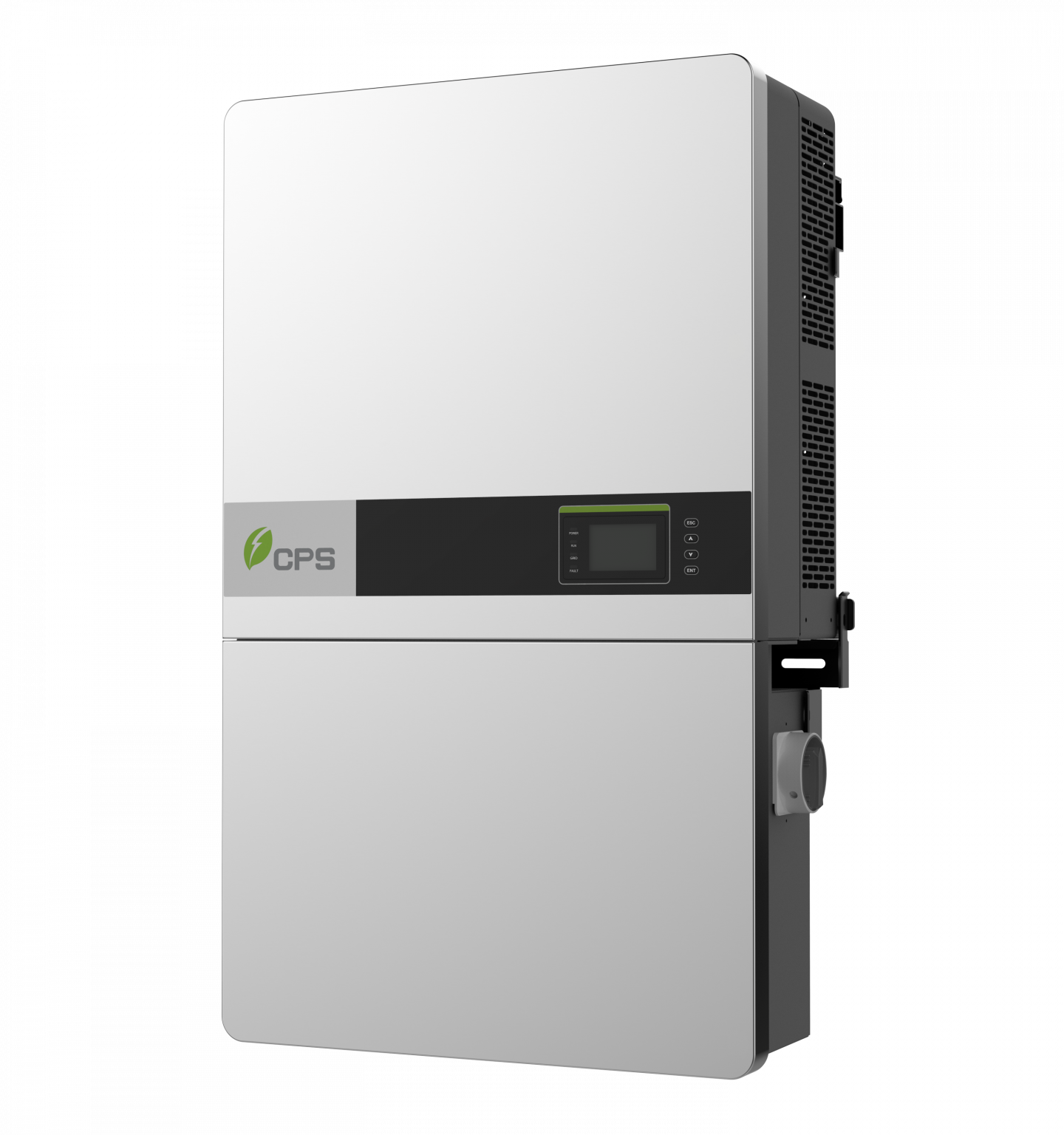

Chint Power 36kW 3-Phase Commercial String Inverter
The SCA36KTL-DO/US-480 is a 36 kW three-phase grid-tied string inverter from Chint Power Systems designed for commercial solar PV installations. It converts DC power from solar panels into 480V AC three-phase electricity for direct grid connection, offering high efficiency (around 98%), dual MPPT tracking, and built-in protection features such as arc-fault detection, surge protection, and rapid shutdown support.
Technical Specifications
- Rated Power (AC): 36 kW
- Max PV Power: ~61.2 kW
- Max Efficiency: 98.5%
- Dimensions: 1000 × 600 × 230 mm
- Weight: 154 lb
- Operating Temperature: -25°C to +60°C
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
