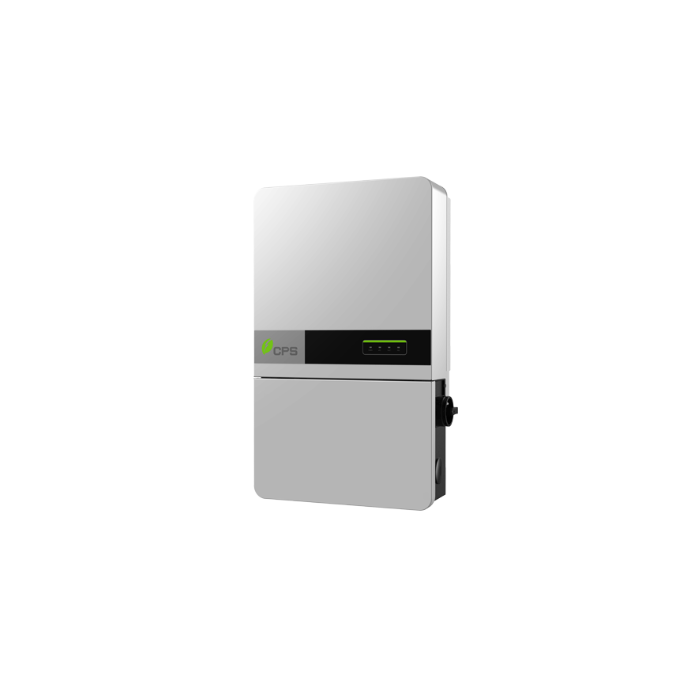

Chint 25kW 3Phase String Inverter 480Vac (APS RSD Wiringbox)

Chint Power Systems 25 kW, 480 Vac,1000 Vdc, APS Wire Box, Three Phase String Inverter for North America

The 25 kW (480 V) CPS three phase string inverter is designed for rooftop and carport applications. These units are high performance, advanced and reliable inverters designed specifically for the North American environment and grid. High efficiency at 98.5% peak and 98.0% CEC, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 25 kW (480 V) product ships with a Rapid Shutdown Wire-box, fully integrated and separable with touch-safe fusing, monitoring, and AC and DC disconnect switches. The integrated PLC transmitter in the Rapid Shutdown Wire-box enables PVRSS-certified module-level rapid shutdown when used with APS RSD-S-PLC/RSD-D products. The CPS FlexOM Gateway enables monitoring, controls and remote product upgrades.

Key Features:

• NEC 2017/2020 PVRSS-certified rapid shutdown
• NEC 2017/2020-compliant & UL-listed arc-fault circuit protection
• 15-90° mounting orientation for low profile roof installs
• 15° tilt Inverter Rack Assembly available from CPS
• Optional FlexOM Gateway enables remote firmware upgrades
• Integrated AC & DC disconnect switches
• 2 MPPTs with 3 inputs each for maximum flexibility
• Copper and Aluminum compatible AC connections
• NEMA Type 4X outdoor rated, tough tested enclosure
• UL 1741-SA certified to CA Rule 21, including SA14 - SA18
• UL 1741-SB and IEEE 1547-2018 certified
• Separable wire-box design for fast service
• Standard 10-year warranty with extensions to 20 years
• Generous 1.5 DC/AC inverter load ratio
