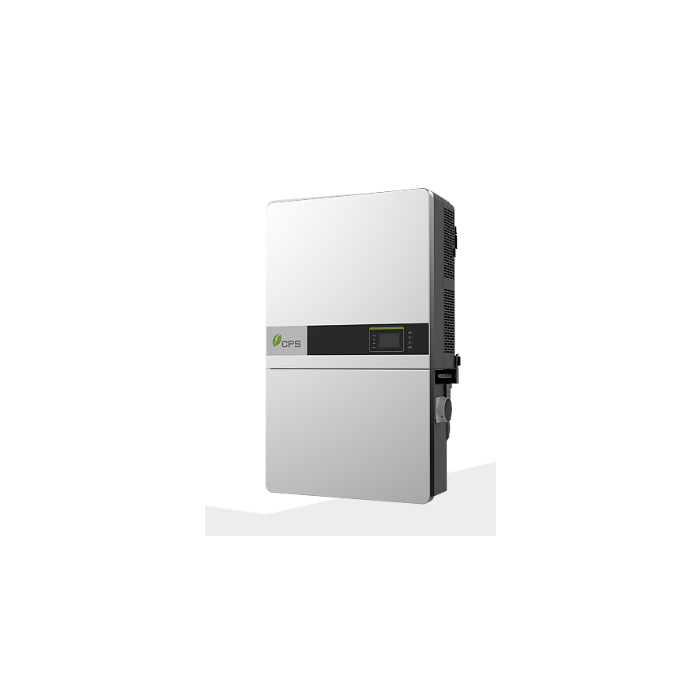

Chint 25kW 3-Phase String Inverter, 208Vac, APS RSD Wirebox

Chint Power Systems 25kW 3-Phase String Inverter, 208Vac, 1000 Vdc APS RSD Wirebox String Inverter for North America

The 25 kW (25 kVA) CPS three-phase string inverters are designed for rooftop and carport applications. The units are high performance, advanced and reliable inverters designed specifically for the North American environment and grid. High efficiency at 97.0% peak and 96.5% CEC, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 25KTL-208V product ships with the Rapid Shutdown Wire-box, fully integrated and separable with touch-safe fusing, monitoring, and AC and DC disconnect switches. The integrated PLC transmitter in the Rapid Shutdown Wire-box enables PVRSS-certified module-level rapid shutdown when used with APS RSDS- PLC/RSD-D products. The CPS FlexOM Gateway enables monitoring, controls and remote product upgrades.

Key Features:

• NEC 2017/2020 PVRSS-certified rapid shutdown
• NEC 2017-compliant and UL-listed arc-fault circuit protection
• UL 1741-SB and IEEE 1547-2018 certified
• 15-90° mounting orientation for low-profile roof installs
• Optional FlexOM Gateway enables remote firmware upgrades
• Integrated AC and DC disconnect switches
• 3 MPPTs with 2 inputs each for maximum flexibility
• Copper- and Aluminum-compatible AC connections
• NEMA Type 4X outdoor rated, tough tested enclosure
• UL 1741-SA certified to CA Rule 21, including SA8-SA18
• Separable wire-box design for fast service
• Standard 10-year warranty with extensions to 20 years
• Generous 1.8 DC/AC inverter load ratio
