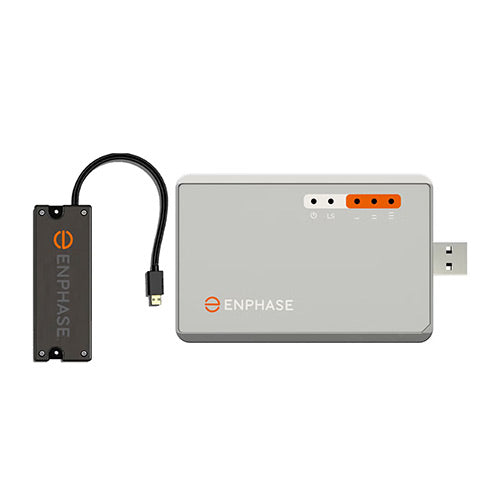

Enphase Communications Kit with CELLMODEM-M1-06-SP-05
This kit contains two Enphase products:
- Enphase Energy System Communications Kit (COMMS-KIT-01)
- Enphase Mobile Connect Cellular Modem CELLMODEM-M1-06-SP-05 with T-Mobile SIM
The Enphase Communications Kit (COMMS-KIT-01) contains a wireless USB adapter that facilitates continuous communication between IQ Gateway/IQ Combiner/Envoy-S Metered, IQ Gateway S Metered/IQ Gateway S combiner box, IQ Battery 3/3T/10/10T and IQ System Controller 1/2.
The Enphase Mobile Connect Cellular Modem delivers easy, reliable networking for Enphase Energy Systems. CELLMODEM-M1-06-SP-05 is an LTE CAT M1 cellular modem. It includes a prepaid 5-year data plan and acts as a backup communication path for an Enphase Energy System in case the Wi-Fi or Ethernet connectivity fails.
-
Details
Communications Kit
- Enables direct communication between the IQ Battery, IQ System Controller, and IQ Gateway/Envoy-S or IQ Combiner box
- Needed for the proper functioning of the Enphase Energy System
- Connected to one of the USB ports on the IQ Gateway/Envoy-S Metered, usually located within the IQ Combiner
Enphase Mobile Connect Cellular Modem
- Comes with an internal antenna
- Pre-installed T-Mobile SIM
- Coverage available in US, Canada, Puerto Rico, and the US Virgin Islands
- LTE CAT M1 cellular connectivity
- Pre-configured to activate when connected to the IQ Gateway
- Provides backup connectivity for Enphase Energy System
- Transmits data to the Enphase Cloud four times a day
-
Technical specifications
✔️ Communications Kit
Length: 180.00 mm
Width: 66.50 mm
Height: 30.60 mm✔️ Enphase Mobile Connect Cellular Modem
Length: 91.00 mm
Width: 60.00 mm
Height: 15.00 mm -
Compatibility
- To be used with IQ Gateway/Envoy-S/IQ Combiner with Gateway software version 7.0 or later
- For Enphase Energy Systems with IQ Battery 3/3T/10/10T and/or IQ System Controller 1/2
-
What's in the box
✔️ Communications Kit
- 1 Enphase Communications Kit COMMS-KIT-01
- 3 plastic cable ties
- 1 Quick Installation Guide
✔️ Enphase Mobile Connect Cellular Modem
- 1 Enphase Connect Cellular Modem CELLMODEM-M1-06-SP-05
- 1 USB Type A female to type A male
- 1 mounting tab for installation in IQ Combiner 3/3C/3ES/3C-ES/4/4C/5/5C
- 2 snap rivets for the mounting tab
- 1 Quick Installation Guide
-
Resources

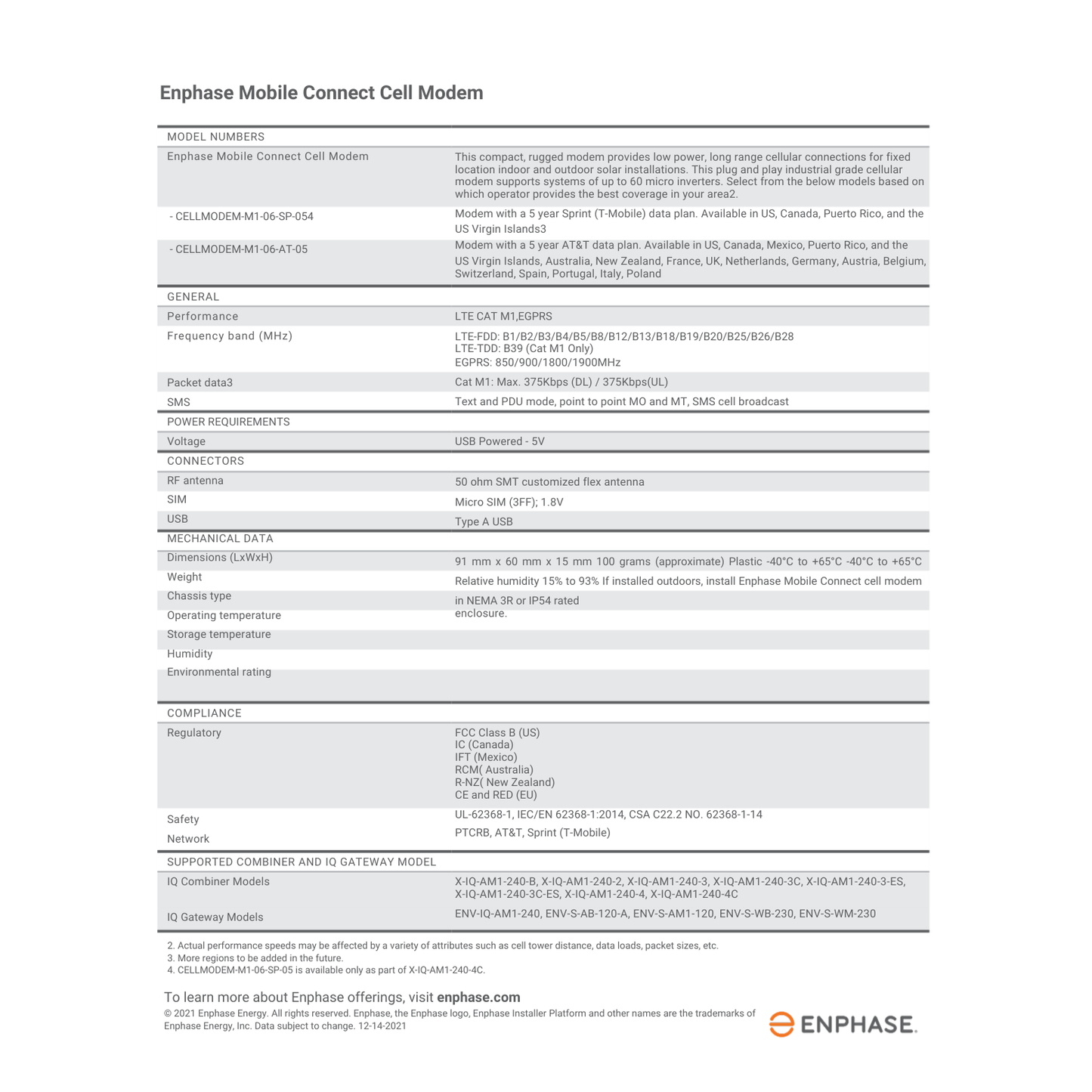

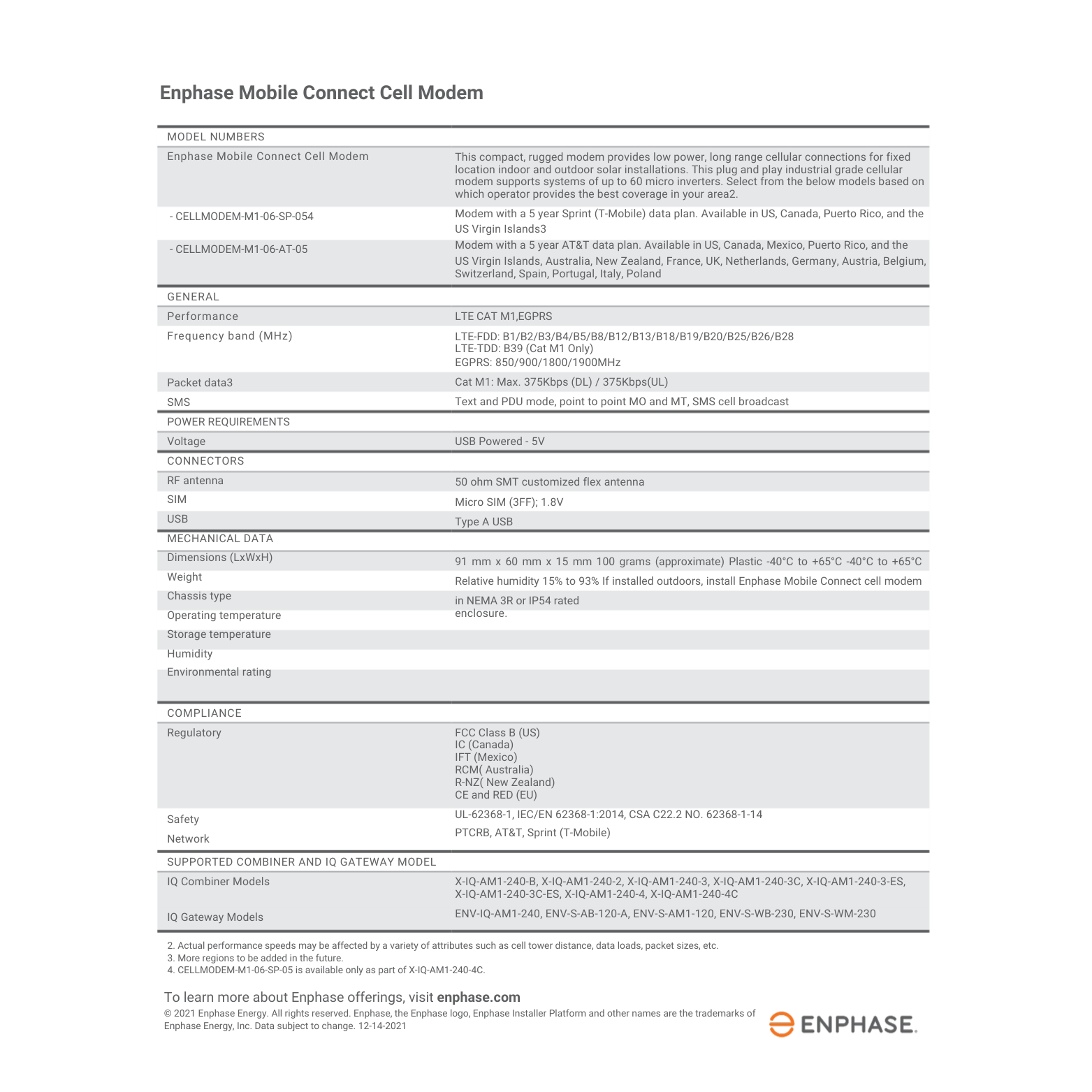

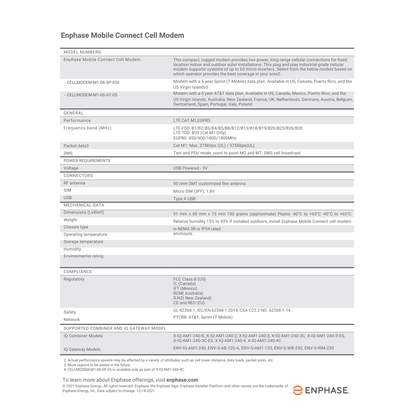

Datasheet
✔️ Download Enphase-Mobile-Connect-Cell-Modem-DS-EN-US.pdf
Installation Guide
✔️ Download communications_kit_quick_install_guide.pdf -
Warranty
5 years
