Description

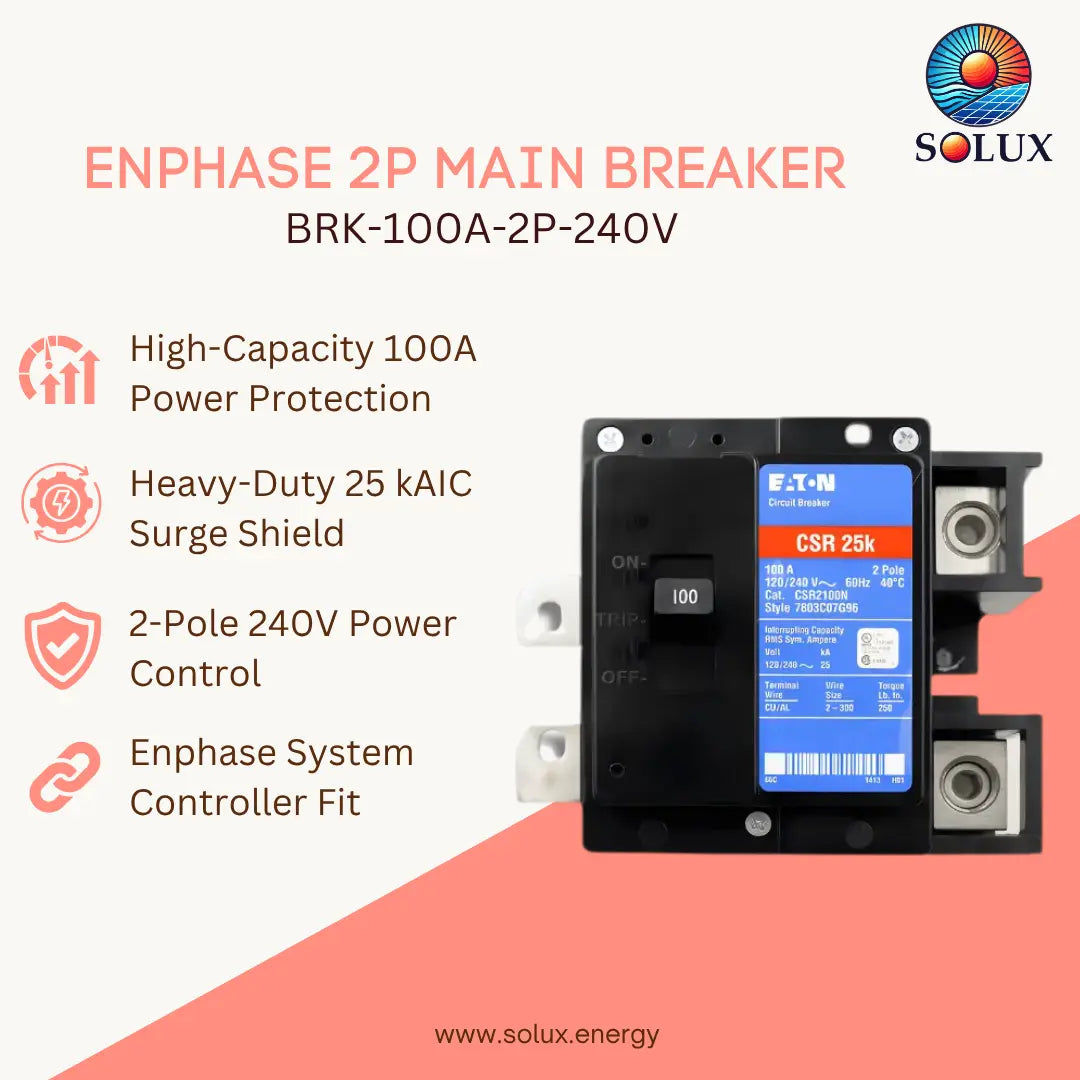

Enphase 100A 2-Pole 240V Main Breaker (BRK-100A-2P-240V)
The Enphase BRK-100A-2P-240V Main Breaker is a heavy-duty, two-pole circuit breaker engineered to deliver essential overcurrent and short-circuit protection within Enphase solar and energy storage systems. Designed for integration into Enphase System Controllers (Enpower), IQ Combiner boxes, and AC subpanels, this breaker handles high continuous currents up to 100 A across standard 120/240 VAC split-phase power lines.
Featuring a high 25 kAIC short-circuit interrupting capacity, it safely isolates severe electrical fault currents, protecting internal busbars, microinverters, battery storage units, and wiring assemblies from thermal overload and permanent damage.
Technical Specifications:
- Max Current: 100 A
- Ampere Interrupting Capacity: 25 kAIC
- Poles: 2 Pole
- Input Current: 100 A
- Manufacturer Warranty: 15 Years
- Shipping Weight: 2.87 lb
- Shipping Dimensions: 5.4 x 2.4 x 1.1 in
-
