IronRidge BX-CMA-SI-M1 BX Inverter Mounting Assembly

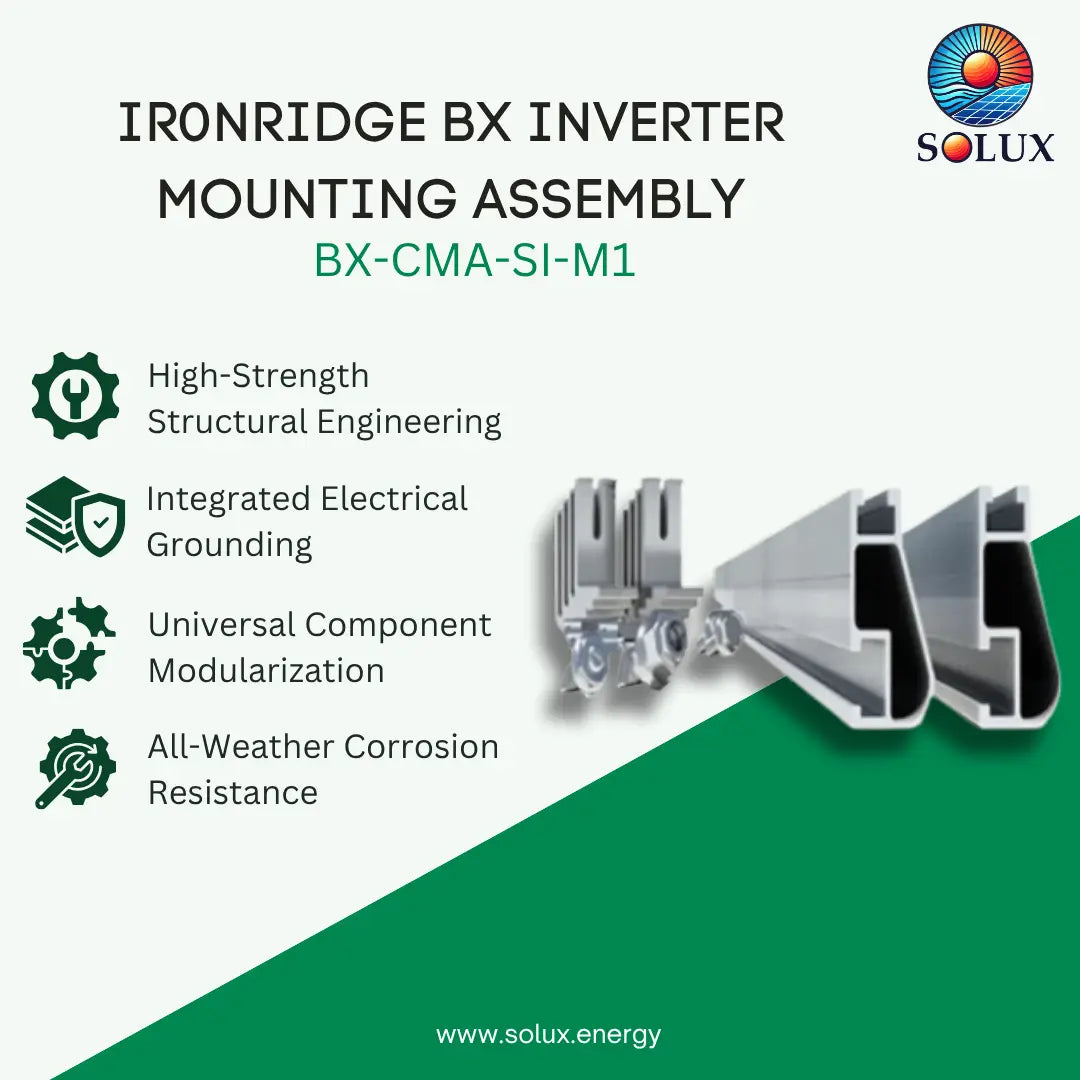

IronRidge BX Inverter Mounting Assembly with Rails (BX-CMA-SI-M1)

The IronRidge BX Inverter Mounting Assembly (BX-CMA-SI-M1) is a specialized hardware kit engineered to integrate string inverters, microinverters, and power electronics into the IronRidge BX ballasted flat-roof racking system. Supplied complete with four 48-inch XR10 mill-finish rails and integrated bonding hardware, this assembly creates a rigid, code-compliant mounting sub-frame directly over the BX chassis (BX chassis ordered separately).

UL 2703 listed and built for extreme roof loading conditions, the BX-CMA-SI-M1 establishes reliable structural support and electrical bonding across commercial and residential flat-roof solar PV arrays. Its all-aluminum and stainless steel construction resists corrosion while maintaining the fire resistance rating of the existing roof membrane.

• Model/Type: BX-CMA-SI-M1

• Finish: Mill
• Included Hardware: 4 × Cage Nuts + 8 × Extruded L-Feet + 4 × Flange Head Cap Screws + 4 × XR10 48″ Mill Rails + 8 × T-Bolt Bonding Hardware + 4 × Microinverter Bonding Hardware
• Durable & Certified: Corrosion-free and engineered for long term structural performance. UL 2703 Listed System
  Entire system and components meet newest effective UL 2703 standard.
• Water Protection & Fit: Certified to maintain the fire resistance rating of the existing roof.
