Description

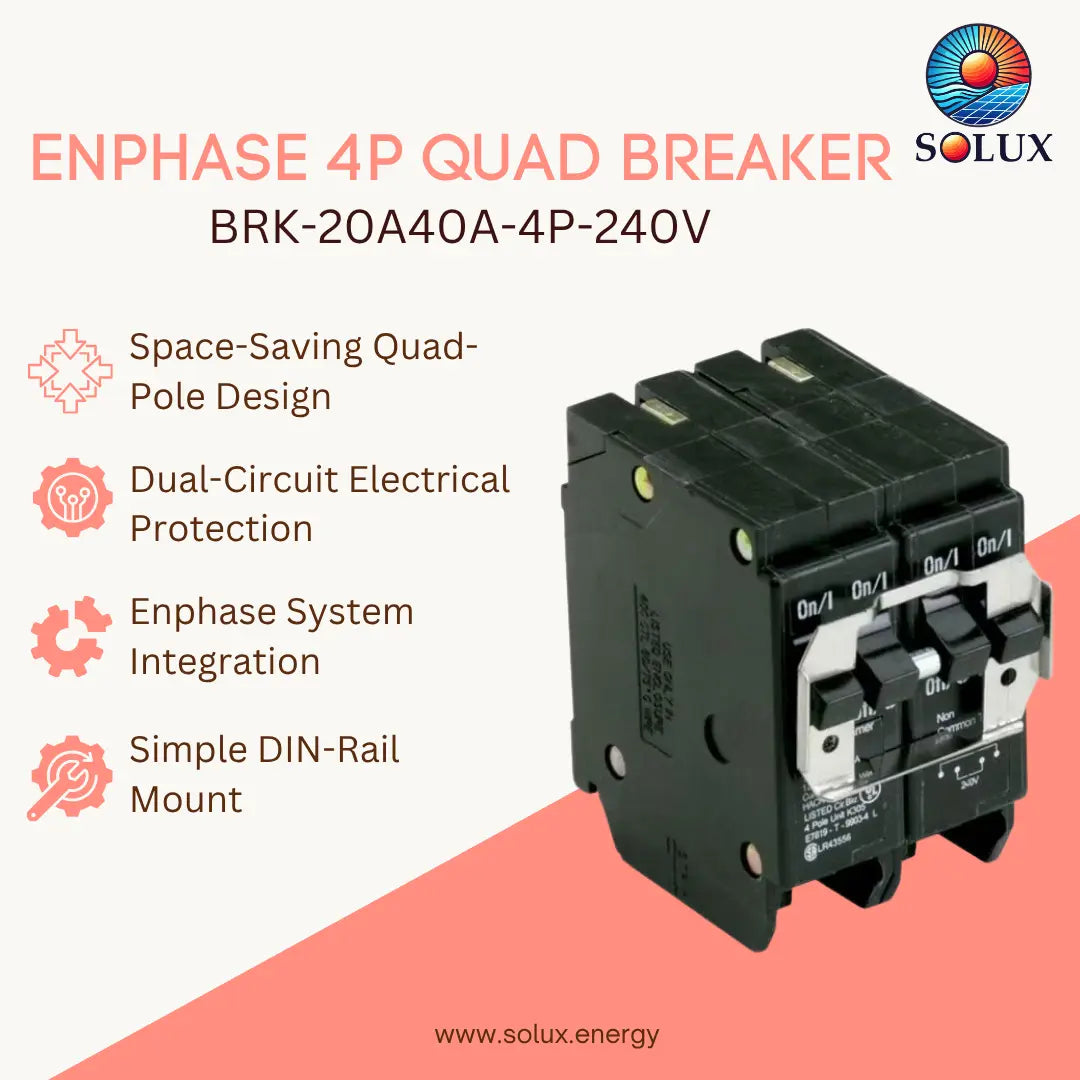

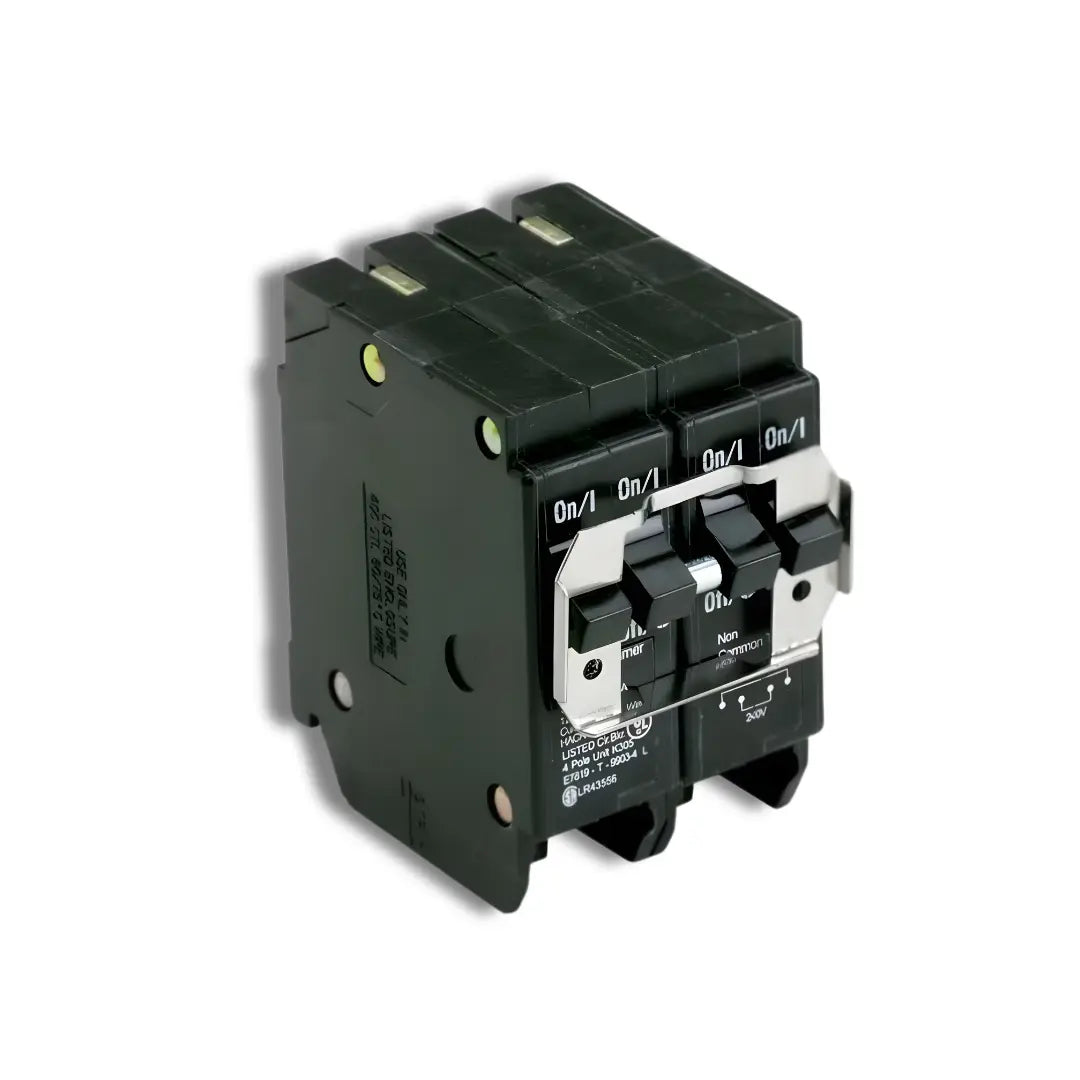

Enphase 20A/40A 4-Pole Quad Circuit Breaker (BRK-20A40A-4P-240V)
The Enphase BRK-20A40A-4P-240V Quad Circuit Breaker is a specialized 4-pole AC circuit protection module designed for seamless integration inside Enphase IQ Combiner boxes and IQ System Controllers. Combining a 20 A double-pole circuit and a 40 A double-pole circuit within a compact two-pole slot footprint, it maximizes panel space while delivering reliable overcurrent protection for solar PV branches and battery storage circuits.
Engineered for 240 VAC split-phase residential solar applications, this UL-listed quad breaker enables clean, code-compliant AC power distribution without requiring oversized electrical subpanels.
Key Specifications:
- Manufacturer Part Number: BRK-20A40A-4P-240V
- Type: Combiner
- Approvals: UL
- Max Current: 40 A
- Actuator Type: Toggle 2 Pole
- Input Current: 40 A
- Mounting Type: DIN Rail
- AC Voltages: 240 VAC
- Shipping Weight: 0.90 lb
- Shipping Dimensions (HxWxD): 8 x 6 x 3 in
-
Resources
Datasheet
No datasheet file resource available. Email support@solux.energy for file request.
Quick Installation Guide
No Installation guide available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
