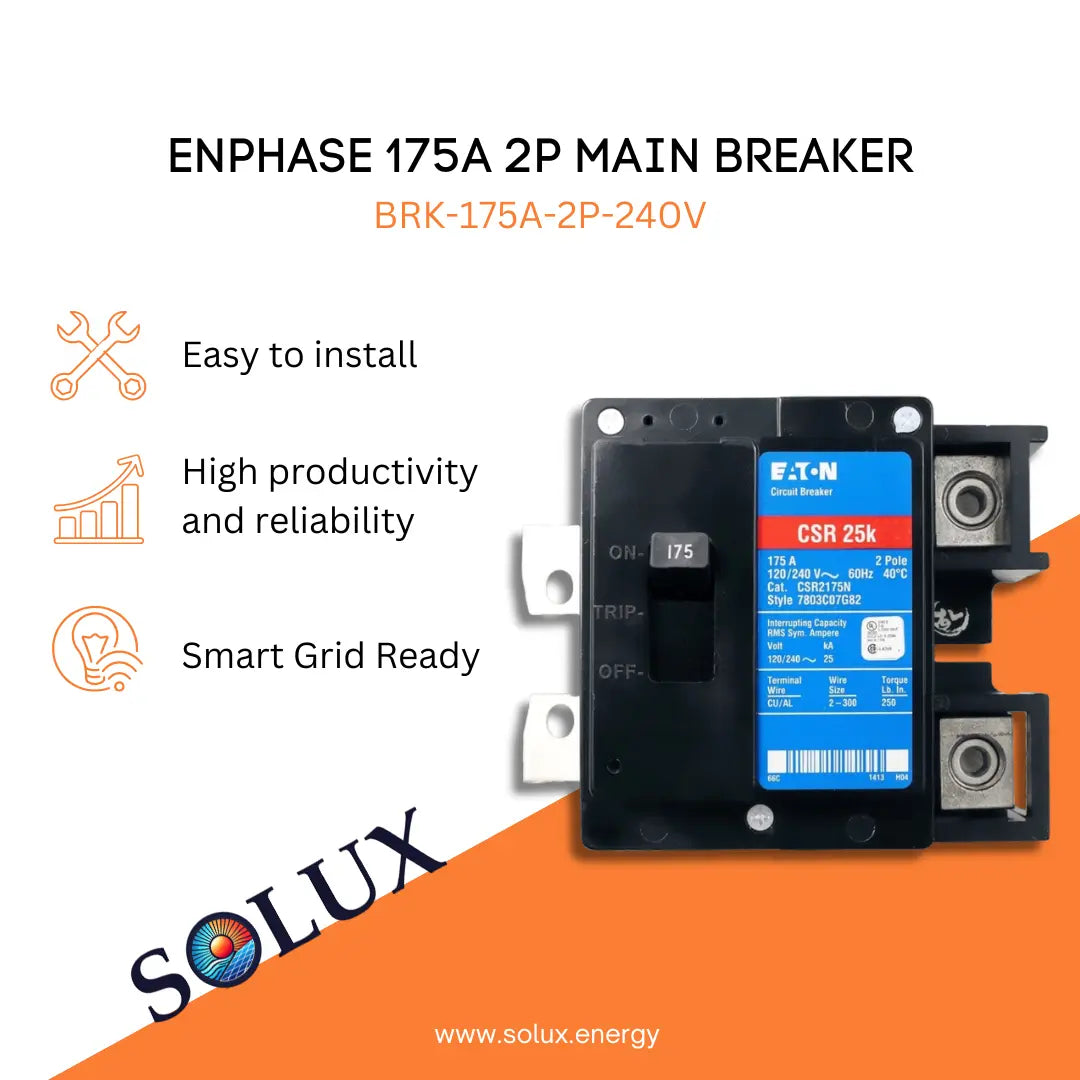

  • Enphase 175a Main Breaker 2p BRK-175A-2P-240V graphic: Easy to install, reliable, and Smart Grid Ready

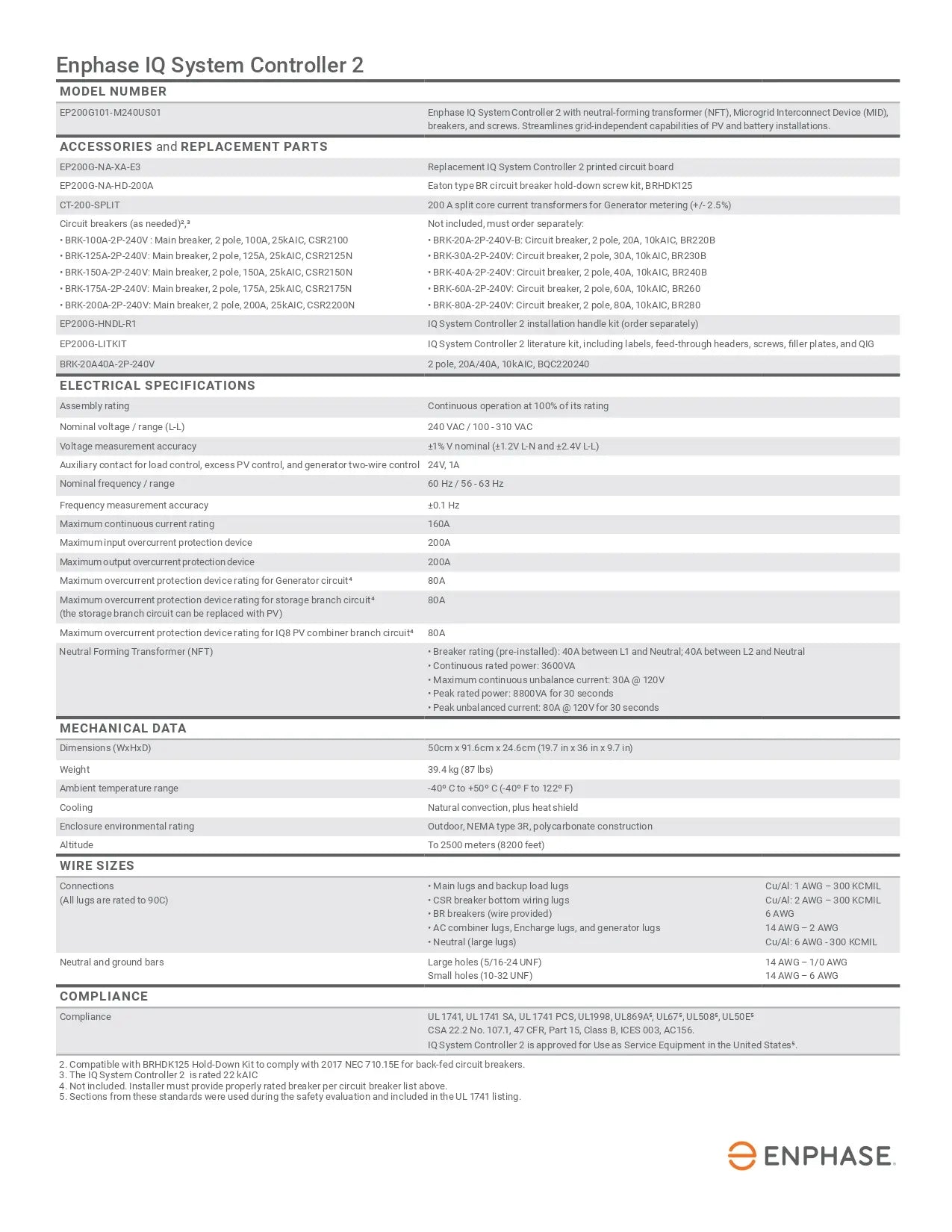

  • Datasheet for BRK-175A-2P-240V enphase 175a 2p main breaker, detailing specs for the IQ System Controller 2
  • Product Image 2-pole Eaton CSR main breaker with a 25 kAIC rating on a white background.
1 3

Enphase BRK-175A-2P-240V 175A 2P Main Breaker

$210.97 USD
$210.97 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

The BRK-175A-2P-240V is a two-pole (2P) molded-case circuit breaker commonly used in electrical distribution systems, especially in solar or main service panels. It is designed to protect circuits from overloads and short circuits while handling relatively high current loads (175 amps).

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

IronRidge

  • Description

    Enphase 175A 2P Main Breaker

    The Enphase BRK‑175A‑2P‑240V is a 175 amp, two‑pole main circuit breaker designed for use in Enphase IQ Combiner and System Controller enclosures and compatible load‑centers. It provides reliable overcurrent protection for 240 VAC main feeds in renewable energy systems.

    Technical Specifications:

    • Max Current: 175 A
    • Ampere Interrupting Capacity: 25 kAIC
    • Poles: 2 Poles
    • Input Current: 175 A
    • Power Output: 475 Watts
    • Voltage Rating: 120/240 V AC
    • Interrupting Capacity: ~25 kAIC (short-circuit rating)
    • Shipping Weight: 3.0 lb
    • Shipping Dimensions: 6 x 3 x 3 in

  • Resources

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    No Quick Installation guide available. Email support@solux.energy for file request.

    Warranty

    No Warranty file resource available. Email support@solux.energy for file request.


Download Spec Sheet

Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
