Description

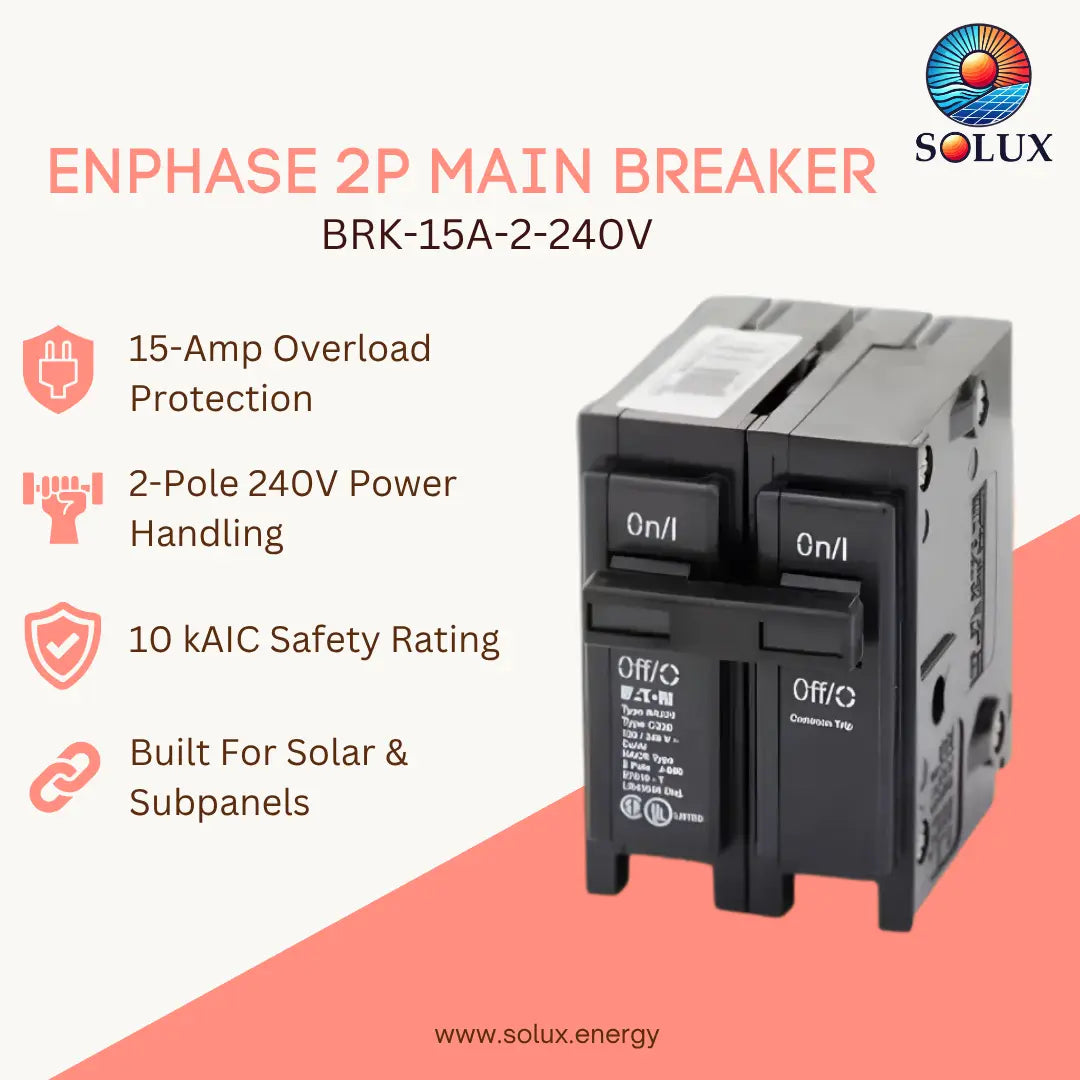

Enphase 15A 2-Pole 120/240V Circuit Breaker (BRK-15A-2-240V)
The Enphase BRK-15A-2-240V Circuit Breaker is a two-pole AC overcurrent protection module engineered for integration within Enphase IQ Combiner boxes, AC subpanels, and solar distribution centers. Providing a continuous 15 A current rating across 120/240 VAC split-phase lines, it offers dependable branch circuit protection for lower-ampere microinverter strings, energy storage circuits, or dedicated system loads.
With a 10 kAIC short-circuit interrupting capacity, this UL-listed breaker safeguards solar hardware and system wiring against thermal overloads and electrical faults.
Technical Specifications:
- Max Current:15 A
- AC Voltages: 120/240 VAC
- Ampere Interrupting Capacity: 10 kAIC
- Mounting Type: Bracket
- DC Voltage: 24-48 VDC
- Input Current: 15 A
- Approvals: UL
- Shipping Weight: 0.6 lb
- Shipping Dimensions: 4.3 × 2.4 × 3.8 in
-
