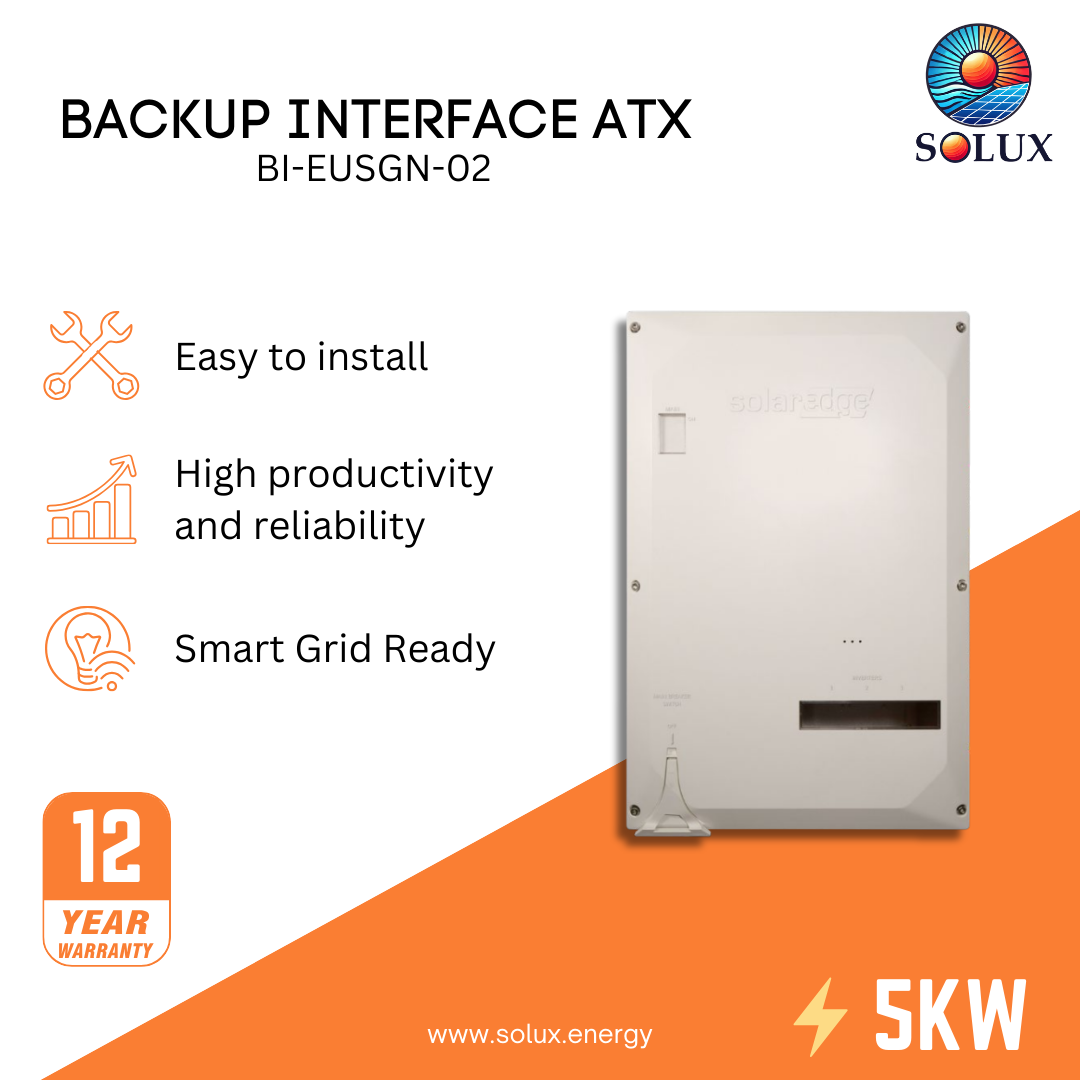

SolarEdge Backup Interface 5kw ATX Service Side Connection

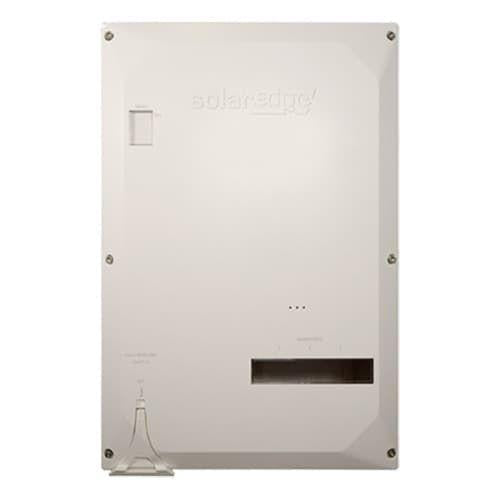

SolarEdge, BI-EUSGN-02, Home Backup Interface

Automatically provides backup power to home loads in the event of grid interruption
Full flexibility in which loads to backup - the entire home or selected loads
Scalable solution to support higher power & higher capacity
Built-in Auto Transformer and Energy Meter for easier and faster installation
Seamless integration with the Energy Hub Inverter with Prism Technology to manage and monitor both PV generation and energy storage
Generator connection support

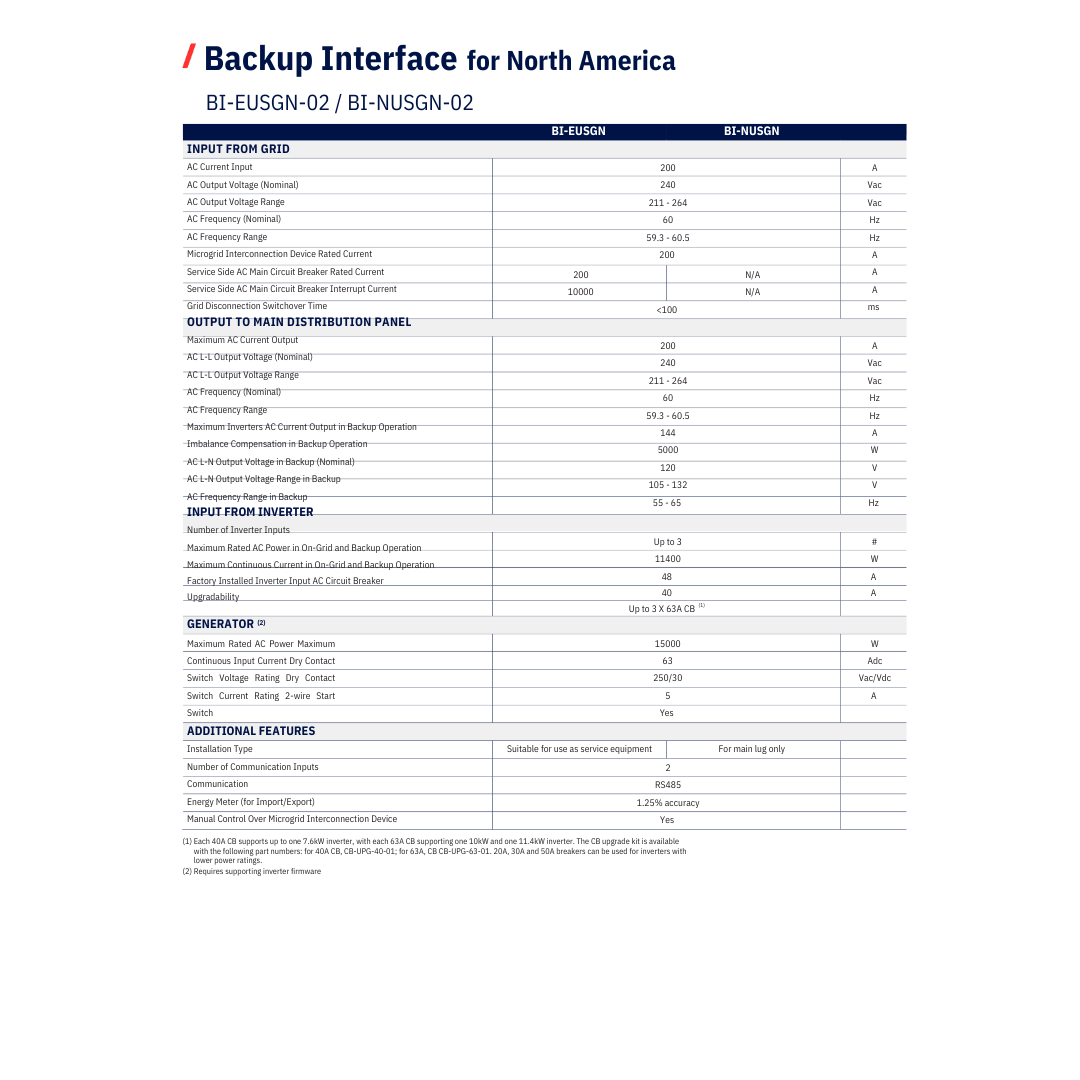

Technical Specifications

• AC Current Input: 200 A
• AC Output Voltage (Nominal): 240 Vac
• AC Output Voltage Range: 211 - 264 Vac
• AC Frequency (Nominal): 60 Hz
• AC Frequency Range: 59.3 - 60.5 Hz
• Microgrid Interconnection Device Rated Current: 200 A
• Maximum AC Current Output: 200 A
• AC L-L Output Voltage (Nominal): 240 Vac
• AC L-L Output Voltage Range: 211 - 264 Vac
• AC Frequency (Nominal): 60 Hz
• AC Frequency Range: 59.3 - 60.5 Hz
• Weight: 73lb / 33kg
