IronRidge BHW-M1-01-A1 Microinverter Bonding Hardware, T-Bolt

$2.85 USD
$2.85 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Integrated Equipment Grounding: Certified to UL 2703 standards. Features specialized bonding geometry with sharp stainless steel teeth that pierce anodized coatings to automatically bond MLPE devices (such as Enphase microinverters or SolarEdge power optimizers) directly to the aluminum rail profile.
✔️ Eliminates Separate Grounding Wires: By providing direct electrical bonding through the rail, this hardware removes the requirement for additional copper jumper wires, grounding lugs, or separate grounding clips for MLPE units.
✔️ Drop-In T-Bolt Installation: Drops into the top slot of any IronRidge XR rail at any point along the row, allowing quick single-wrench attachment without sliding hardware in from the rail ends.
✔️ Single-Tool Standardization: Uses standard 7/16" socket dimensions matching other IronRidge hardware, enabling installers to complete racking, panel, and MLPE installations using a single driver size.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Ironridge

  • Description

    IronRidge Microinverter Bonding Hardware, T-Bolt (BHW-M1-01-A1)

    The IronRidge Microinverter Bonding Hardware (MPN: BHW-M1-01-A1) attaches and bonds compatible microinverters and power optimizers directly to IronRidge racking rails. Built for the UFO Series, this kit provides a certified electrical ground path under UL 2703 standards without requiring extra bonding jumpers.

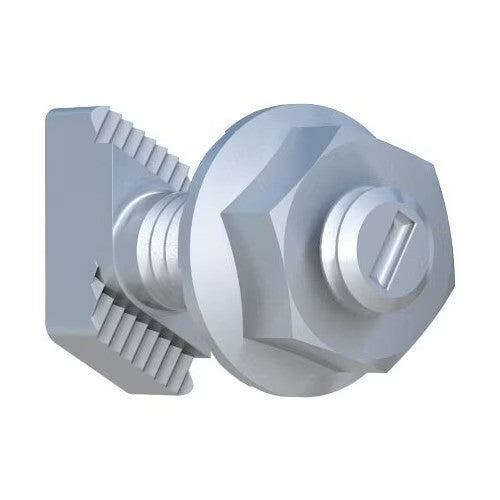

    Each kit includes a 1/4"-20 x 0.75" 300-series stainless steel bonding T-bolt and a matching 1/4"-20 hex flange nut.

    • Safety - All components evaluated for superior structural performance. UL 2703 system eliminates separate module grounding components.
    • Efficiency - In most states, pre-stamped engineering letters are eligible. It's easy to develop, share, and price projects using online apps.
    • User Friendly - It's light and works with industry-standard attachments.

  • Resources

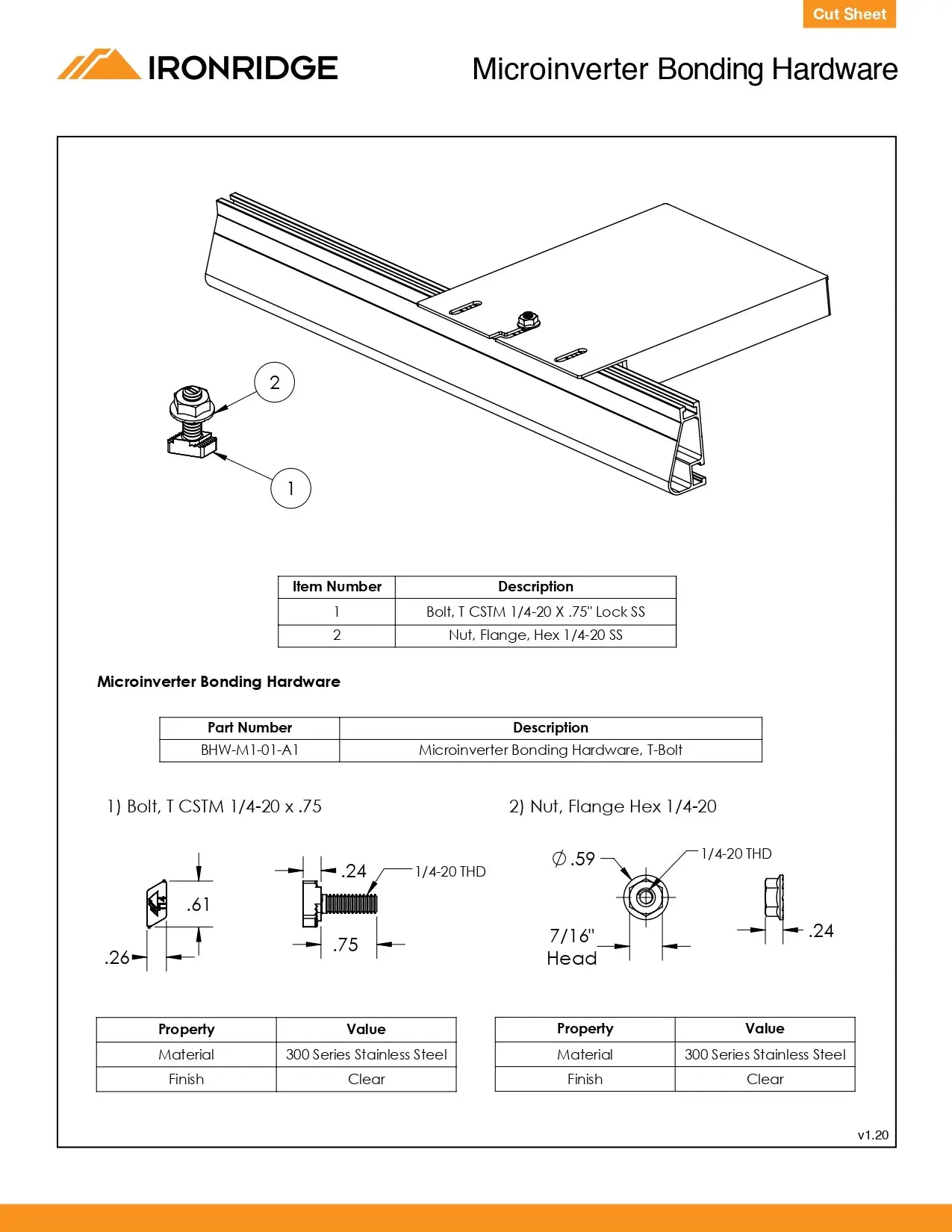

    Cut Sheet

    ✔️ Download Cut Sheet

    Quick Installation Guide

    ✔️ Download Installation Manual

    Warranty

    No warranty file resource available. Email support@solux.energy for file request.


Download Cut Sheet of IronRidge Microinverter Mounting Kit
