APSmart 417000 RSD Tool and Start Kit

APSmart 417000 RSD Tool and Start Kit

In a solar installation with rapid shutdown capability, modules or strings are often equipped with RSD units. These units typically respond to a control (or “heartbeat”) signal from a transmitter. The START KIT allows one to manually activate a specific string (bypassing or simulating the signal) so that tests or measurements (like IV curve scanning) can be done individually.

Technical Specifications:

• Manufacturer Part Number: 417000
• Part Number: 417000

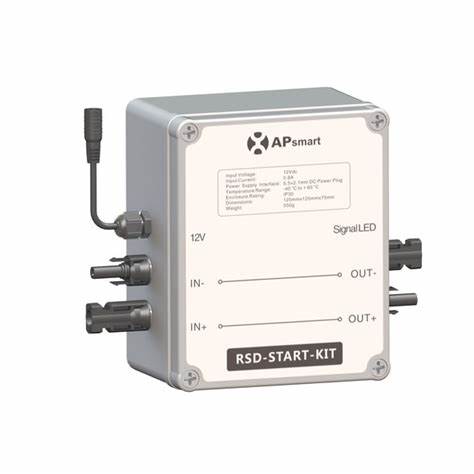

• Function: Interface device for IV curve testing of PV strings with APsmart RSD installed
• Input Operating Voltage: 2 V DC
• Input Operating Current: 0.8 A
• Power Supply Interface: 5.5 × 2.1 mm DC barrel plug
• Operating Ambient Temperature: –40 °C to +60 °C
• Enclosure Rating: IP30
• Dimensions (W × H × D): 125 mm × 125 mm × 75 mm
• Weight: 550 g
