Description

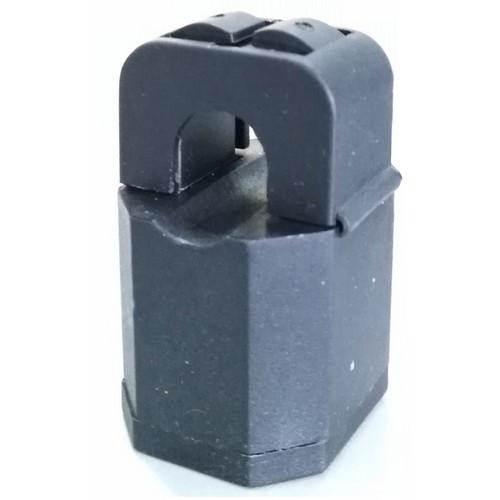

APsystems 18083020112 80A Current Transformer
The product code 18083020112 is an APsystems/APsmart 80A Current Transformer (CT), model SCT-T10. It is a monitoring accessory used in solar power systems to measure electrical current and provide energy consumption/production data to compatible APsystems monitoring devices such as the ECU series.
Technical Specifications
- Type: Current Transformer (CT) / Split-core sensor
- Current Rating: 80A AC
- Output: 26.6 mA
- Operating Temperature: -25°C to +50°C

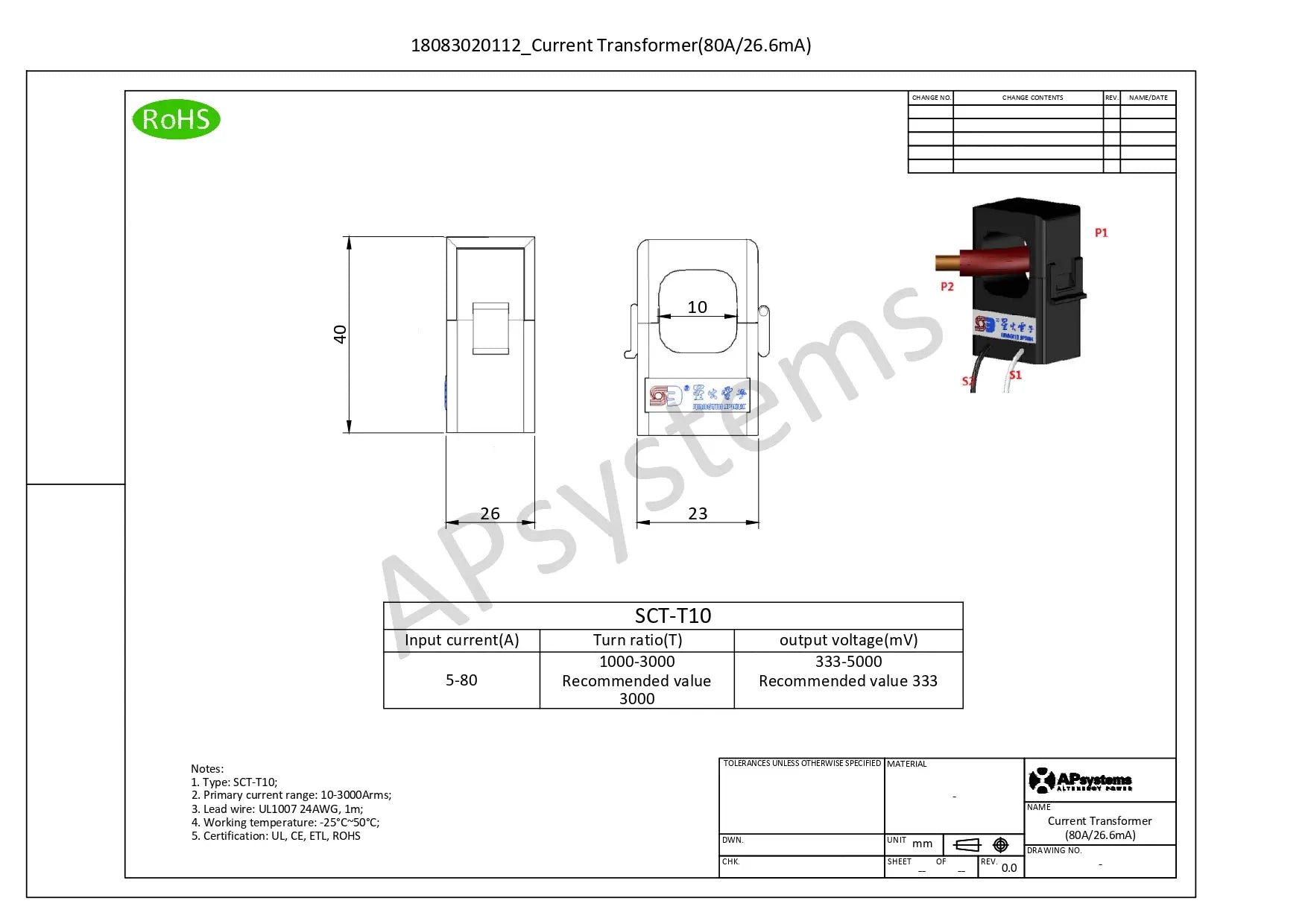

- Dimensions: 40 × 26 × 23 mm (1.57 × 1.02 × 0.91 in)
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation guide file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
