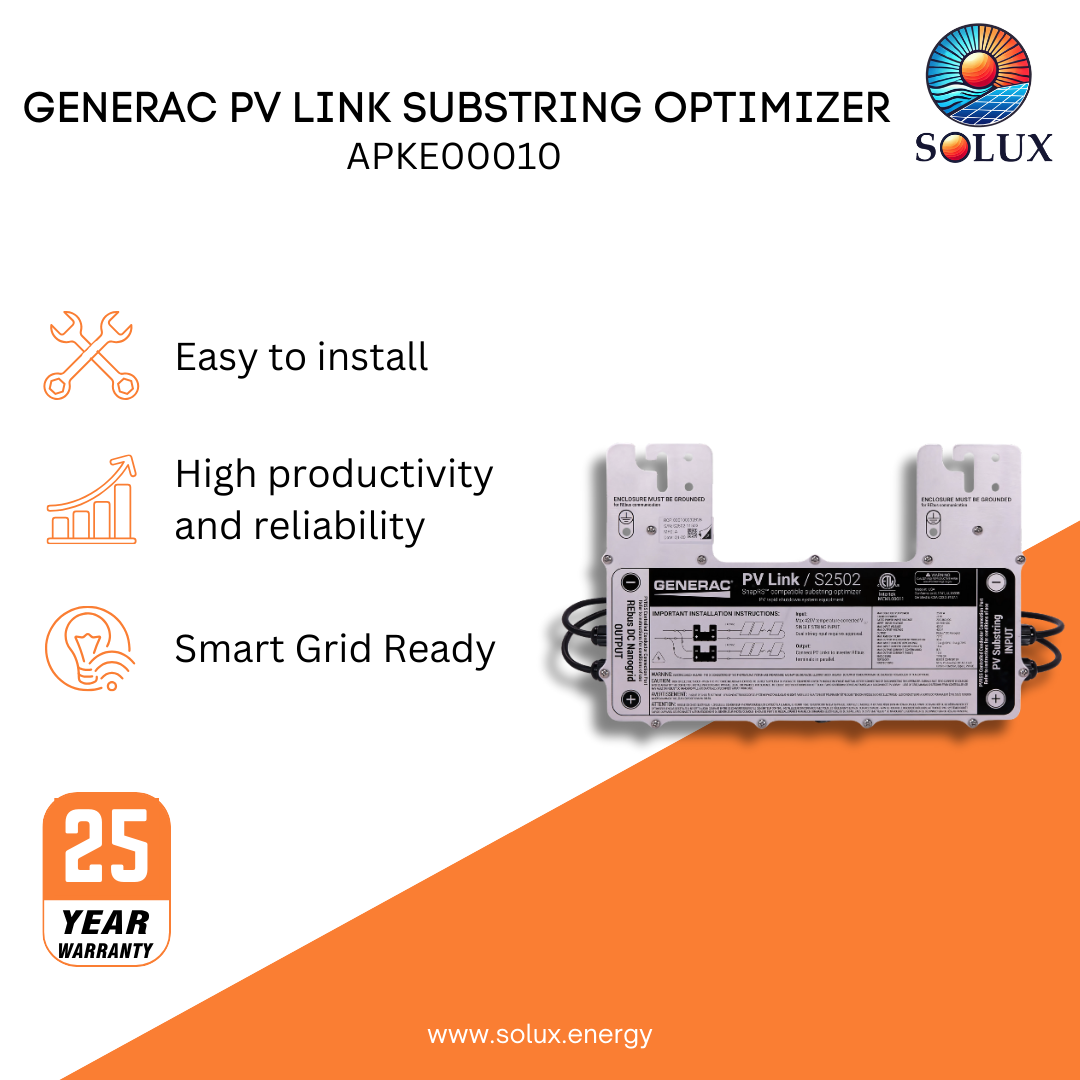

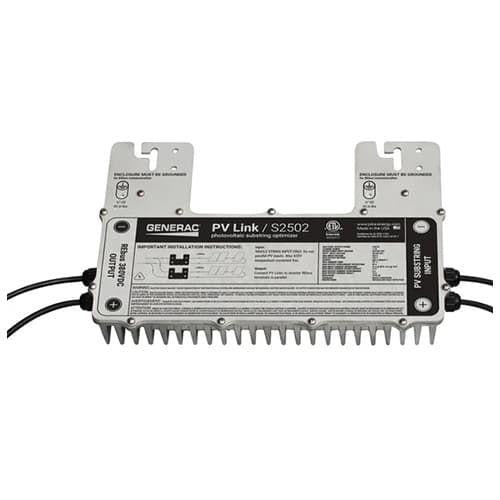

Generac APKE00010 PV Link - 2500W MPPT Substring Optimizer
The APKE00010 is a substring optimizer made by Generac under its PWRcell / PV Link line. It serves to boost the performance and safety of solar PV systems by optimizing power output from a group (substring) of solar panels.

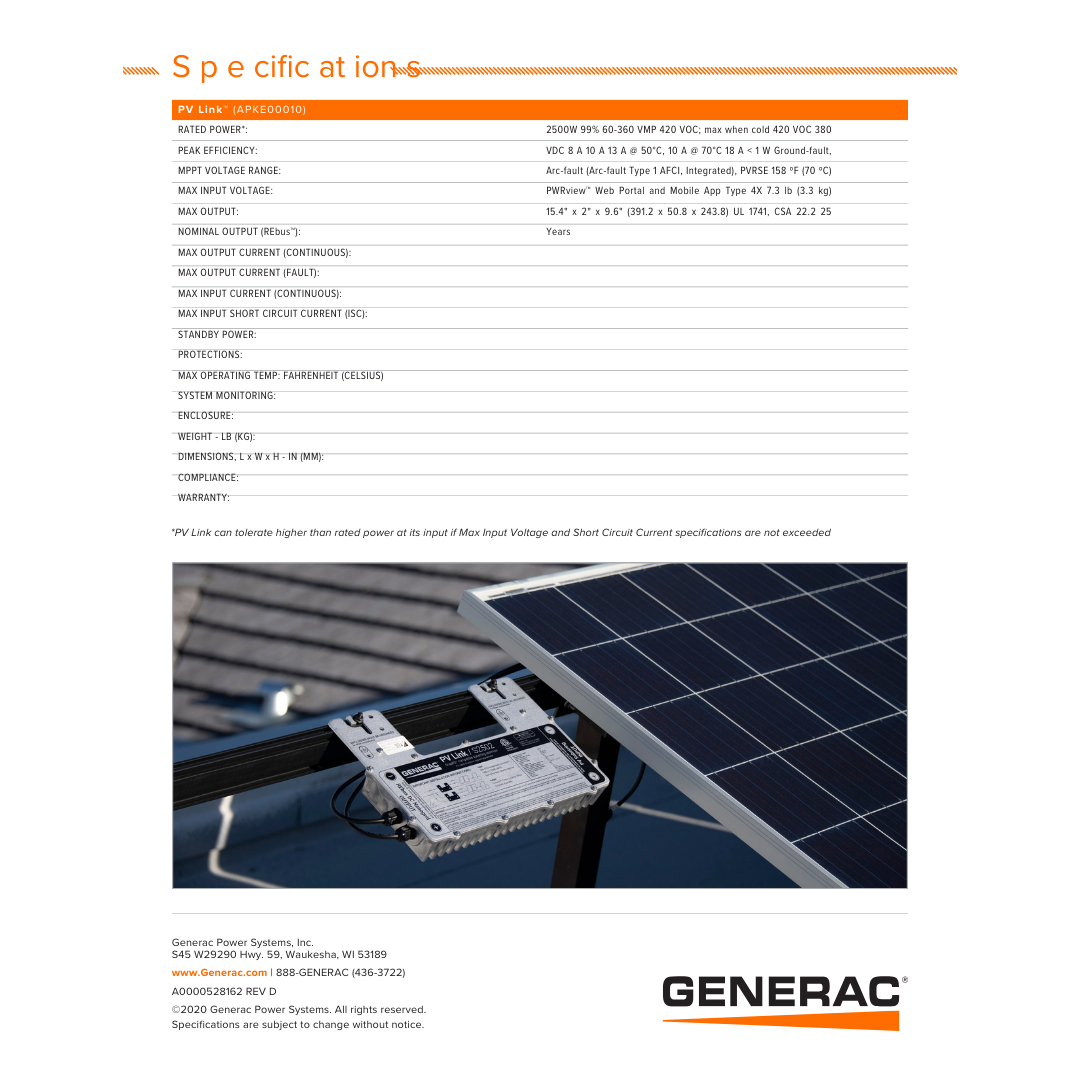

Technical Specifications:
- Rated Power: 2500 W
- MPPT Voltage Range: 60 - 360 VMP
- Max Input Voltage (when cold): 420 VOC
- Nominal Output Voltage: 380 VDC
- Maximum Output Current: 8 A
- Max Short Circuit Current (ISC): 18 A
- Protections: Ground-fault, Arc-fault (Type 1 AFCI, Integrated)
- Peak Efficiency: 99%
- Maximum Operating Temperature: 70 C (158 F)
- Dimensions: 51 x 391 x 244 mm (2" x 15.4" x 9.6")
- Compliance: UL 1741, CSA 22.2
-
Downloads
Download Spec Sheet
