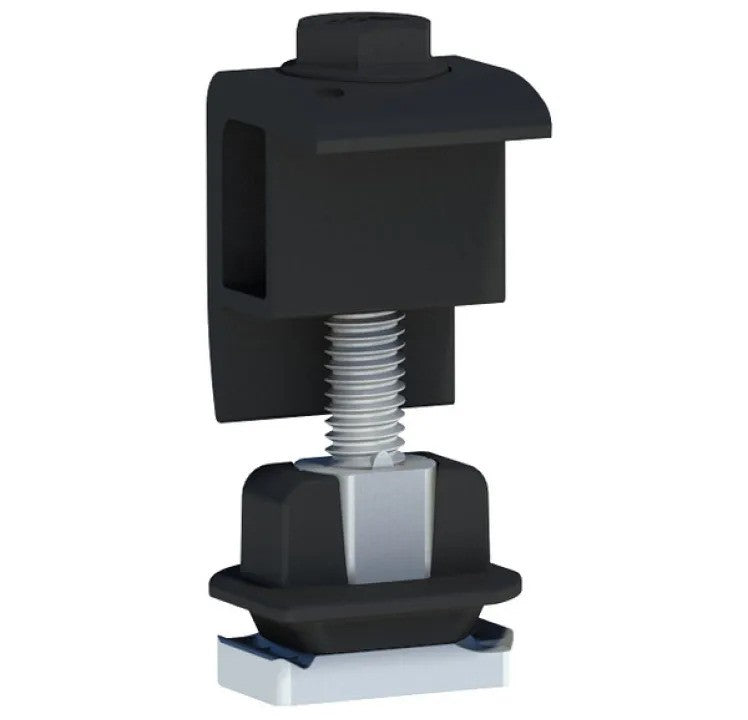

IronRidge AE-END-01-B1-US Black Aire Lock End - Domestic Content

$8.31 USD
$8.31 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Integrated Equipment Grounding: Certified to UL 2703 standards. Incorporates sharp bonding pins that pierce the anodized coating on module frame edges to automatically establish grounding continuity across the array.
✔️ Universal Frame Range: Works with module frames ranging from 30 mm to 40 mm thick, eliminating the need to stock multiple sizes of end clamps for different panel models.
✔️ Snaps Directly into Aire Rail: Drops into the top channel of IronRidge Aire (A1) rails from above, allowing rapid single-step tightening without sliding clamps in from the rail ends.
✔️ Sleek Perimeter Aesthetic: Dark black finish conceals hardware and sits flush against the outer module frame, providing a clean edge finish on dark-framed solar arrays.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Ironridge

  • Description

    IronRidge Aire Lock End, Black (30mm - 40mm) USA Made (AE-END-01-B1-US)

    Lock down the edges of your solar panel system with the IronRidge Aire Lock End (MPN: AE-END-01-B1-US). Standard end clamps can be tricky to adjust and take up extra time on the roof. This American-made clamp fixes that problem by fitting solar panel frames from 30mm to 40mm thick. It grips panels tightly and creates a clean black border in one quick step.

    Made specifically for the IronRidge Aire mounting system, this clamp speeds up your work and keeps solar panels safe in heavy wind or bad weather. Buy your supply today to get fast installations and reliable performance.

    Technical Specs:

    • Manufacturer Part #: AE-END-01-B1-US
    • Item Weight: 0.164 lb
    • Dimensions (LxWxH): 6.4 x 6.9 x 11.1 inches
    • Manufacturer Product Line: Aire

  • Resources

    Datasheet

    ✔️ Datasheet

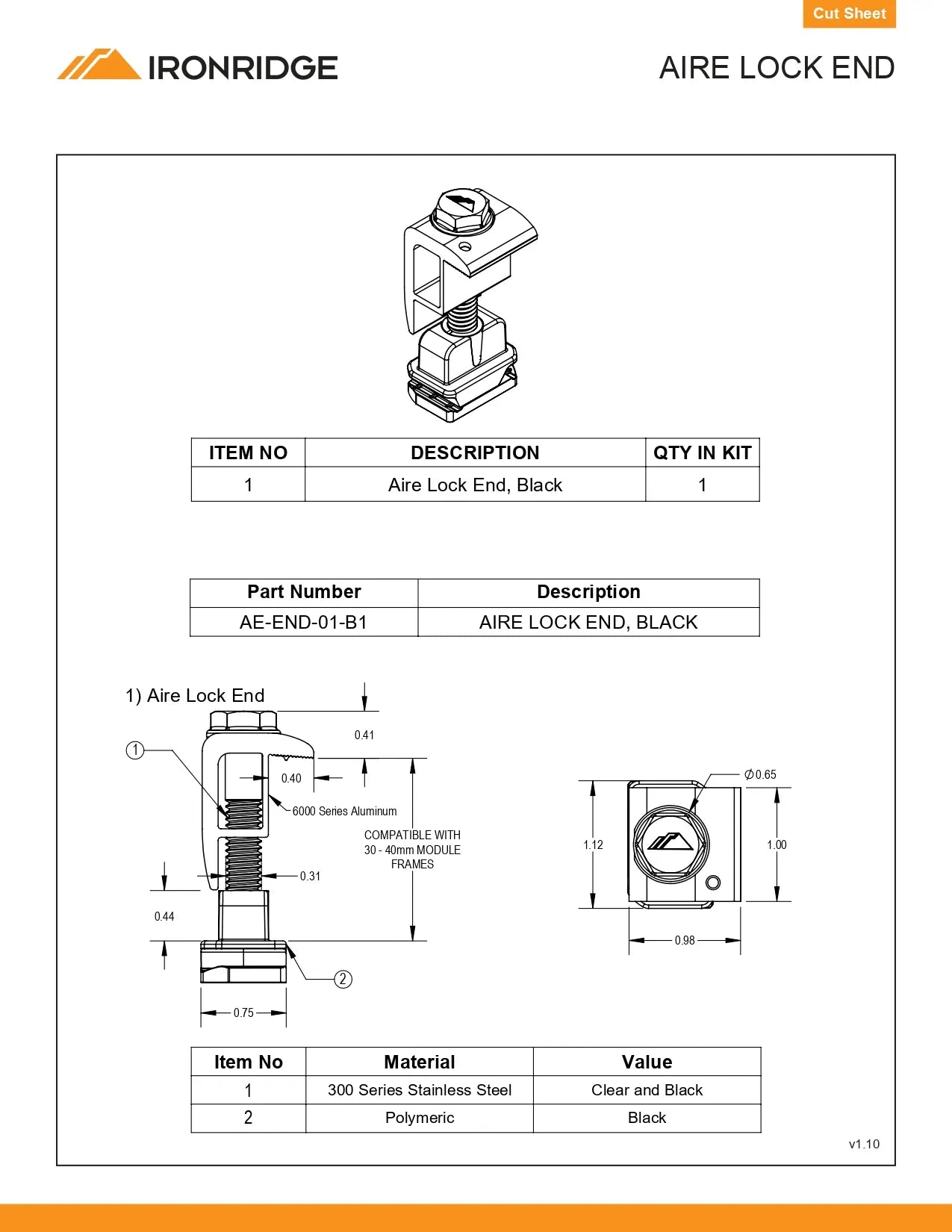

    Cut Sheet

    ✔️ Download Cut Sheet

    Warranty

    ✔️ 25-year warranty

Download Spec Sheet of IronRidge Domestic Aire Lock End
