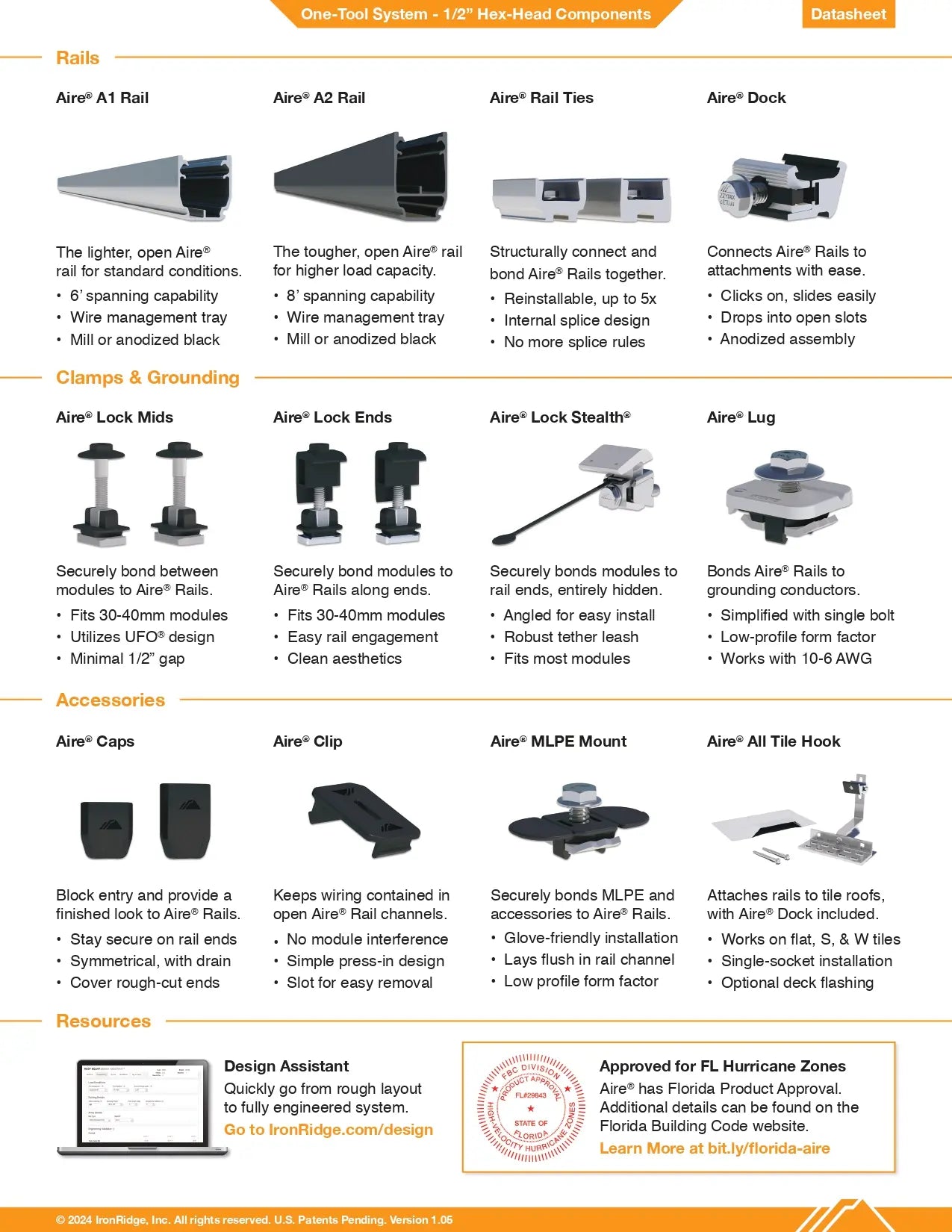

  • A technical datasheet page for the Airmo Rails One-Tool System, showing a comparison table of different rail types such as Airmo A1 Rail, Airmo A2 Rail, and Clamps & Grounding, with descriptions and compatibility information.

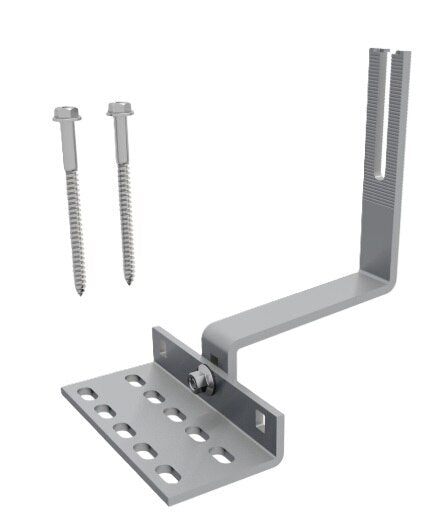

  • Ironridge AE-ATH-02-M1 a gray metal mounting bracket with two matching screws, shown on a plain white background.
1 3

IronRidge Aire AE-ATH-02-M1 All Tile Hook (2 Lags and Aire Dock)

$19.51 USD
$19.51 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Universal Tile Compatibility: Formed to fit under Flat, S-Tile, and W-Tile roof profiles without requiring tile cutting, grinding, or major tile modification.
✔️ Direct-to-Deck Structural Lag: Fastens directly into wood rafters through the roof deck using two included 5/16" x 4" stainless steel structural lag bolts.
✔️ Adjustable Arm & Base Geometry: Features slotted base and arm connections that allow post-installation side-to-side and vertical adjustments to align racking rails smoothly over uneven tile surfaces.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

IronRidge

  • Description

    IronRidge Aire All Tile Hook (AE-ATH-02-M1)

    The IronRidge Aire All Tile Hook (AE-ATH-02-M1) is a structural mounting attachment engineered specifically for tile roof solar installations. As part of the IronRidge Aire product line, this tile hook delivers a secure connection between roof rafters and solar racking assemblies.

    It simplifies rooftop assembly across flat, W-shaped, or S-shaped tile profiles while delivering long-term structural support and weather protection.

    Technical Specs

    • Manufacturer Part Number: AE-ATH-02-M1
    • Manufacturer Product Line: Aire
    • Item Weight: 2.025 lb
    • Dimensions (LxWxH): 6 x 4 x 3 inches

  • Resources

    Datasheet

    ✔️ Download Datasheet

    Cut Sheet

    ✔️ Download Cut Sheet

    Quick Install Guide

    ✔️ Download Install Guide


Download Spec Sheet of IronRidge Aire All Tile Hook
