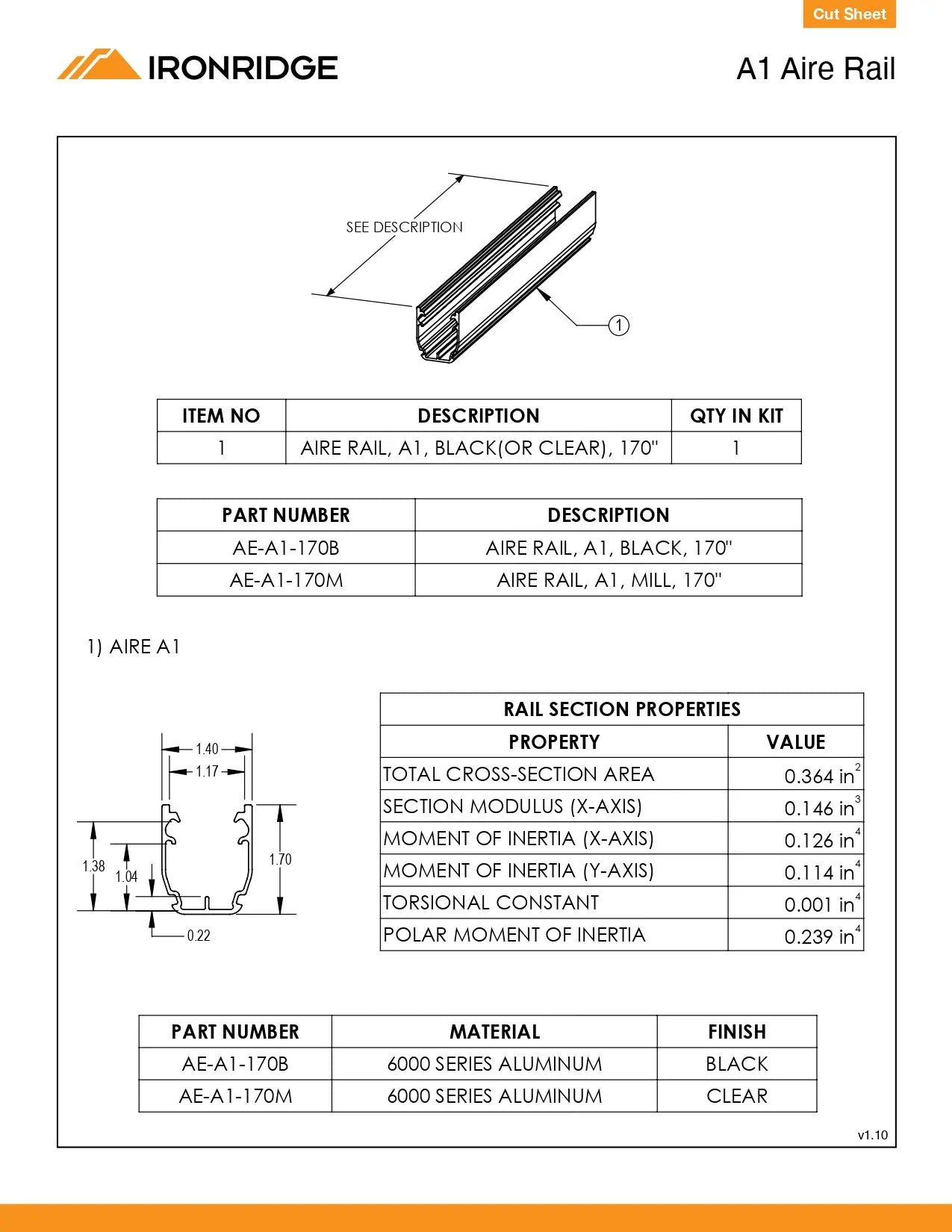

  • Technical specification sheet for the Ironridge A1 Aire Rail, showing a 3D line drawing, part number tables, and a cross-section dimension diagram with material and finish options.

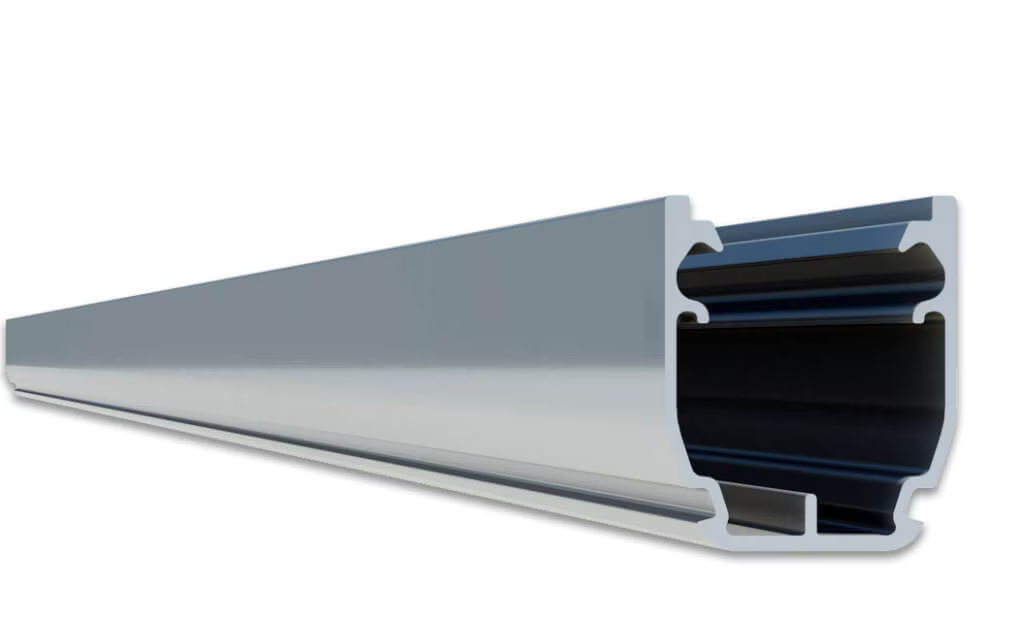

  • IronRidge AE-A1-170M-US a long, narrow aluminum extrusion profile with a hollow cross-section, shown in a side profile view on a white background.
1 3

IronRidge Aire AE-A1-170M-US A1 Domestic Rail 170" - Mill

$53.25 USD
$53.25 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ NEMA-Rated Cable Tray Channel: The open top/side channel of the Aire rail profile is certified as an NEC-compliant cable tray (NEMA VE 1 listed), eliminating the need for dedicated wire conduit trays across array rows.
✔️ Integrated Equipment Grounding: UL 2703 listed system profile that bonds solar panels, splices, and roof attachments directly through the rail substructure.
✔️ Optimized Structural Profile: Built from 6000-series structural aluminum, designed to accommodate standard residential 6-foot rafter spans while keeping total roof dead-load low.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details
IronrRidge

  • Description

    IronRidge Domestic Aire Rail A1, Mill, 170" (AE-A1-170M-US)

    The IronRidge Aire Rail A1 (AE-A1-170M-US) is a US-made, 170 inches structural mounting rail in a mill finish engineered for rooftop solar PV installations. As part of the IronRidge Aire product line, it provides structural support and mounting alignment for solar arrays.

    Manufactured with domestic content, this rail may qualify taxpayers for the Domestic Content Bonus Tax Credit under applicable IRS provisions for third-party owned (TPO) residential systems. It is covered by a 25-year manufacturer warranty.

    Technical Specs

    • Manufacturer Part Number: AE-A1-170M-US
    • Manufacturer Product Line: Aire
    • Item Weight: 6.36 lb
    • Dimensions (LxWxH): 170 x 18.8 x 16.2 inches

  • Resources

    Datasheet

    ✔️ Download Datasheet

    Cut Sheet

    ✔️ Download Cut Sheet

    Warranty

    ✔️ 25-year Warranty

Download Spec Sheet of IronRidge Domestic Aire Rail
