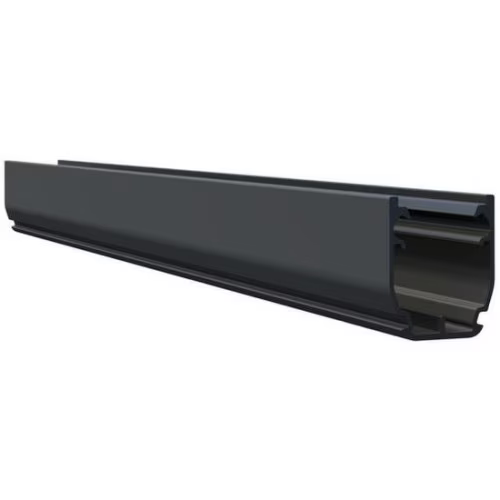

IronRidge Aire AE-A1-170B-US A1 Domestic Rail 170 - Black

$78.46 USD
$78.46 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Integrated Cable Tray Channel: Features an open top/side channel certified as an NEC-compliant cable tray (NEMA VE 1 listed), enabling direct wire management inside the rail profile without separate conduit trays.
✔️ Integrated Equipment Grounding: UL 2703 listed system profile that automatically bonds solar panels, splices, and roof attachments directly through the rail substructure.
✔️ Black Anodized Aesthetic: Designed with a sleek black finish to seamlessly blend in on all-black solar arrays, black module frames, and dark roof surfaces.
✔️ Optimized Structural Profile: Engineered from 6000-series structural aluminum to support standard residential 6-foot rafter spans while maintaining a low roof dead-load profile.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Ironridge

  • Description

    IronRidge Domestic Aire Rail A1, Black, 170" (AE-A1-170B-US)

    The IronRidge Domestic Aire Rail A1 Black (MPN: AE-A1-170B-US) is a US-made 170-inch structural mounting rail designed for residential rooftop solar arrays. Finished in matte black, it mounts behind dark PV modules to keep the system profile clean and low-visibility on pitched roofs.

    Manufactured in American facilities to satisfy Inflation Reduction Act (IRA) domestic manufacturing criteria, this rail helps qualify eligible solar installations for the 10% Domestic Content Bonus Tax Credit Adder. Every rail comes backed by IronRidge's 25-year structural warranty.

    Technical Specs

    • Manufacturer Part Number: AE-A1-170B-US
    • Manufacturer Product Line: Aire
    • Item Weight: 6.36 lb
    • Dimensions (LxWxH): 170 x 18.8 x 16.2 inches

  • Resources

    Datasheet

    ✔️ Download Datasheet

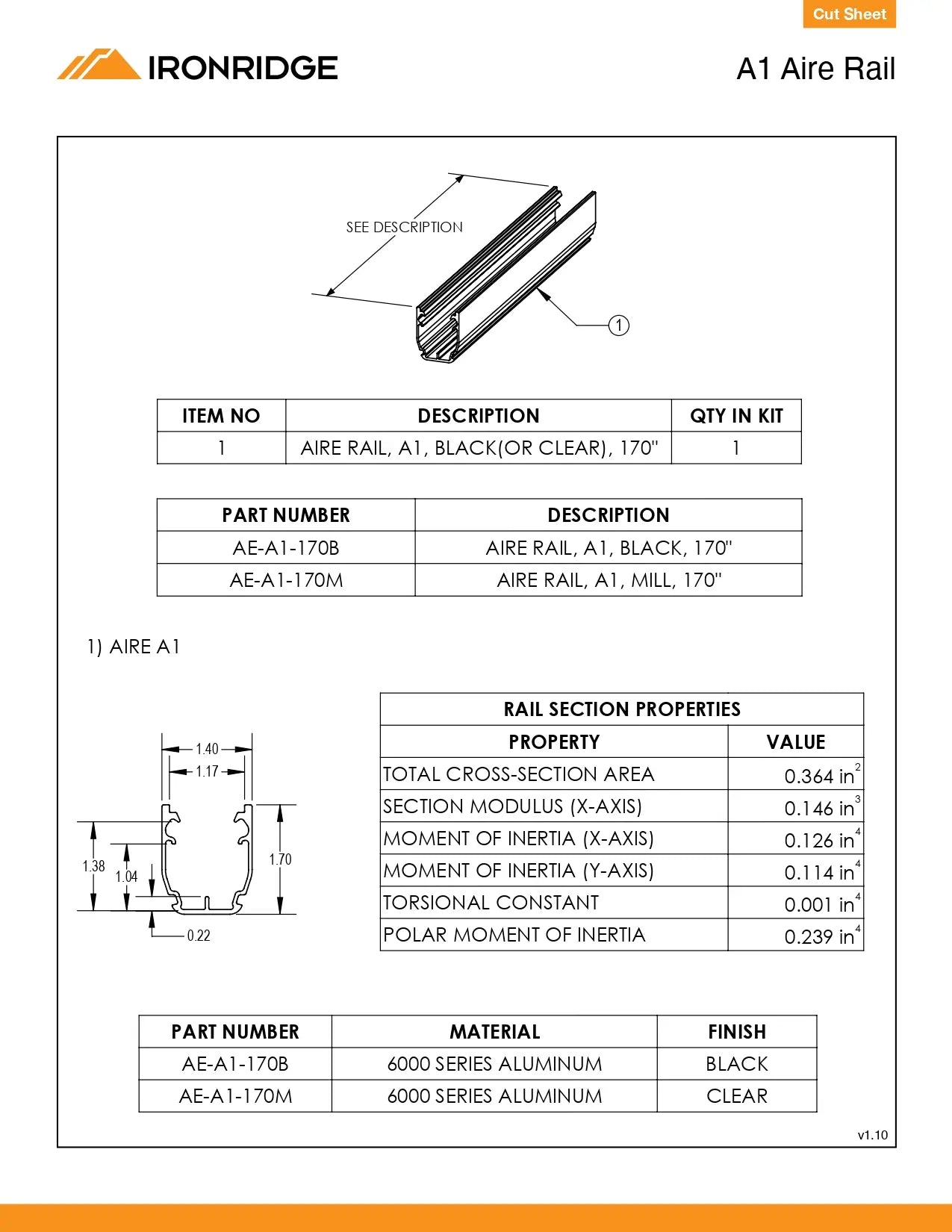

    Cut Sheet

    ✔️ Download Cut Sheet

    Warranty

    ✔️ 25-year Warranty

Download Spec Sheet of IronRidge Domestic Aire Rail
