Description

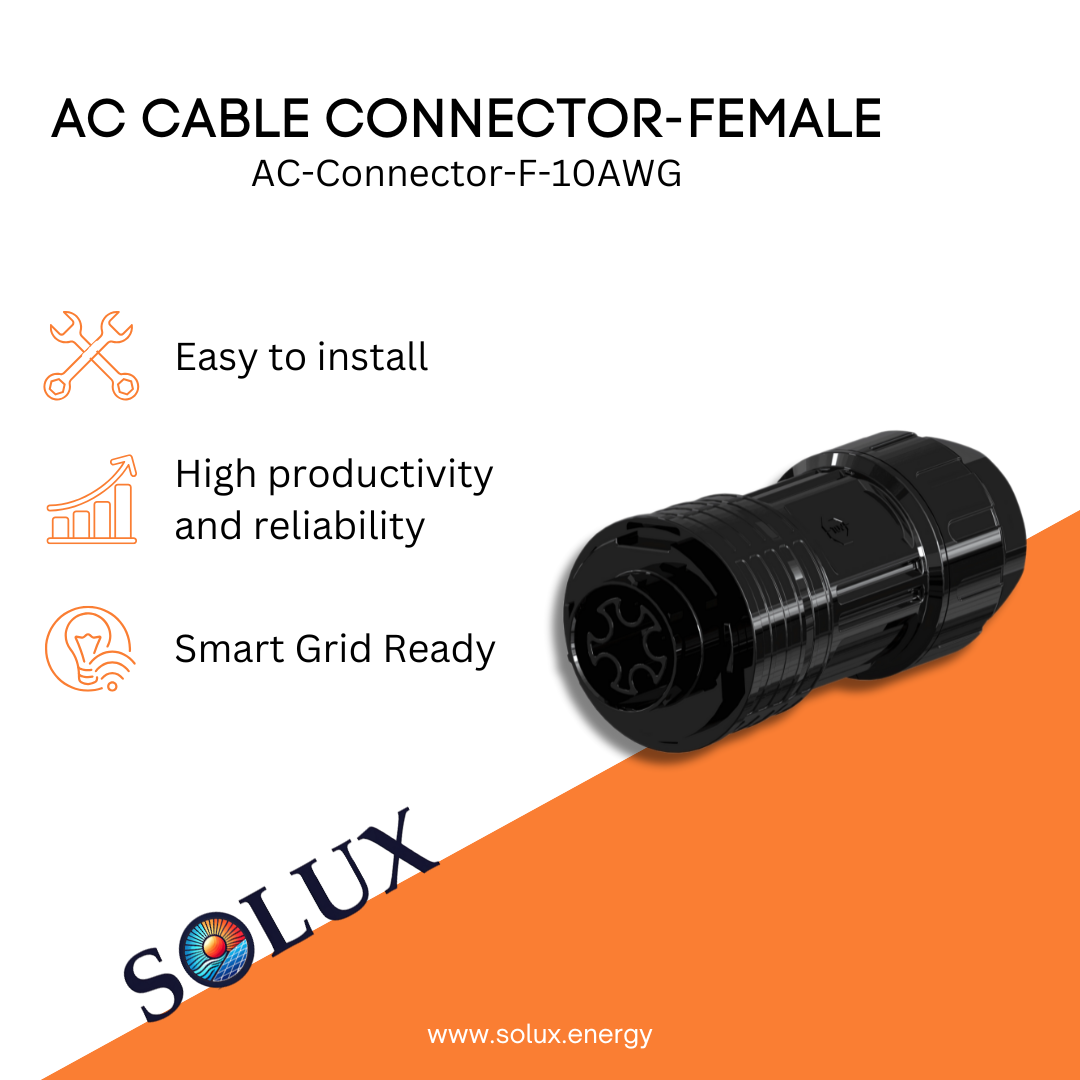

40A AC Female Connector (EN, 5 wire)
APsystems offers a range of accessories to ensure proper installation and function of our microinverter systems. See your installation manual or contact our technical support department to determine the proper, certified APsystems accessories for your application.

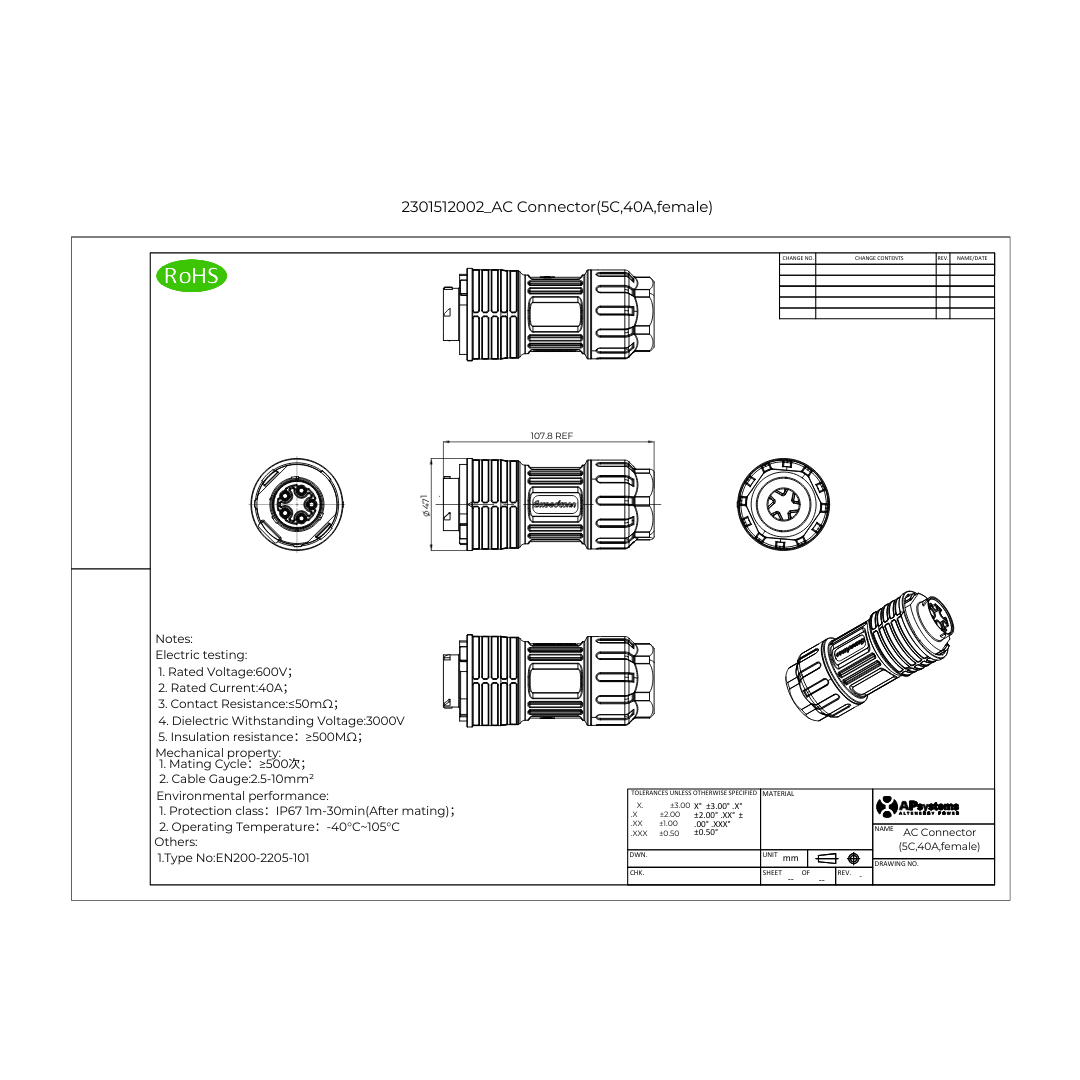

Technical Specifications:
- Rated Voltage: 600V
- Rated Current: 40A
- Contact Resistance: ≤50mΩ
- Dielectric Withstanding Voltage: 3000V
- Insulation resistance：≥500MΩ；
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
