Rolls Surrette 8-M-23P 8VDC 240Ah Deep Cycle Battery

Rolls Surrette Battery 8 M 23P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

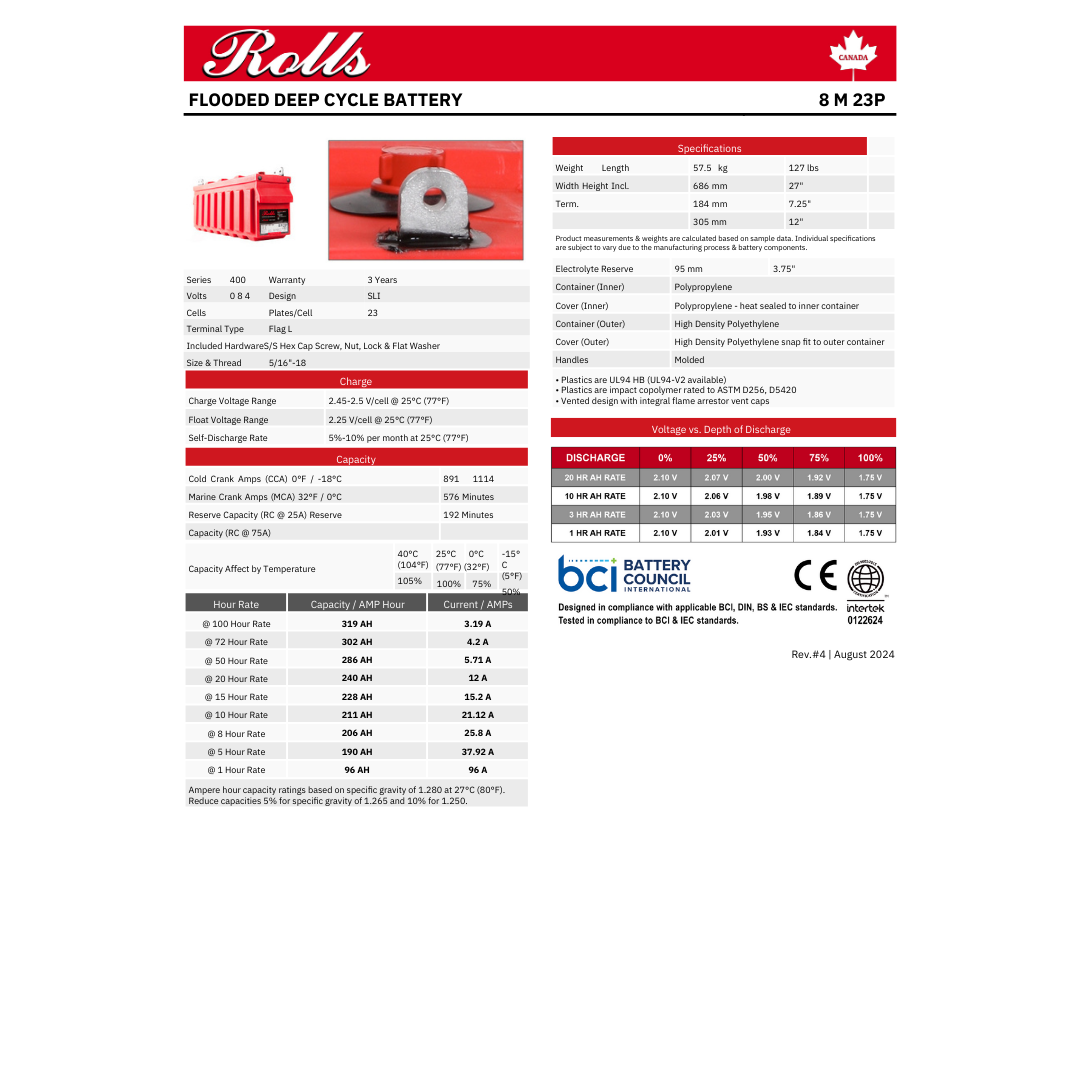

Technical Specifications:

• Weight: 57.5 kg / 127 lbs
• Length: 686 mm / 27"
• Width: 184 mm / 7.25"
• Height Incl. Term.: 305 mm / 12"
• Electrolyte Reserve: 95 mm / 3.75"
• Container (Inner): Polypropylene
• Cover (Inner): Polypropylene - heat sealed to inner container
• Container (Outer) High Density Polyethylene
• Cover (Outer): High Density Polyethylene snap fit to outer container
• Handles: Molded
• Series: 4000
• Volts: 8
• Design: SLI
• Cells: 4
• Plates/Cell : 23
• Terminal Type: Flag L
• Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
• Size & Thread: 5/16"-18
• Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
• Float Voltage Range 2.25 V/cell @ 25°C (77°F)
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 891
• Marine Crank Amps (MCA) 32°F / 0°C: 1114
• Reserve Capacity (RC @ 25A): 576 Minutes
• Reserve Capacity (RC @ 75A): 192 Minutes
• Capacity AMP @ 20 Hour Rate: 240 Ah
