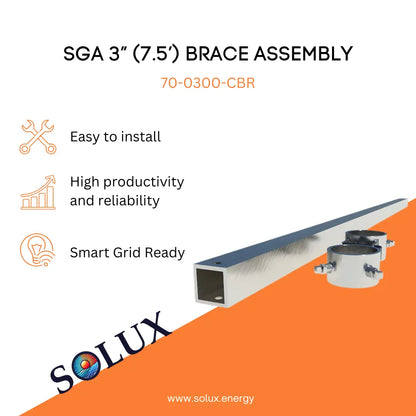

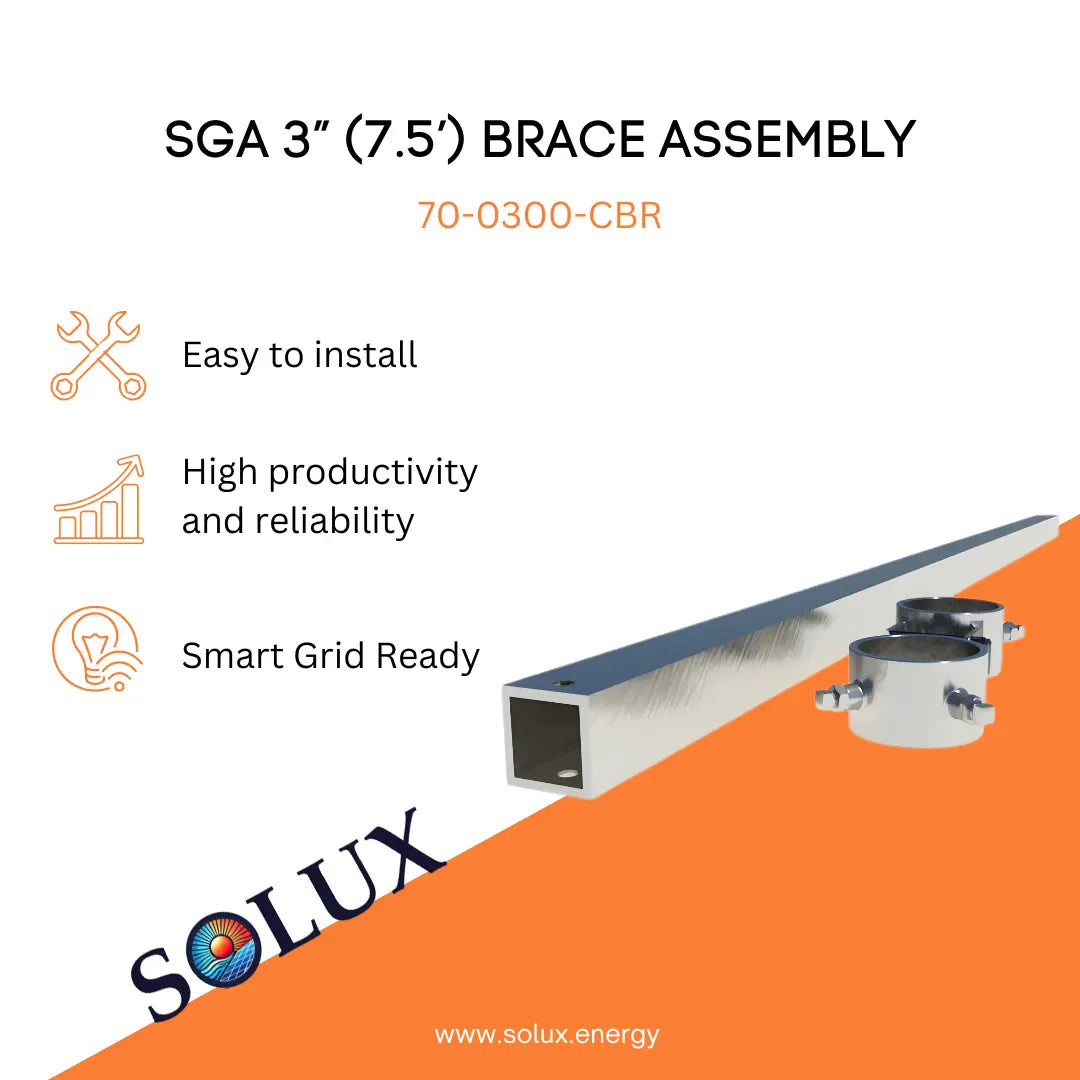

Ironridge SGA 3” (7.5’) Brace Assembly

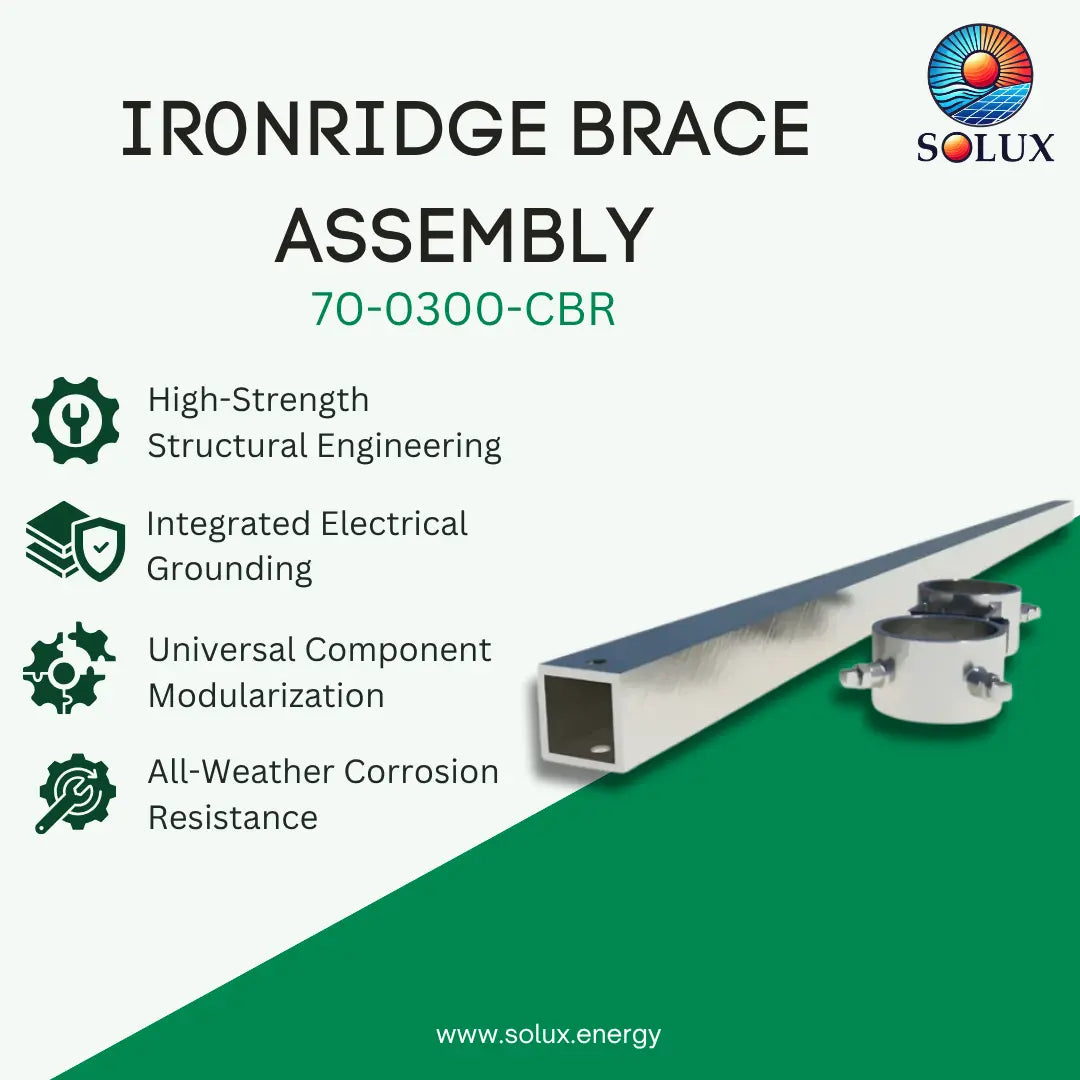

Ironridge 70-0305-CBR SGA 3" Brace Assembly

This optional assembly kit is for installations that require extra support. This diagonal brace kit includes the brace, sleeves, and hardware for installation between one north and south pair of support legs.

• Model/Type: 70-0300-CBR
• Finish: Mill
• Included Hardware: 1 × Square Brace Tube (CBR) + 2 × Pipe Brace Sleeves + 4 × 1/2-13 HDG Steel Jam Nuts + 4 × 1/2-13 × 1.5″ Cup Point Set Screws + 2 × 1/2-13 Galvanized Hex Bolts + 4 × 1/2″ Galvanized Flat Washers + 2 × 1/2″ Galvanized Lock (Spring) Washers + 2 × 1/2-13 Galvanized Hex Nuts
• Durable & Certified: The brace tube is made from 6061-T6 aluminum, which offers a strong strength-to-weight ratio and good resistance to corrosion in outdoor environments. Sleeves are galvanized steel, which helps protect against rust.
• Water Protection & Fit: The assembly is engineered for ground-mount solar arrays where support braces must withstand wind loads, weather exposure, and long-term structural stress. It’s intended to enhance overall system rigidity for larger spans or high-wind/snow load conditions.
