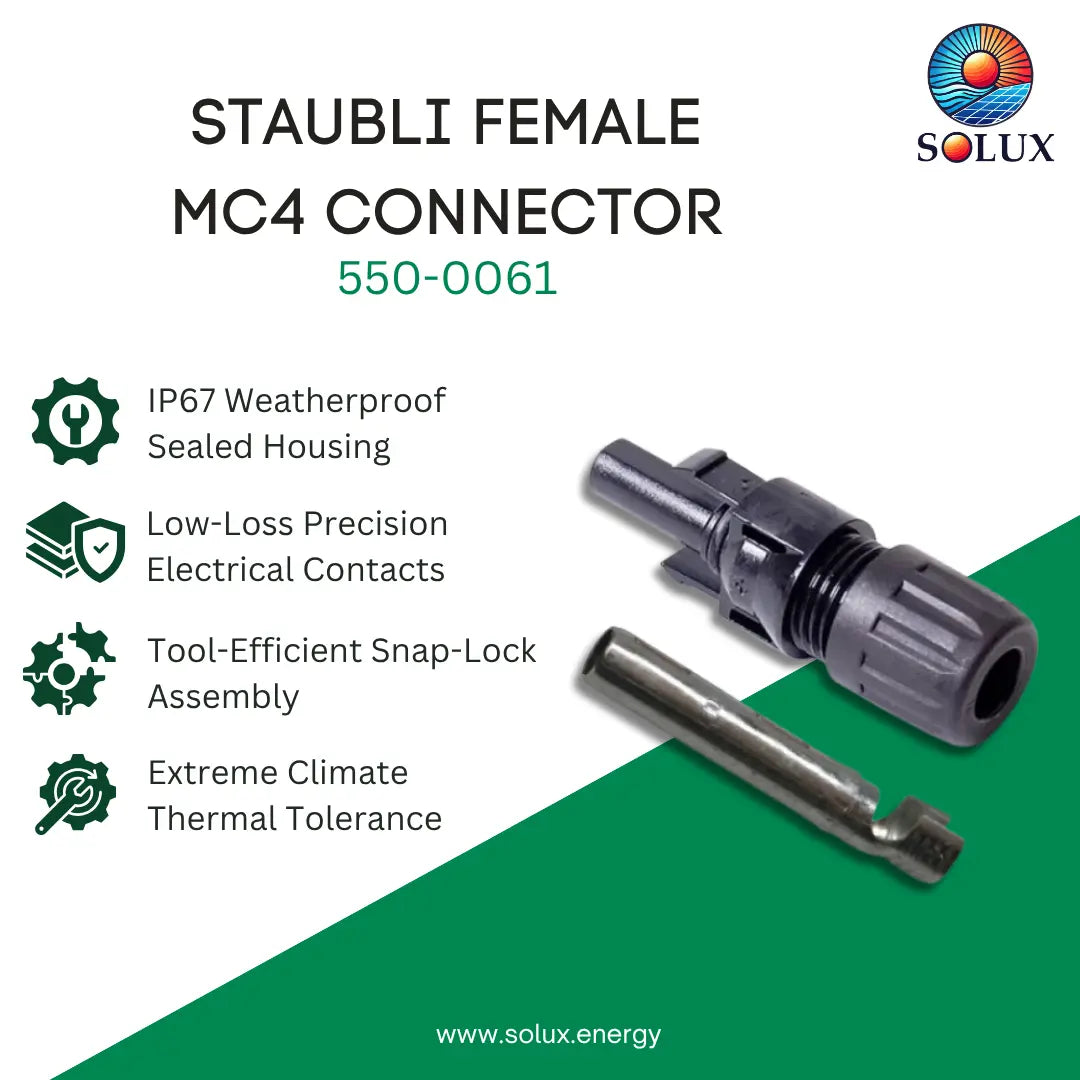

Staubli 550-0061 18-32.0016P0001-UR Female MC4 Connector

$2.33 USD
$2.33 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Industry Standard PV Interface: Stäubli’s original MC4 snap-in locking connector system used across solar modules, string wiring, home-run cables, and inverter DC inputs.
✔️ Wide Outer Diameter Sealing Gland: Accommodates standard PV wire insulation jacket thicknesses with an outer cable diameter range of 5.9 mm to 8.8 mm.
✔️ UL 6703 & IEC Certified: Engineered to meet rigid international safety standards for long-term electrical safety, weather tightness, and flame resistance (UL94-V0).
✔️ Integrated Snap-In Lock: Uses a locking mechanism that requires an MC4 disconnect tool to unlatch, satisfying National Electrical Code (NEC) locking requirements for accessible PV array DC circuits.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

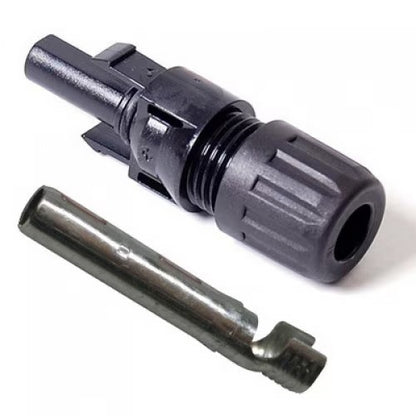

    Stäubli Female MC4 Connector 1500VDC

    The Stäubli Female MC4 Connector (18-32.0016P0001-UR) creates weather-resistant, low-resistance DC wiring connections in solar array strings. For custom MC4 extension wires, this is a single MC4 female connector with touch sleeve. The contact sleeves require an MC4 crimper for proper connection to #10 or #12 wire.

    Built with Stäubli’s MULTILAM contact technology, this female socket uses tin-plated copper contacts to lower power loss across connections. Its snap-in lock prevents accidental cable pulls, while the watertight boot keeps out rain, dirt, and UV degradation.

    • Manufacturer Part #: 18-32.0016P0001-UR
    • Item Weight: 0.05 lb
    • Dimensions (LxWxH): 2.28 x 0.7 x 0.7 inches

    • Resources

      Disclaimer:

      While we strive to keep our item documents up to date, manufacturers may update or revise these documents without prior notice. We recommend referring to the manufacturer’s latest documentation for the most current information.

      As of now, documentation for this product is not available from the manufacturer.
