Generac 5454 GenReady Advanced Load Center NEMA 3R

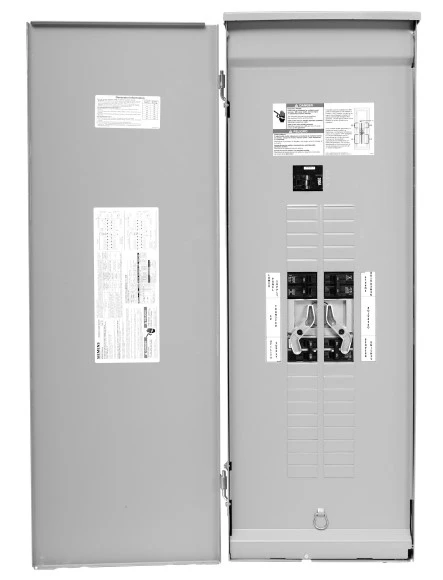

Generac GenReady Advanced Load Center NEMA 3R

The GenReady Basic Load Center simply replaces the home’s main load center. It looks like and replaces the functionality of a standard panel other than the fact the home is now prepared for the addition of a home standby generator. The GenReady Basic is installed without the EZ Transfer Operator and will save the home owner thousands in upgrade costs when a generator is eventually installed. It is rated to accept Siemens, Square D and GE breakers for the best flexibility, NEMA 3R rated enclosure.

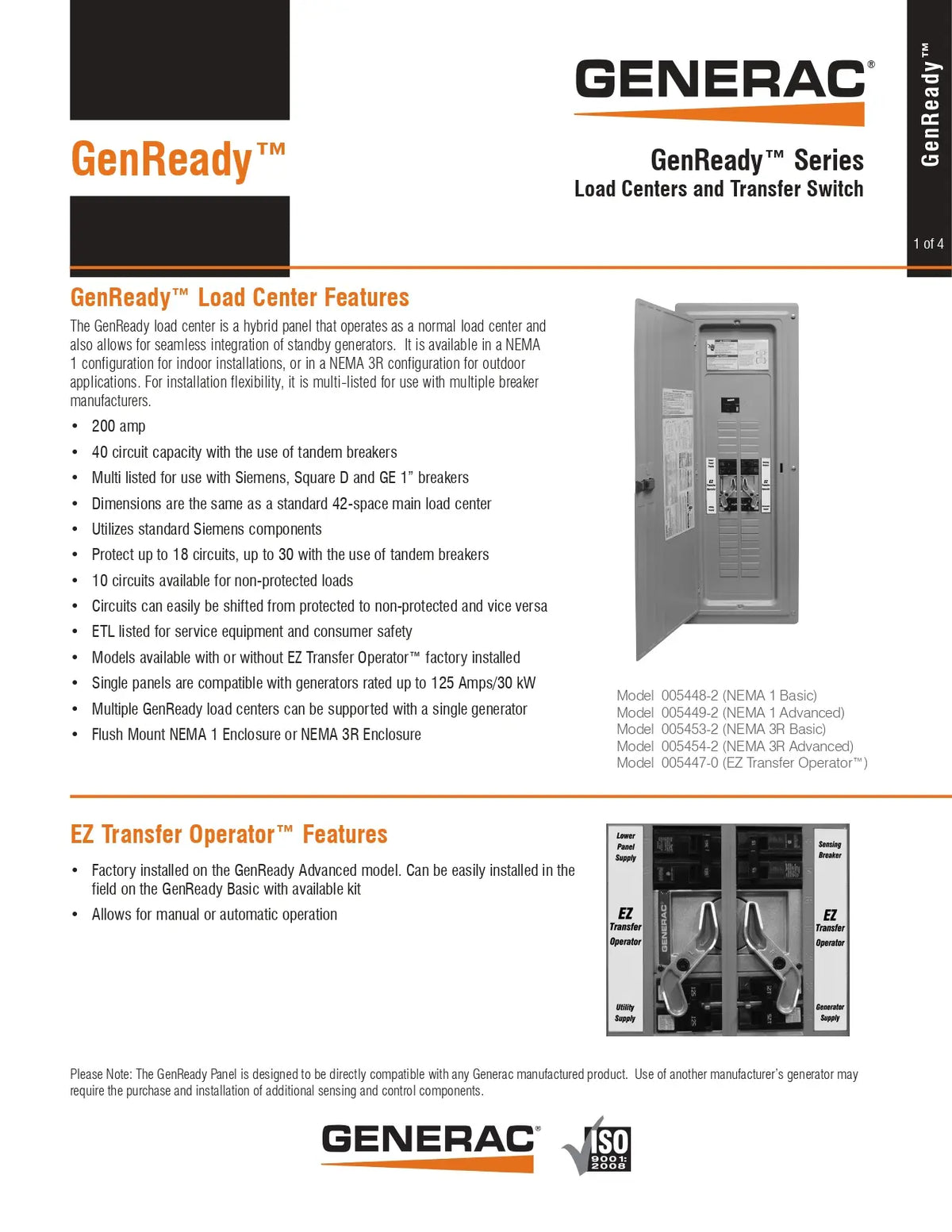

Specifications:

• Manufacturer: Generac
• Model: 5454
• Enclosure: NEMA Type 1, or NEMA 3R, galvanized G90 steel w/ polyester powder coat
• Main Breaker: 200 Amp
• Generator Switch: 125 Amp
• Main breaker wire size: # 1 to 300 mcm Cu-Al

• Generator switch wire size: # 2 to 1/0 Cu, 1/0-2/0 Al
• Neutral Lug: # 6 to 300 mcm
• Ground Lug: # 14- 2/0
• Protected circuits: 18/30
• Non-protected circuit: 0/NA
• Total circuits: 28/40
• Withstand rating Main bus (amps): 10,000
• Meets NEC wire bending space: Yes
• ETL listed: Yes
• Seismically qualified to meet UBC code: Yes

• Weight lb (kg): 49 (22.2)
• Dimensions H x W x D IN: 42" × 14.875" × 5"
• Warranty: 5-Year limited Warranty
