  • This is an image of Fronius Irradiance Sensor
  • 4300011189 solar radiation sensor
1 3

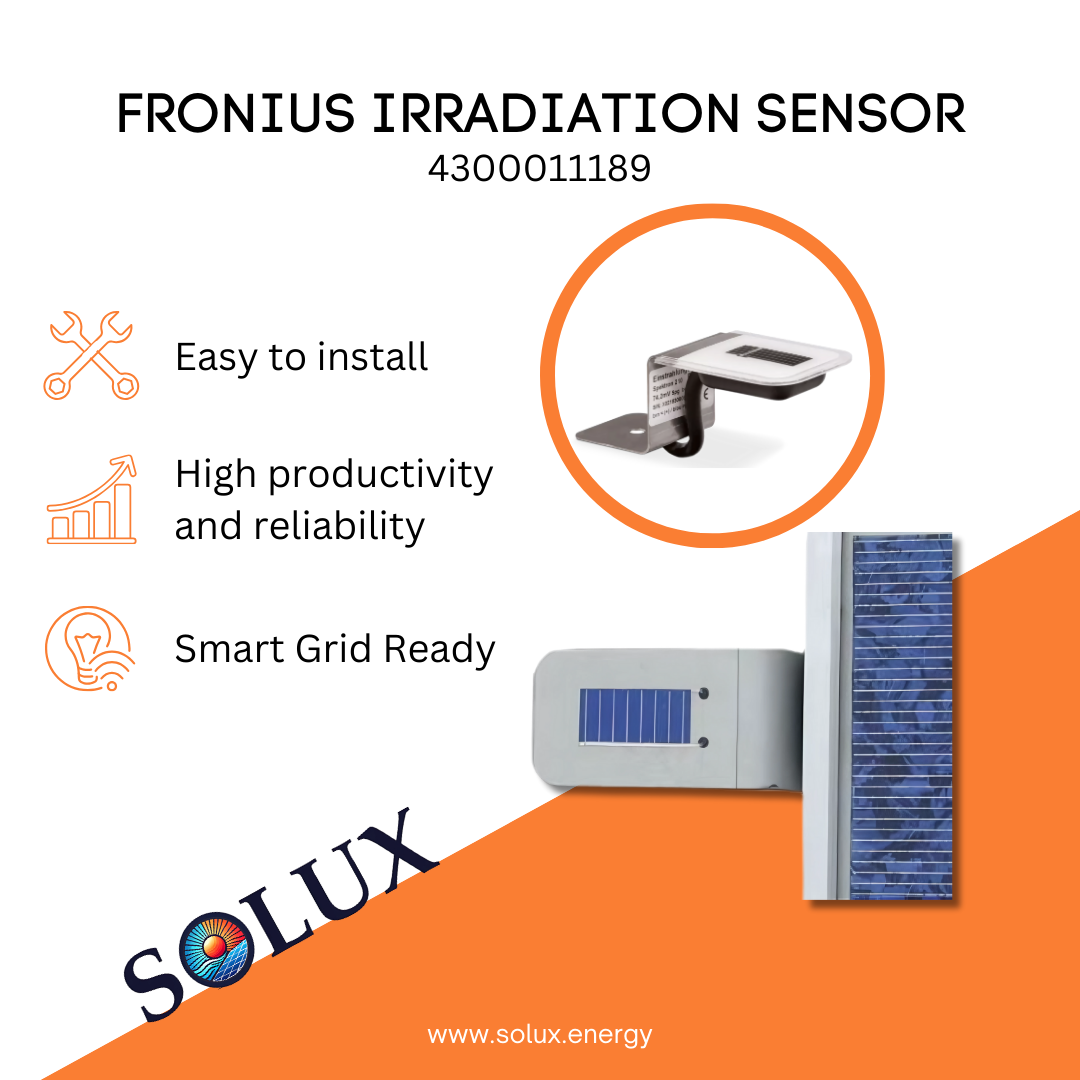

Fronius Irradiation sensor

$180.78 USD
$180.78 USD
Sale Sold out
Shipping calculated at checkout.

Features / Description:

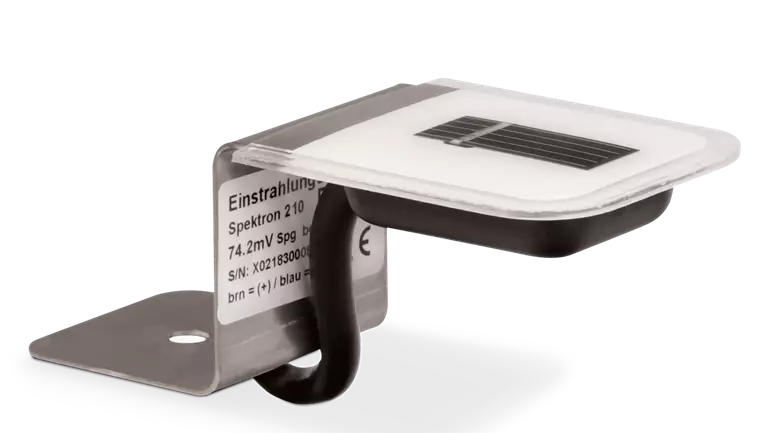

This sensor is used to measure irradiated energy and is normally attached to the module frame. Comparing the irradiated power to the inverter power provides a simple indicator as to whether the PV system is working properly.
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    Fronius Irradiation sensor

    Integrating sensors into a PV system enables additional measured values, such as irradiation and ambient temperature, to mention just a couple, to be recorded.

    Technical Specifications:

    • Dimension / length: 110 mm
    • Sensor: Monocrystalline Si sensor
    • Measuring voltage: Approx. 70 mV at 1,000 W/m² (exact calibration value is printed on the sensor)
    • Tolerance: ±5% annual average
    • Permissible ambient temperature: -40°C - +85°C
    • Design: Weather-proof design on Z-shaped aluminium profile
    • Connection cable 3 m Cu cable, silicone-insulated, exposed ends, ferrules, UV-resistant
    • Max. cable length (distance: Sensor Card/Box to sensor): 30 m

  • Downloads

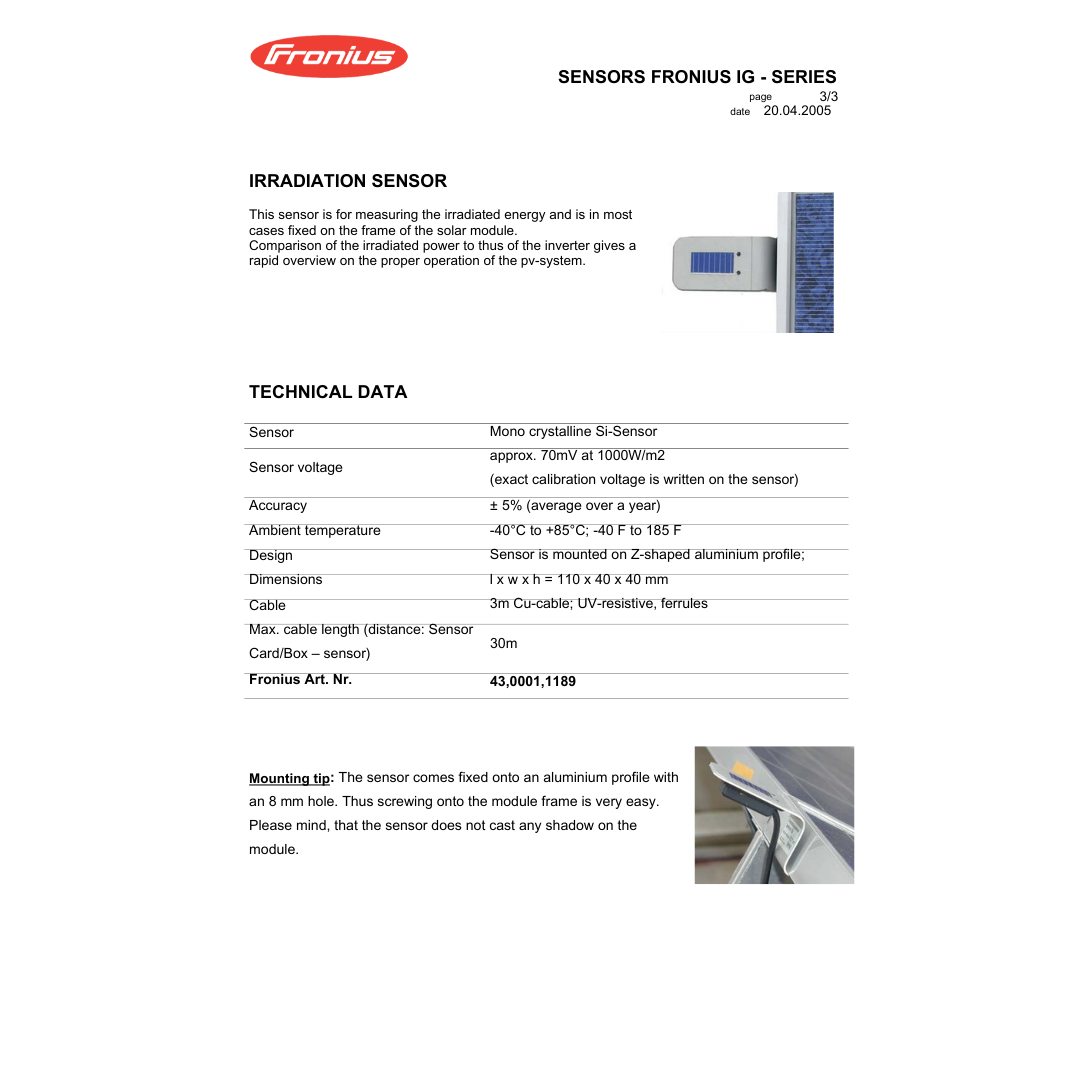

    Datasheet

    No installation guide available. Email info@solux.energy for file request.

    Quick Installation Guide

    ✔️ Quick Installation Guide
