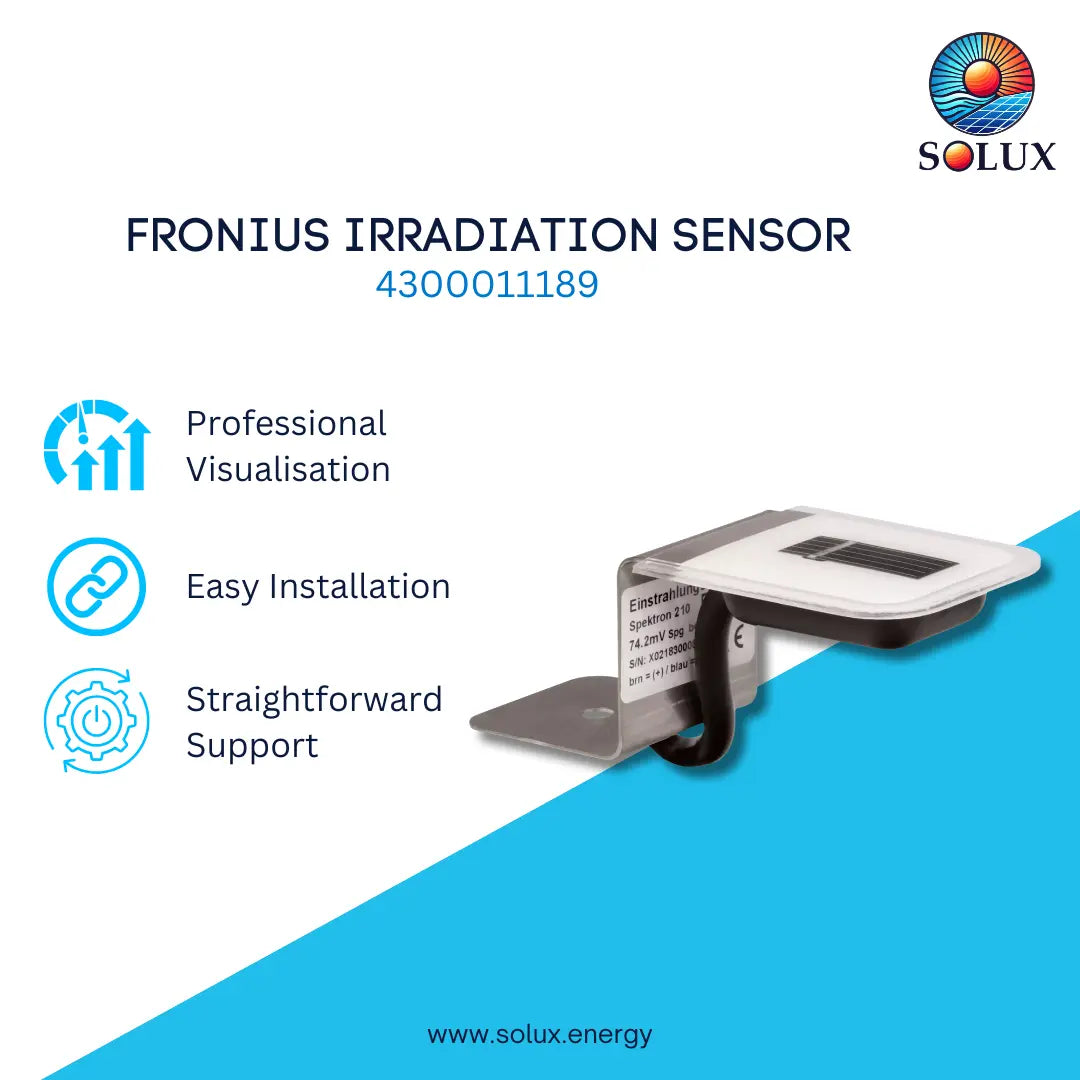

  • This is an image of Fronius 4300011189 Irradiation Sensor
  • 4300011189 solar radiation sensor
  • Product Image of Fronius 4300011189
1 3

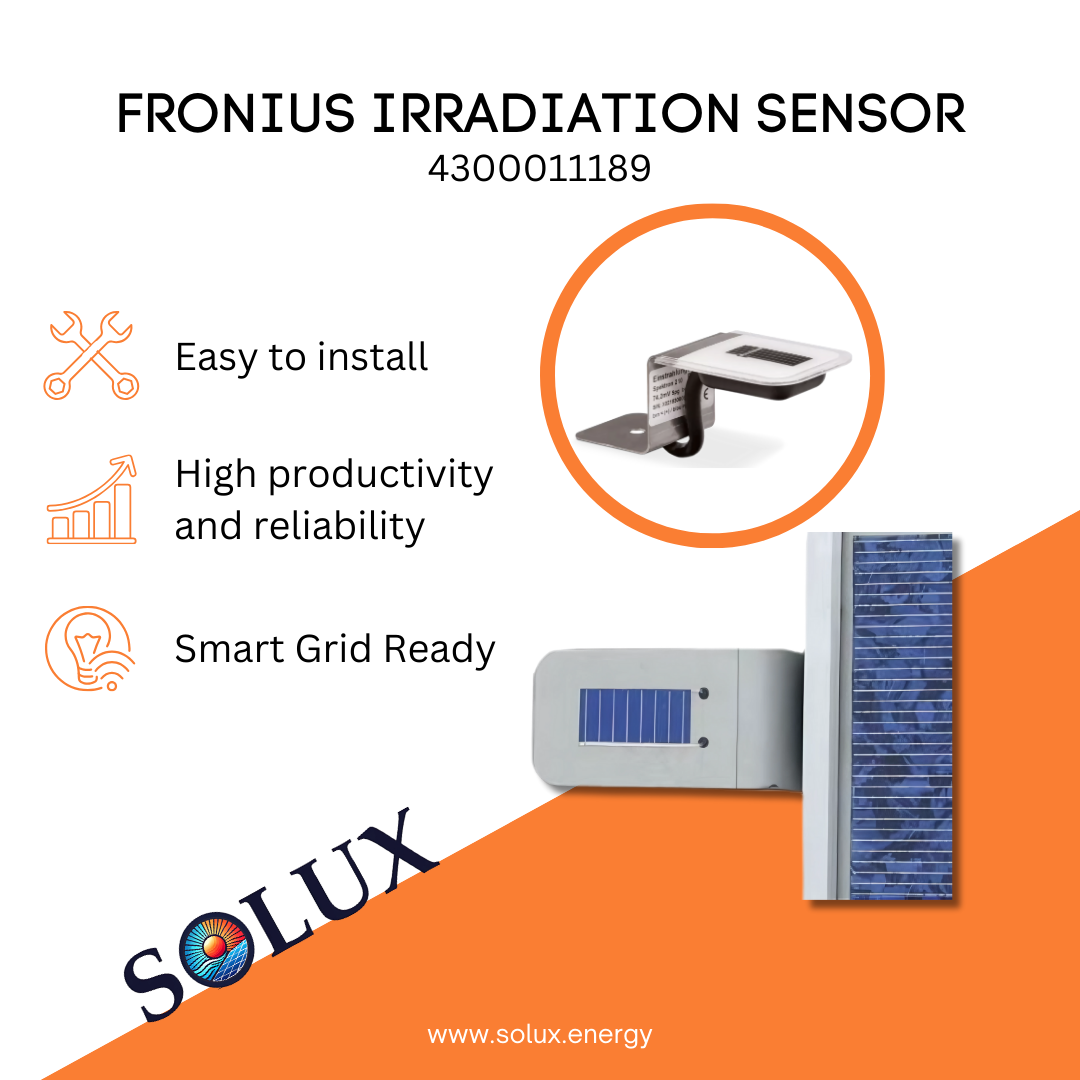

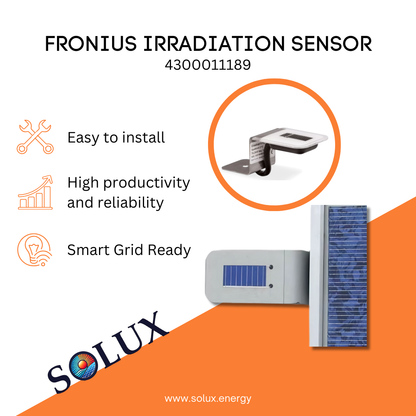

Fronius Irradiation sensor

$185.57 USD
$185.57 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Features: Monocrystalline silicon irradiance sensor

The Fronius Irradiance Sensor is designed to measure the amount of solar irradiance (sunlight) reaching photovoltaic (PV) modules. It enables system owners and installers to compare the available solar energy with the inverter's power output, helping verify system performance, detect faults, and optimize energy production.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Fronius

  • Description

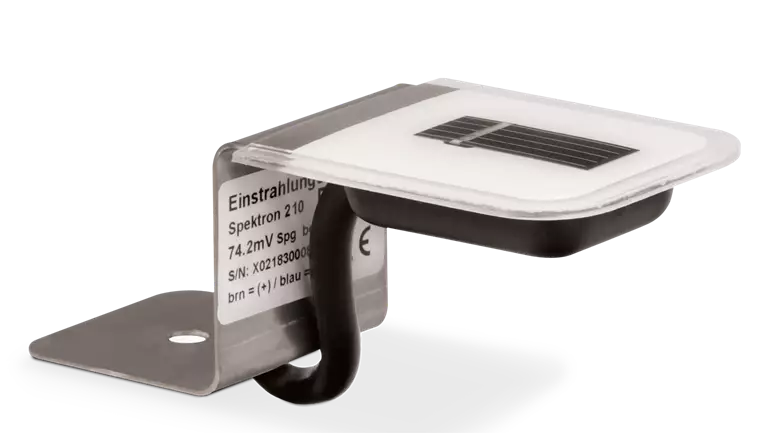

    Fronius Irradiation sensor

    This sensor measures solar irradiance and is typically mounted directly to the module frame. Comparing the solar power received to the inverter output provides a quick and clear indicator of whether the PV system is operating efficiently.

    Technical Specifications:

    • Dimension / length: 110 mm
    • Sensor: Monocrystalline Si sensor
    • Measuring voltage: Approx. 70 mV at 1,000 W/m² (exact calibration value is printed on the sensor)
    • Tolerance: ±5% annual average
    • Permissible ambient temperature: -40°C - +85°C
    • Design: Weather-proof design on Z-shaped aluminium profile
    • Connection cable 3 m Cu cable, silicone-insulated, exposed ends, ferrules, UV-resistant
    • Max. cable length (distance: Sensor Card/Box to sensor): 30 m

  • Resources

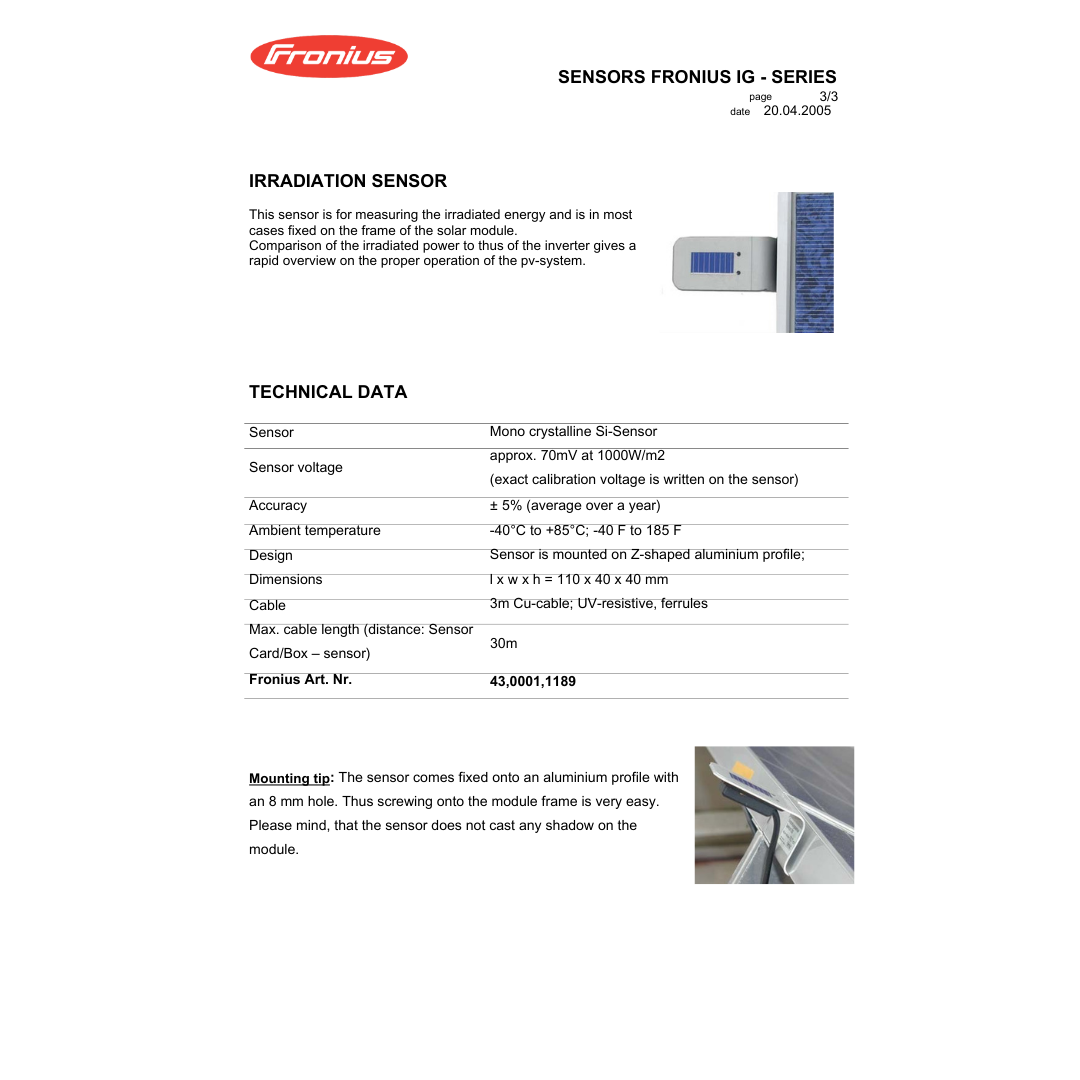

    Datasheet

    No installation guide available. Email info@solux.energy for file request.

    Quick Installation Guide

    ✔️ Quick Installation Guide
