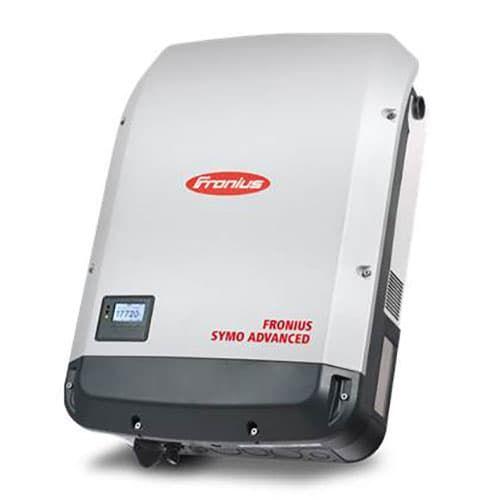

Fronius Symo Advanced Lite FRO-SA-20.0-3-480-L 15kW 3-Phase Inverter

Fronius Symo Advanced Lite FRO-SA-20.0-3-480-L 15kW 3-Phase Inverter

Featuring models ranging from 10 kW to 24 kW, the Fronius Symo Advanced is the ideal inverter for commercial applications. The new Advanced versions combine the benefits of the Fronius Symo with additional features zero tilt mounting, light weight and field serviceability.

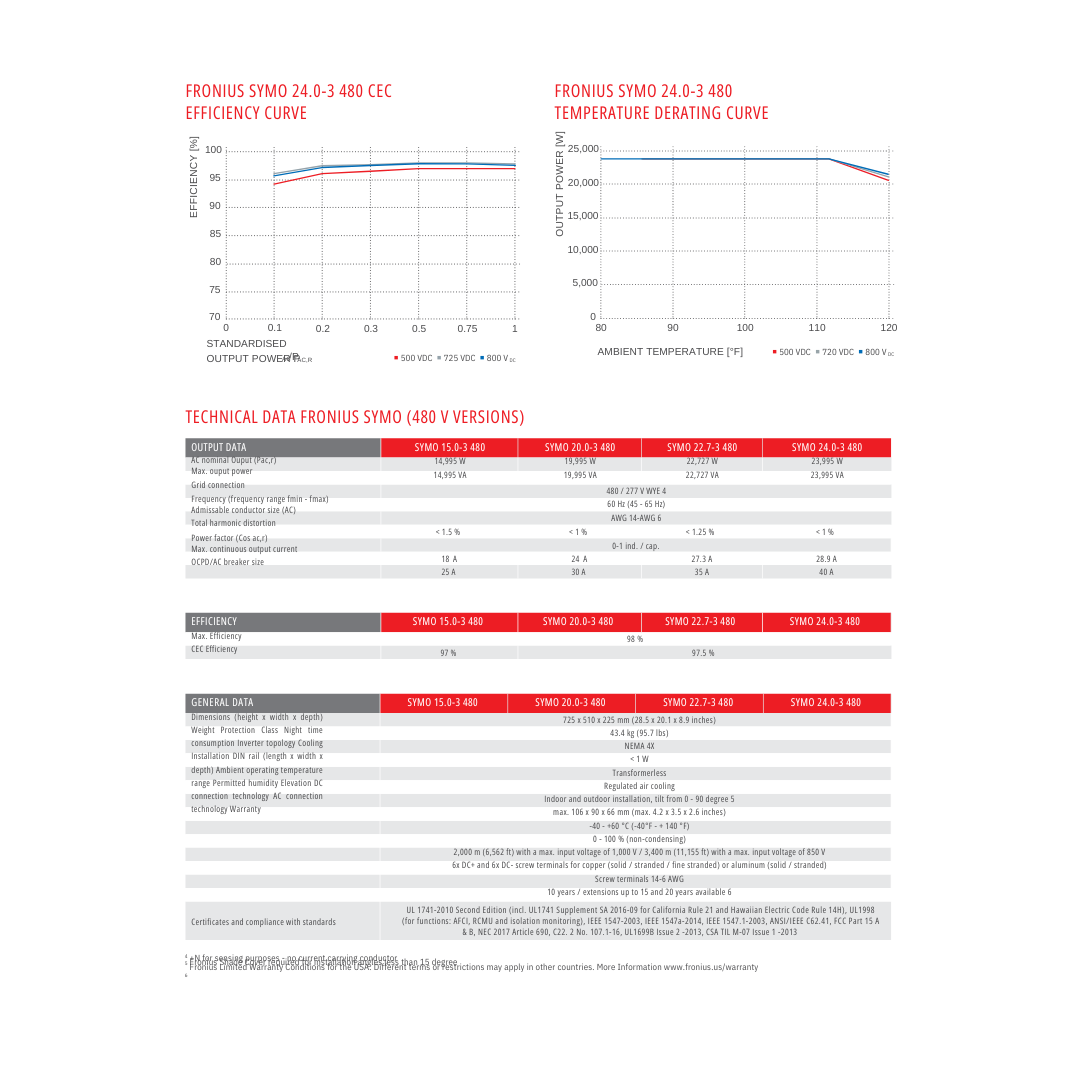

Technical Specifications:

• Width: 511 mm
• Height: 724 mm
• Depth: 226 mm
• Weight: 43.4 kg
• Installation: Indoor and outdoor installation, tilt from 0 - 90 degree (Fronius Shade Cover required for installation angles less than 15 degrees)
• Permitted humidity 2): 0 - 100 % (non-condensing)
• Protection class: NEMA 4X
• Night time consumption: <1 W
• Inverter topology: Transformerless
• Cooling: Variable speed fan
• Elevation: 2000 m (6562 ft) with a max. input voltage of 1000 V / 3400 m (11155 ft) with a max. input voltage of 850 V
• Number of MPPT: 2
• Max. usable input current: NA
• Max. usable input current total (MPPT1 + MPPT2): 51 A
• Max. array short circuit current (1.5 * Imax): 76,5 A
• Operating voltage range: 200-1000 V
• MPP Voltage Range: 450-800 V
• Max. input voltage (Udc max): 1000 V
• Max. output power 480 V: 19995 W
• Max. output power 277 V: 19995 W
• Max. output power 240 V: NA
• Max. output power 208 V: NA
• Output configuration: 3~ NPE 480 V
• Frequency range: 50-66 Hz
• Nominal operating frequency: 60 Hz
• Power factor range: 0-1 ind,/cap,
• Max continuous output current 480 V: 24.0 A
• Max. continuous output current 277 V: 24.0 A
• Max. continuous output current 240 V: NA
• Max. continuous output current 208 V: NA
