Description
Unirac GFT RAIL MILL (Sold Individually, Pkg Qty 60)
The Unirac GFT Rail is built for long spans where aluminum just doesn't have the backbone. These G90 galvanized steel beams are incredibly rigid, allowing you to space out your vertical piles further and save hours of foundation work. At lengths up to 246 inches, they have a heavy, industrial mill finish that’s made to survive decades in an open field. They arrive in 60-count bundles ready for a forklift, giving you a rock-solid, steel-on-steel connection that won't sag under heavy module loads.
Available Measurement:

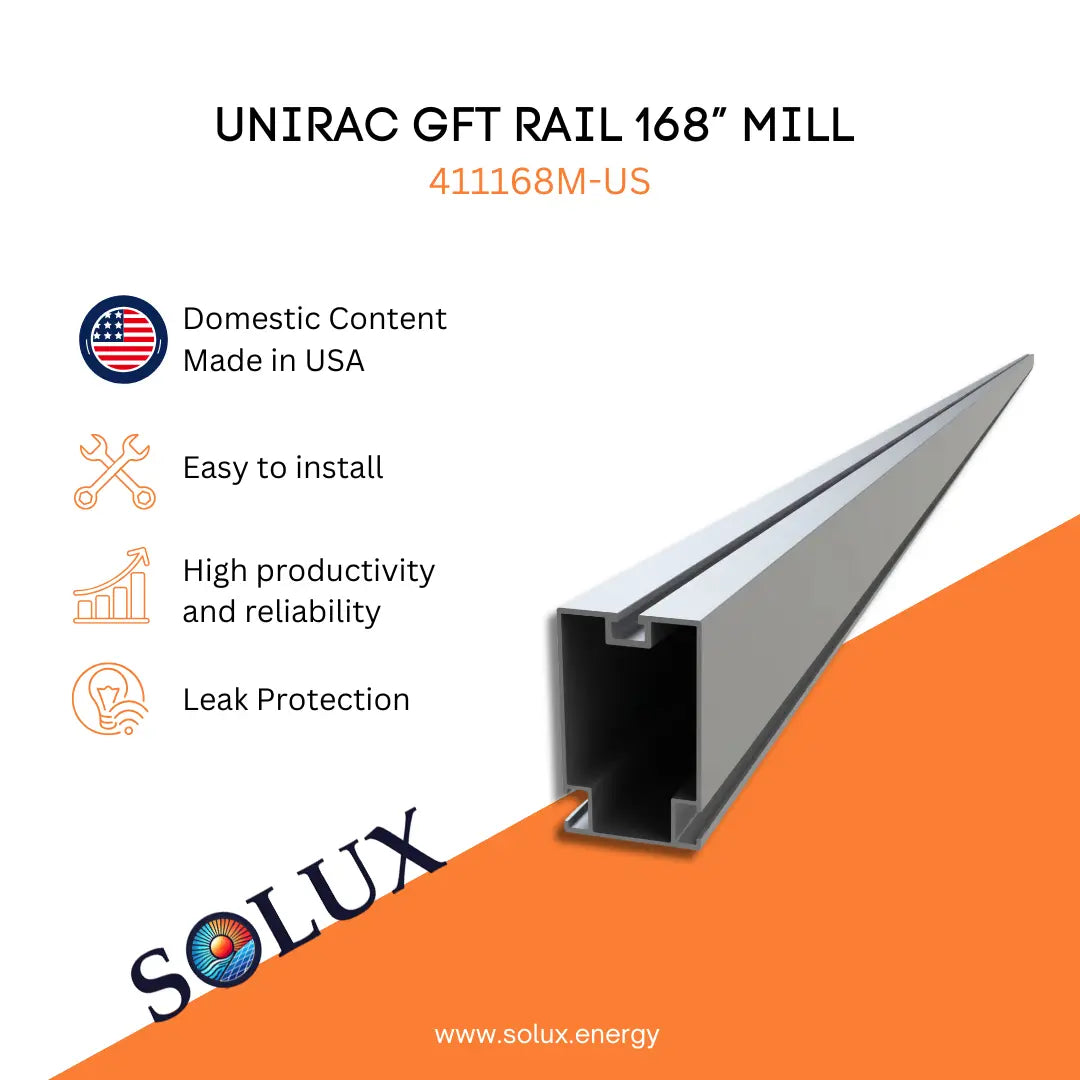

- 168 Inches: 411168M-US

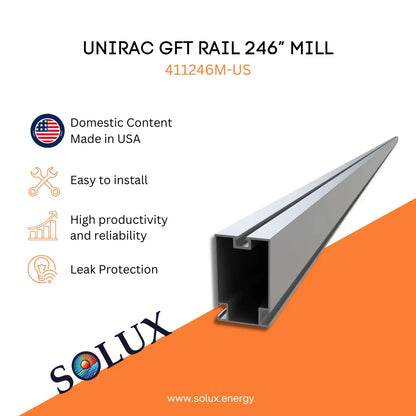

- 246 Inches: 411246M-US
Technical Specification:
- Manufacturer Part Number: 411168M-US, 411246M-US
- Manufacturer Warranty: 25 Year Warranty
- Shipping Weight: 630 lb (Package of 60)
- Shipping Dimensions: 144 x 40 x 44 in
- Case QTY: 60
- Pallet QTY: 60
- Finish: Hot-dip Galvanized (zinc-coated) finish
- Material: G90 Galvanized Steel
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
✔️ Quick Installation Guide
Warranty
No Warranty file resource available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
