Description

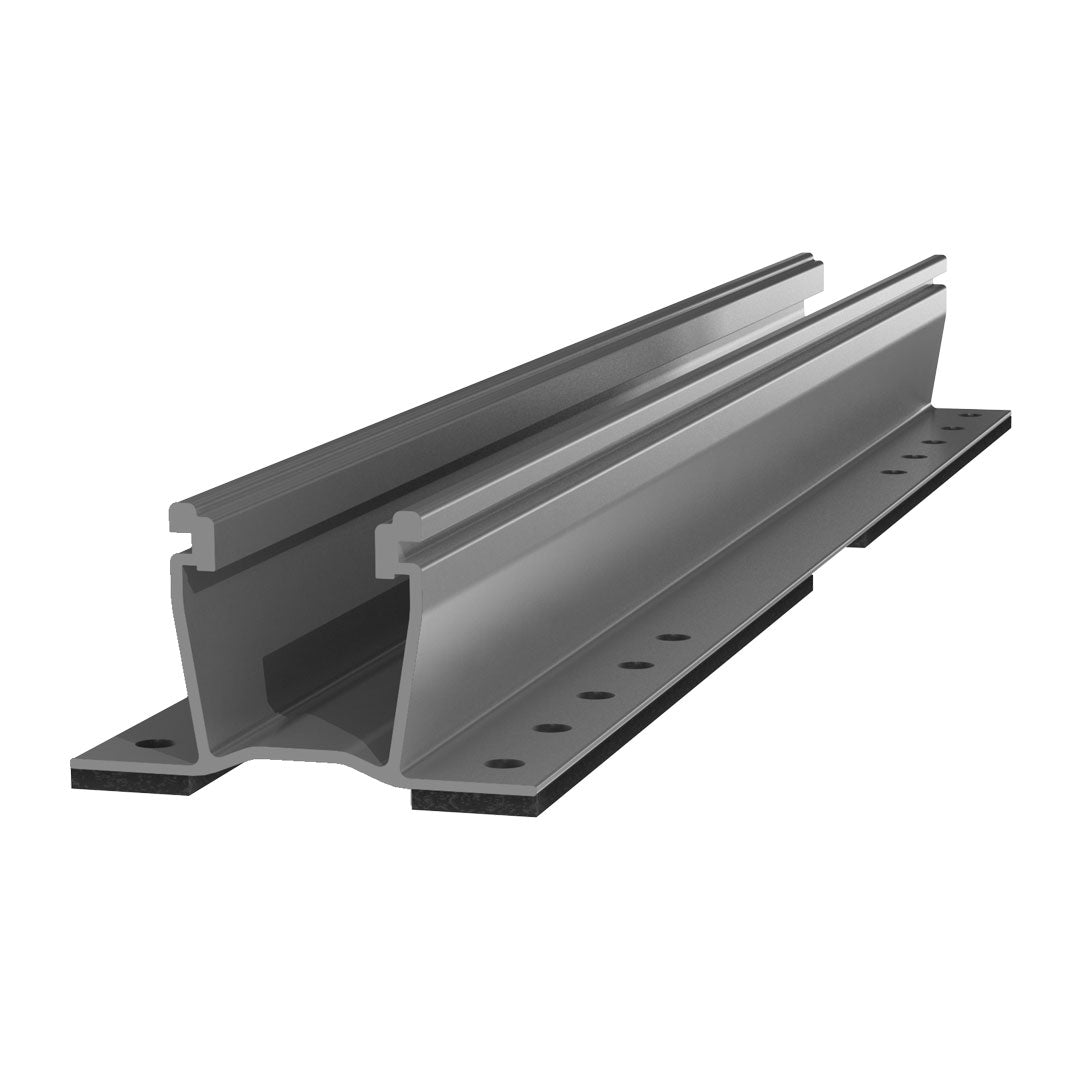

K2 Systems MiniRail XPRess Base 17 inches with EPDM Weather Seal (Mill Finish)
The K2 Systems MiniRail XPRess Base 17in (Part #4000073) is an ultra-compact solar mounting short-rail profile engineered specifically for trapezoidal sheet metal roofs. Factory-preassembled with K2 EverSeal EPDM rubber backing, this 17-inch roof attachment provides durable waterproofing and fast direct attachment into metal roof crowns without requiring continuous long mounting rails.
Designed for residential metal roofs and large-scale industrial commercial facilities, the MiniRail XPRess system accelerates array installation speed, drastically reduces freight shipping footprint, and maintains natural roof drainage channels.
- K2 EverSeal preassembled: Yes
- Scope of application: Pitched Roof
- Component Type: Roof attachment, Mounting rail
- Material: Aluminum and EPDM
- Packaging type: 50 / Box, 1,200 / Pallet
-
Downloads

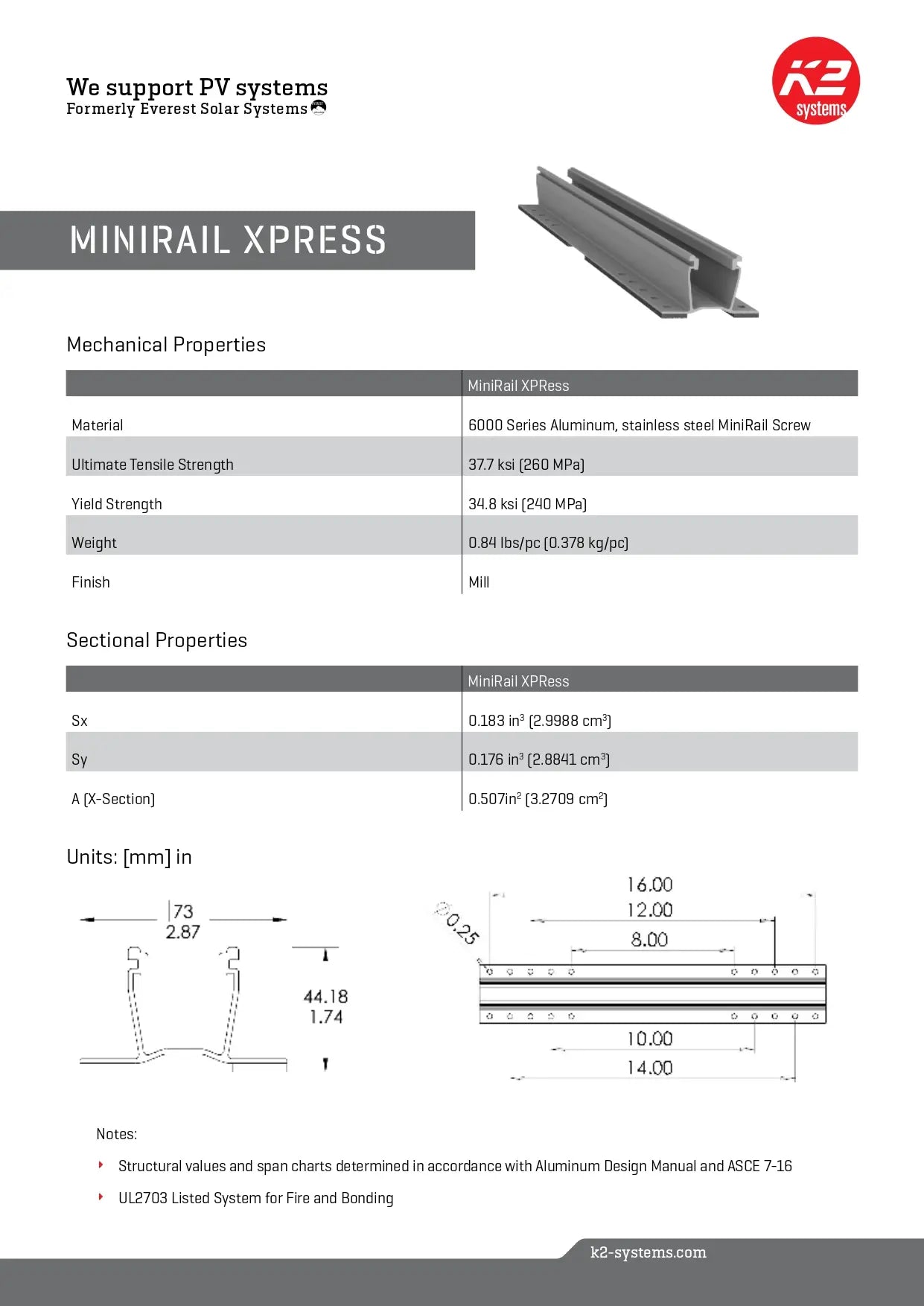

Technical Sheet
✔️ Technical Sheet
Quick Installation Guide
No installation file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
