Rolls Surrette 4-KS-25P 4VDC 1404Ah Deep Cycle Battery

Rolls Surrette Battery 4 KS 25P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

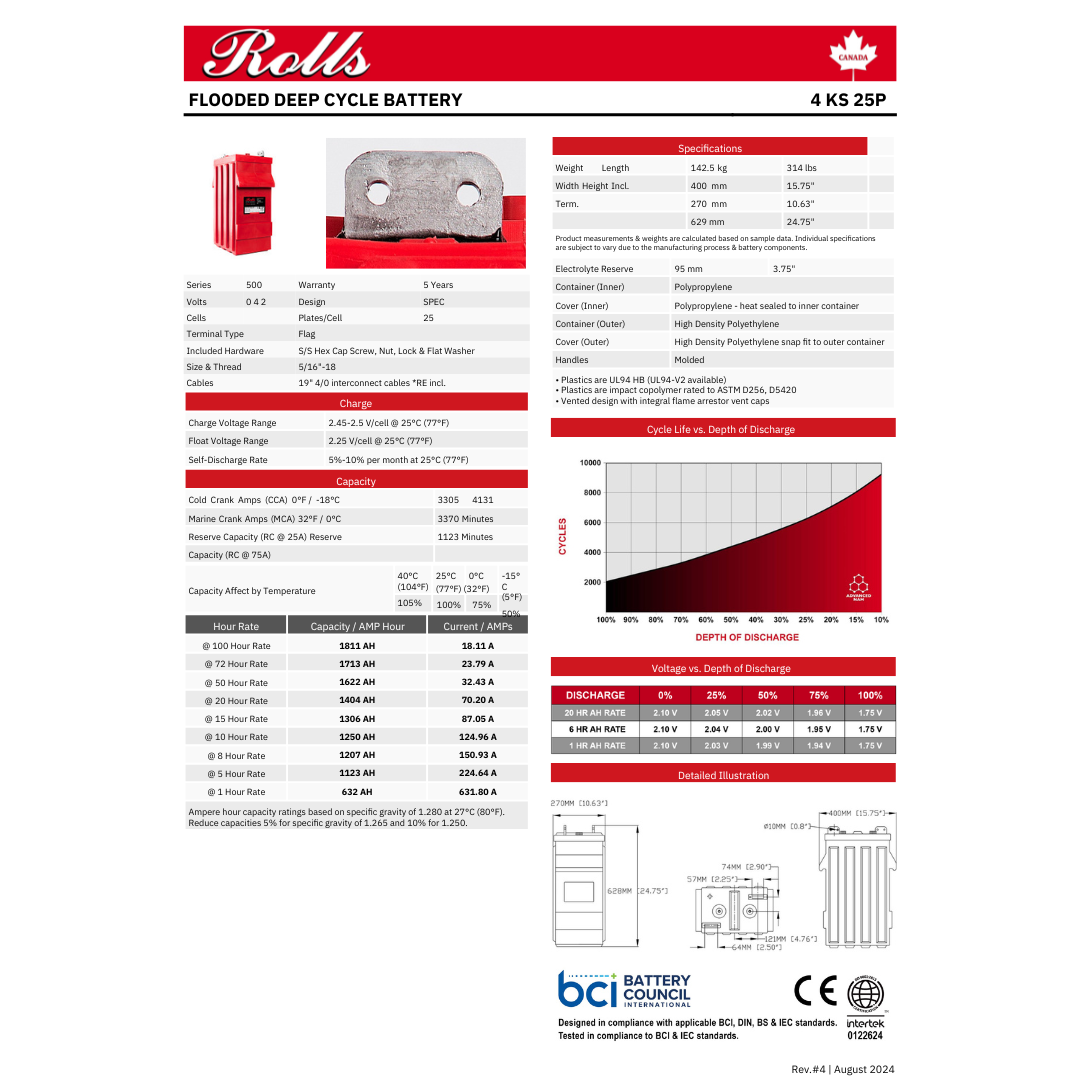

Technical Specifications:

• Weight: 142.5 kg / 314 lbs
• Length: 400 mm / 15.75"
• Width: 270 mm / 10.63"
• Height Incl. Term.: 629 mm / 24.75"
• Electrolyte Reserve: 95 mm / 3.75"
• Container (Inner): Polypropylene
• Cover (Inner): Polypropylene - heat sealed to inner container
• Container (Outer): High Density Polyethylene
• Cover (Outer): High Density Polyethylene snap fit to outer container
• Handles: Molded
• Series: 5000
• Volts: 4
• Design: SPEC
• Cells: 2
• Plates/Cell : 25
• Terminal Type: Flag
• Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
• Size & Thread: 5/16"-18
• Cables: 19" 4/0 interconnect cables *RE incl.
• Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
• Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 3305
• Marine Crank Amps (MCA) 32°F / 0°C: 4131
• Reserve Capacity (RC @ 25A): 3370 Minutes
• Reserve Capacity (RC @ 75A): 1123 Minutes
• Capacity AMP @ 20 Hour Rate: 1404 Ah
