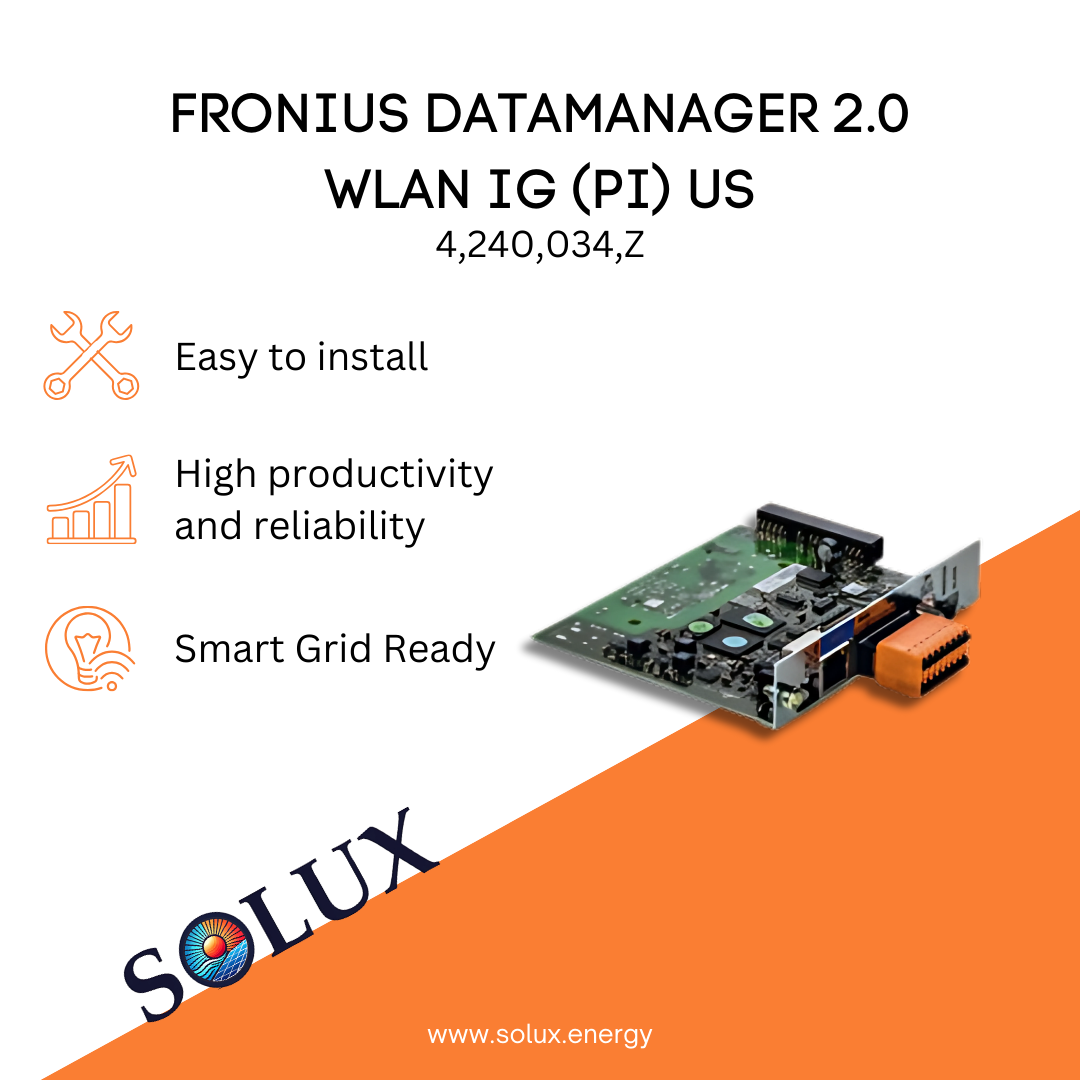

Fronius Datamanager 2.0 WLAN IG(Pl) US

Fronius, 4,240,034,Z, Accessory, Datamanager 2.0 Ethernet and Wlan Card For - Fronius IG Inverters

The Fronius Datamanager is the communications centre for Fronius inverters in every type of application. Whenever it is connected to the internet via a LAN or WLAN, the Fronius Datamanager sends the PV system values directly to the Fronius Solar.web online portal. This provides you with an overview of how the system is operating at all times. The Fronius Datamanager enables inverters to be connected directly to the internet via WLAN. Furthermore, optimum system monitoring and configuration of the Datamanager can be carried out via the dedicated website on the Fronius Datamanager's integrated web server. The integrated Modbus RTU SunSpec, Modbus TCP SunSpec and Fronius Solar API (JSON for actual values) interfaces allow Fronius inverters to be seamlessly linked to third-party systems and run in parallel with Fronius Solar.web.

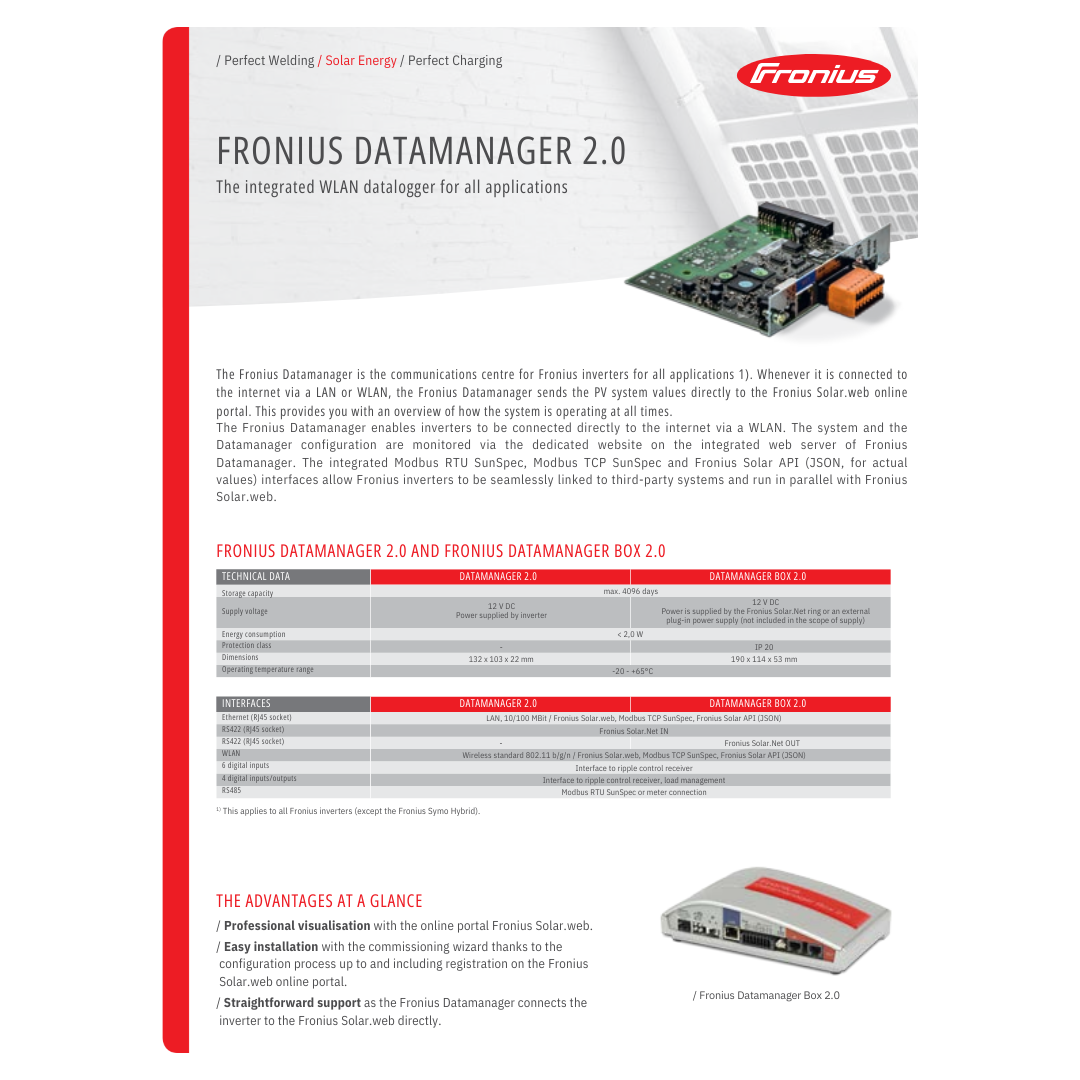

Technical Specifications:

• Storage capacity: Max. 4096 days
• Supply voltage: 12 V DC - power supplied by inverter
• Energy consumption: < 2.0 W
• Height: 132.0 mm
• Width: 103.0 mm
• Length: 22.0 mm
• Operating temperature range: -20C - +65C
• Ethernet (RJ45 socket): LAN, 10/100 MBit / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
• RS422 (RJ45 socket): Fronius Solar.Net IN
• WLAN: Wireless standard 802.11 b/g/n / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
• 6 digital inputs: Interface to ripple control receiver
• 4 digital inputs/outputs: Interface to ripple control receiver, load management
• RS485: Modbus RTU SunSpec or meter connection
