Fronius Symo 42.0-3-M 42kW 3-Phase Inverter

Fronius, Symo Advanced Lite 24.0 480 Grid Tied Inverter, 3-Ph, 24 kW, 480VAC, 60Hz, 1000VDC, DC Discon, 6 Fused DC Input, 2 MPPT, 10 Yr Warr, Ungrounded, AFCI, with PLC SunSpec Transmitter, UL-1741-SA, NOT CA Rule 21 Compliant, 4,210,095,801

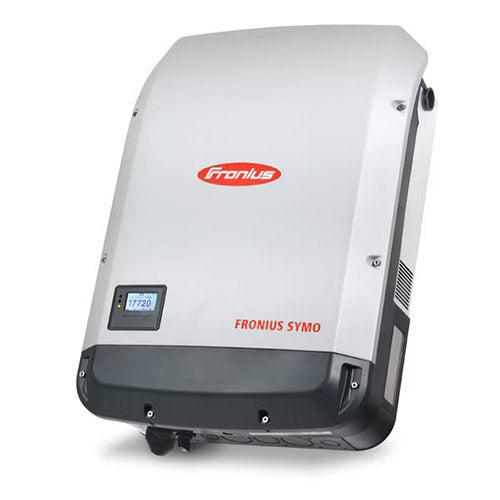

The Fronius Symo three-phase commercial inverter features the Fronius SnapINverter hinge mounting device, which allows for tool-free attachment and removal of the inverter from the wall mounting plate and integrated detaches, making the installation of large solar arrays easier than ever. The output power ranges from ten to twenty-four kilowatts. A large MPPT voltage range, two MPPT input circuits (note: only one MPPT circuit on Symo 15.0-208-3), and a NEMA 4X enclosure provide greater system design flexibility even in extreme environments. You'll need to order the correct fuses separately since fuse holders come with slugs (See Electrical Distribution Parts).

The WiFi Fronius Datamanager 2.0 card can be installed in Fronius Symo inverters, allowing Internet monitoring through the Fronius Solar. web portal on a computer or smartphone. For multiple Symo inverters installed in the same place, only one card is needed. For third-party control and data logging, the inverters have a Modbus interface. The Fronius. Web monitoring portal may also use the free Fronius Solar.TV service to send monitoring data, such as device yield, energy output, and environmental benefits, to a public display.

The warranty on Fronius Symo inverters is 10 years, but it can be extended to 15 or 20 years. Since these transformerless inverters operate with an ungrounded PV array topology, they must comply with NEC specifications, which include the use of PV Wire for exposed array string wiring.
