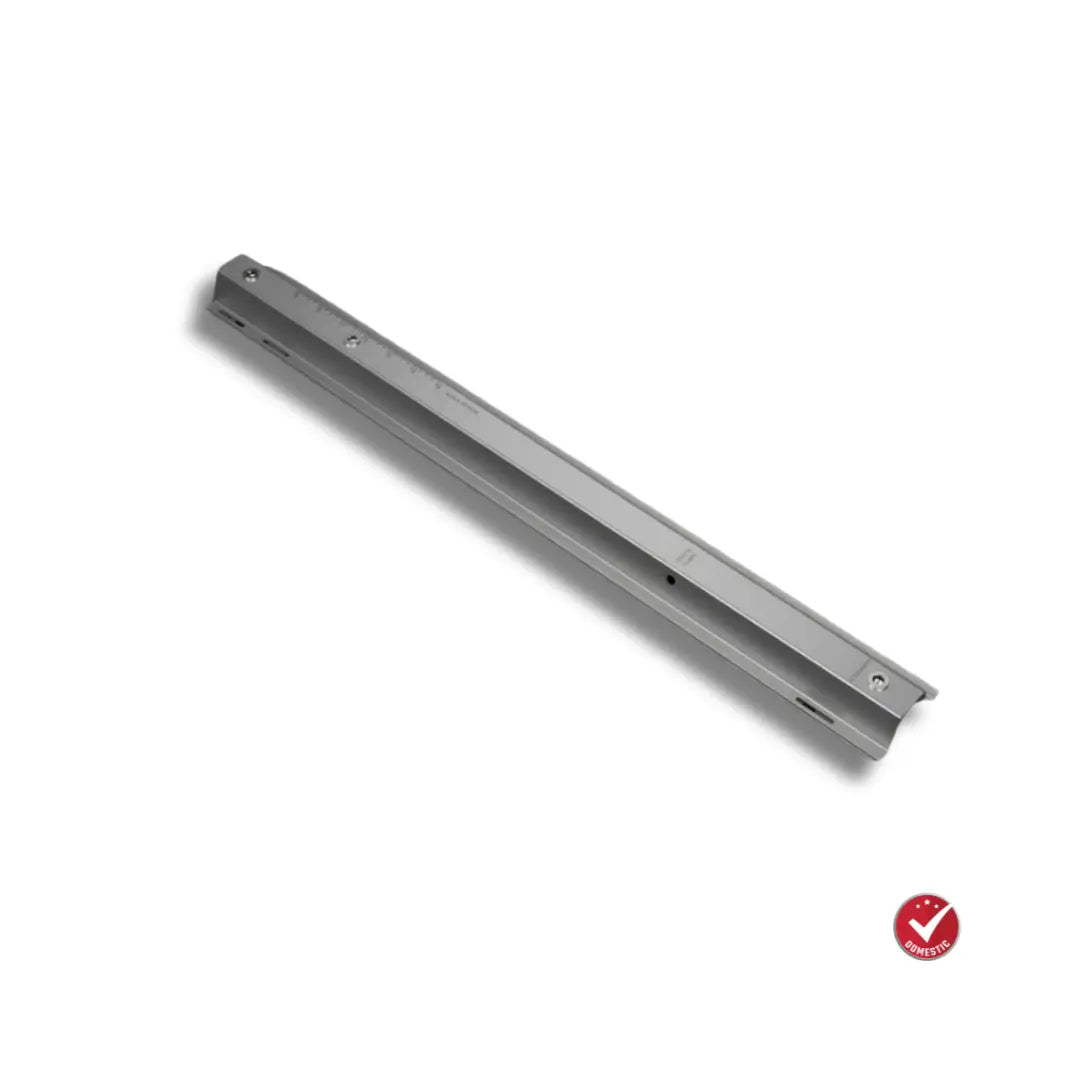

Unirac GFX10 South Rail

Unirac GFX10 SOUTH RAIL

The Unirac GFX10 South Rail uses stamped, laser-etched alignment scales so your crew can size arrays instantly without fumbling for a tape measure. The 380012-US model fits module widths of 39-45", while the 380022-US version handles wider 45–52" panels. Both options come with pre-assembled stainless Riv-Hex nuts that bite cleanly without stripping, eliminating loose hardware hassles on the roof. Built from rigid structural steel, these rails won’t twist or flex when torqueing down large-format 1500V commercial modules.

Available Measurement:

• 39-45 Inches: 380012-US Domestic Content
• 45-52 Inches: 380022-US Domestic Content

Technical Specification:

• Product Type: South Rail Assembly for the Unirac GridFlex 10
• Compatible Module Width: 39"–45" / 45"–52"
• Material: Structural steel
• Hardware: Preassembled with 1/4" stainless steel Riv-Hex nuts
• Maximum System Voltage: 1500V
• Allowable Module Length: 71"–100"
• Allowable Module Width: 39"–52"
• Hardware Material: Stainless steel
