Unirac GridFlex Ballast Tray (Sold Individually, Pkg Qty 5)

Unirac GRIDFLEX BALLAST TRAY 92-100“ (Sold Individually, Pkg Qty 5)

The Unirac GridFlex Ballast Tray is a wide steel pan that holds heavy concrete blocks to anchor your solar panels without drilling holes in the roof. Made from thick, rust-proof galvanized steel, these trays handle rough concrete blocks and pooling water without scratching. This system fits panel lengths from 62 to 100 inches across four specific model sizes to ensure a perfect, drop-in match for your layout. Because the heavy blocks do all the work, you keep the roof safe from leaks while pinning the entire array tight against high winds.

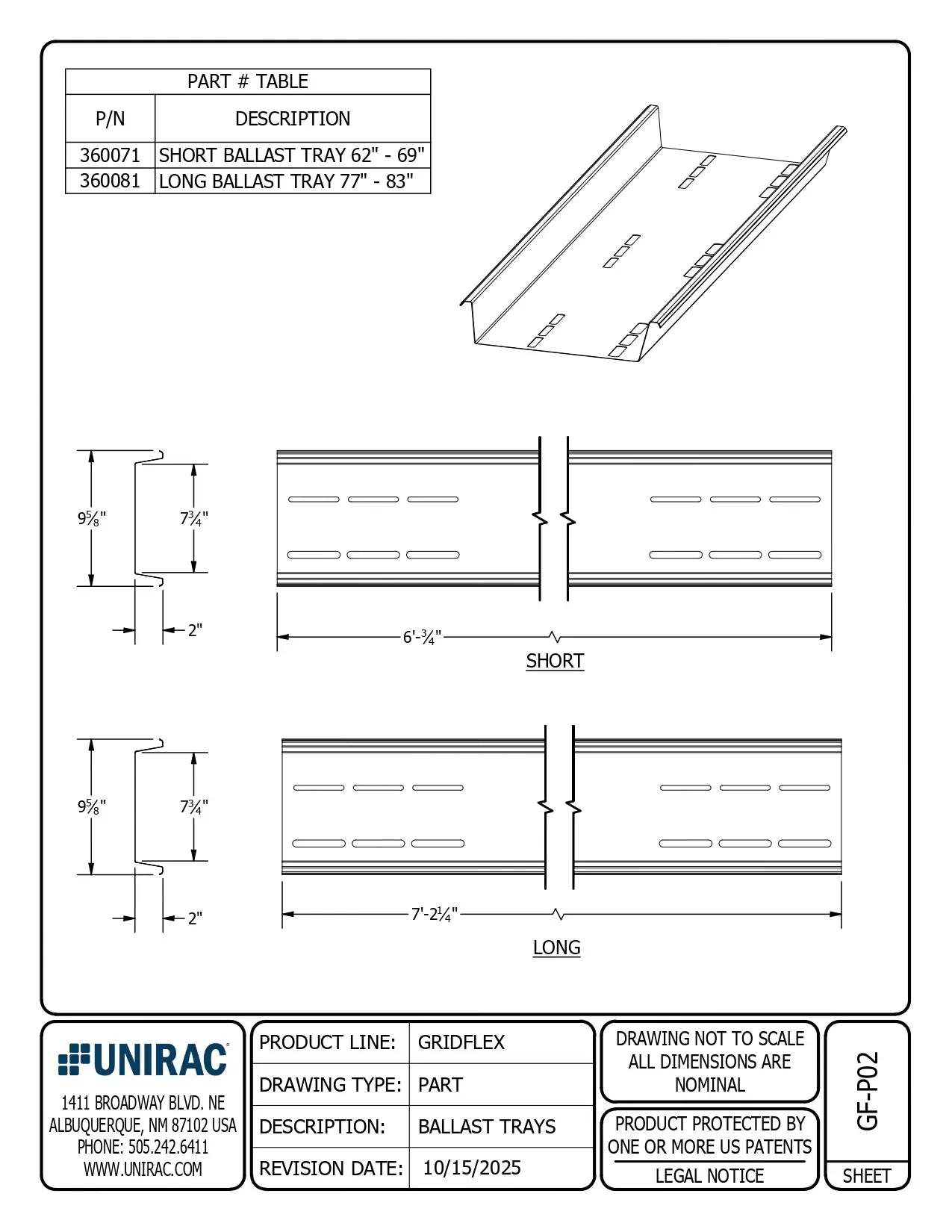

Available Measurement:

• 92-100 Inches: 360120-US
• 62-69 Inches: 360071-US
• 77-83 Inches: 360081-US
• 83-92 Inches: 360101-US

Technical Specification:

• Product Type: GridFlex Ballast Tray
• Compatible Module Width: 39 in to 52 in module width
• Material: G180 galvanized steel
• Maximum System Voltage: 1500 V DC
• Allowable Module Length: 62 in to 100 in (1,575 mm to 2,540 mm)
• Allowable Module Width: 39 in to 52 in (≈ 990 mm to 1320 mm)
