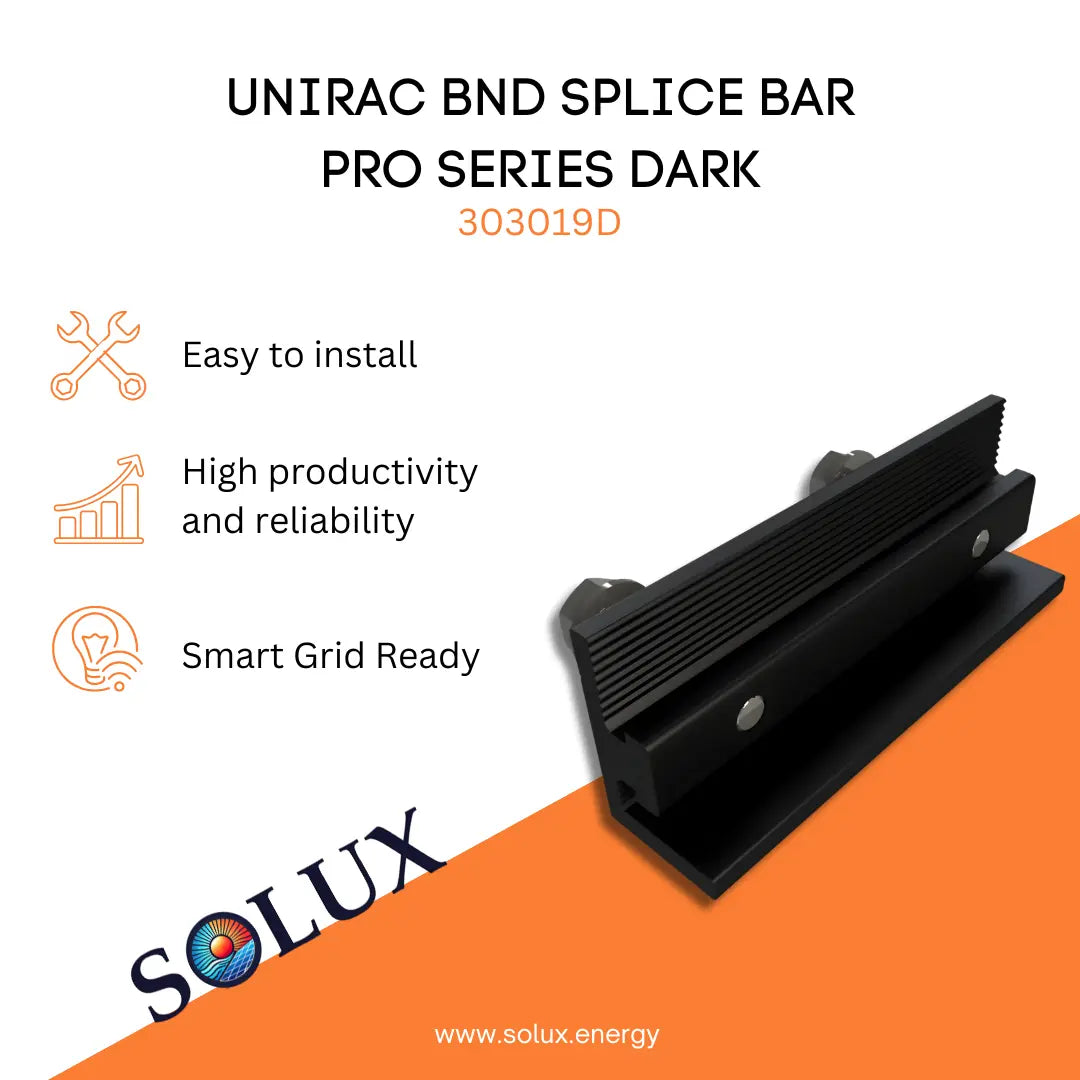

Unirac BND Splice Bar Pro Series Dark

Unirac BND Splice Bar Pro Series Dark

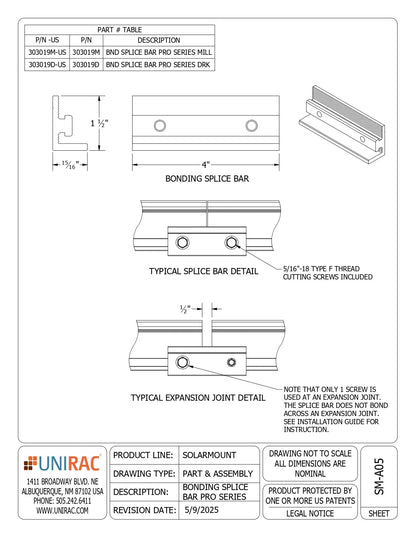

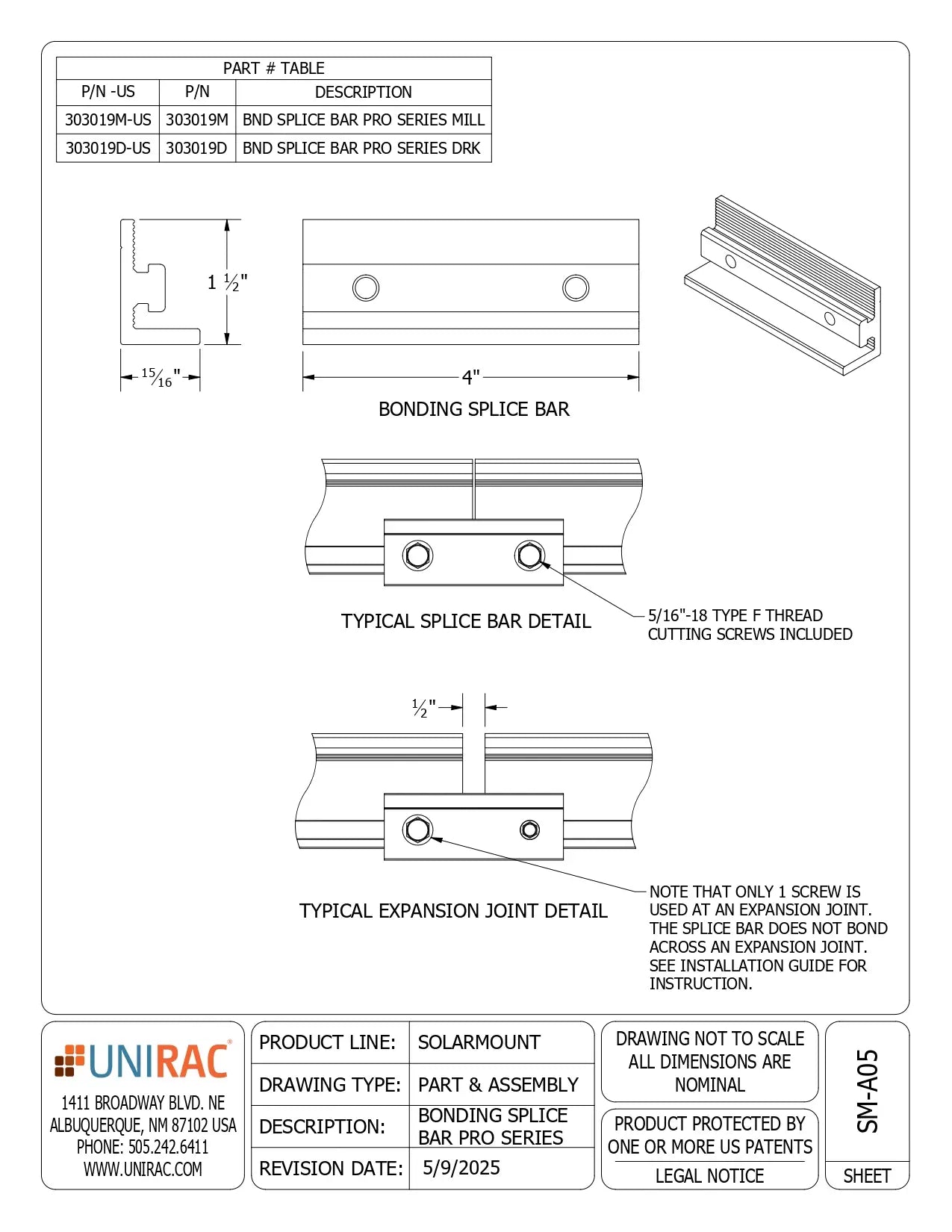

Seamless structural and electrical connectivity. The 303019D is a 4-inch dark anodized aluminum splice bar designed to join two sections of Unirac SolarMount rail. This Pro Series component features integrated bonding technology that creates a UL 2703 listed electrical path across the rail joint, eliminating the need for external copper jumpers or grounding straps.

Product Highlights:

• Integrated Bonding: Establishes a UL 2703 listed electrical bond when installed with all four screws.
• Structural Integrity: Forms a rigid joint as strong as the rail itself to ensure array stability.
• Thermal Expansion: One-sided screw installation allows for sliding thermal joints (requires external jumper).
• Fast Installation: Pre-drilled pilot holes facilitate rapid, one-step setup with included self-drilling screws.
• Aesthetic Finish: Dark anodized coating provides a seamless match for black SolarMount rails.
• Rail Compatibility: Designed for use with SolarMount Standard and Light rail profiles.

Logistics & Ordering Info

• Manufacturer Part Number: 303019D
• Shipping Weight: .45 lb
• Shipping Dimensions: 4 x 0.81 x 1.5 in
• Case Qty: 20
