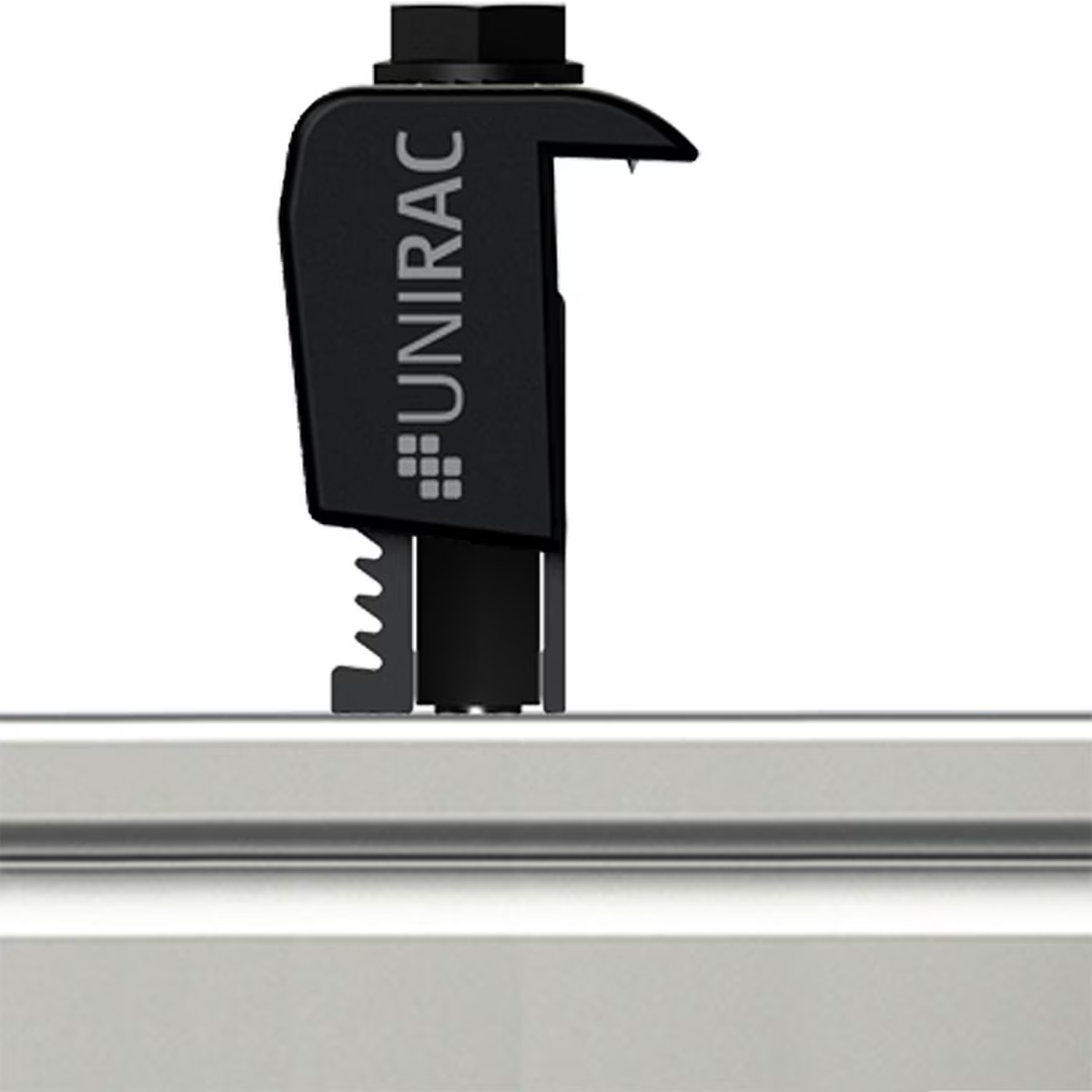

Unirac AF Series End Clamp Dark

Unirac AF Series End Clamp Dark

Universal, front-access end attachment. The 302050D is a high-performance mounting component engineered for secure and efficient solar installations. Built from structural-grade aluminum, it offers reliable support and seamless integration with Unirac racking systems. This "Dark" version provides a professional, low-profile finish for black-frame modules, making it the ideal choice for installers seeking strength, consistency, and a streamlined setup.

Product Highlights:

• Front Access: Top-down fastening enables safer, faster installs without reaching under modules.
• Universal Fit: Securely grips module frames ranging from 30mm to 46mm.
• Auto-Bonding: Integrated UL 2703 grounding pins eliminate the need for extra wiring.
• Aesthetic Finish: Dark anodized coating ensures a clean, "hidden" edge for the solar array.
• Anti-Galling: Proprietary bolt coating prevents hardware seizing during high-speed installation.
• Pre-Assembled: Arrives unitized and ready to install, reducing on-roof labor and part loss.

Logistics & Ordering Info

• Manufacturer Part Number: 302050D
• Shipping Weight: .15 lb
• Shipping Dimensions: 2.5 x 2 x 1 in
• Case Qty: 20
