Unirac SM BND MIDCLAMP

Unirac SM BND MIDCLAMP

The Unirac mid clamp sits directly in the small gap between two solar panels to anchor them to the rail track. The raw aluminum or black metal block matches the height of your panel frames for a clean, flat look on the roof. As you spin the top bolt, the metal lip catches both module edges evenly and clamps them down with a heavy crushing force. This tight squeeze keeps the entire line of panels perfectly straight and completely locked against rough weather.

Available Color/Finishes:

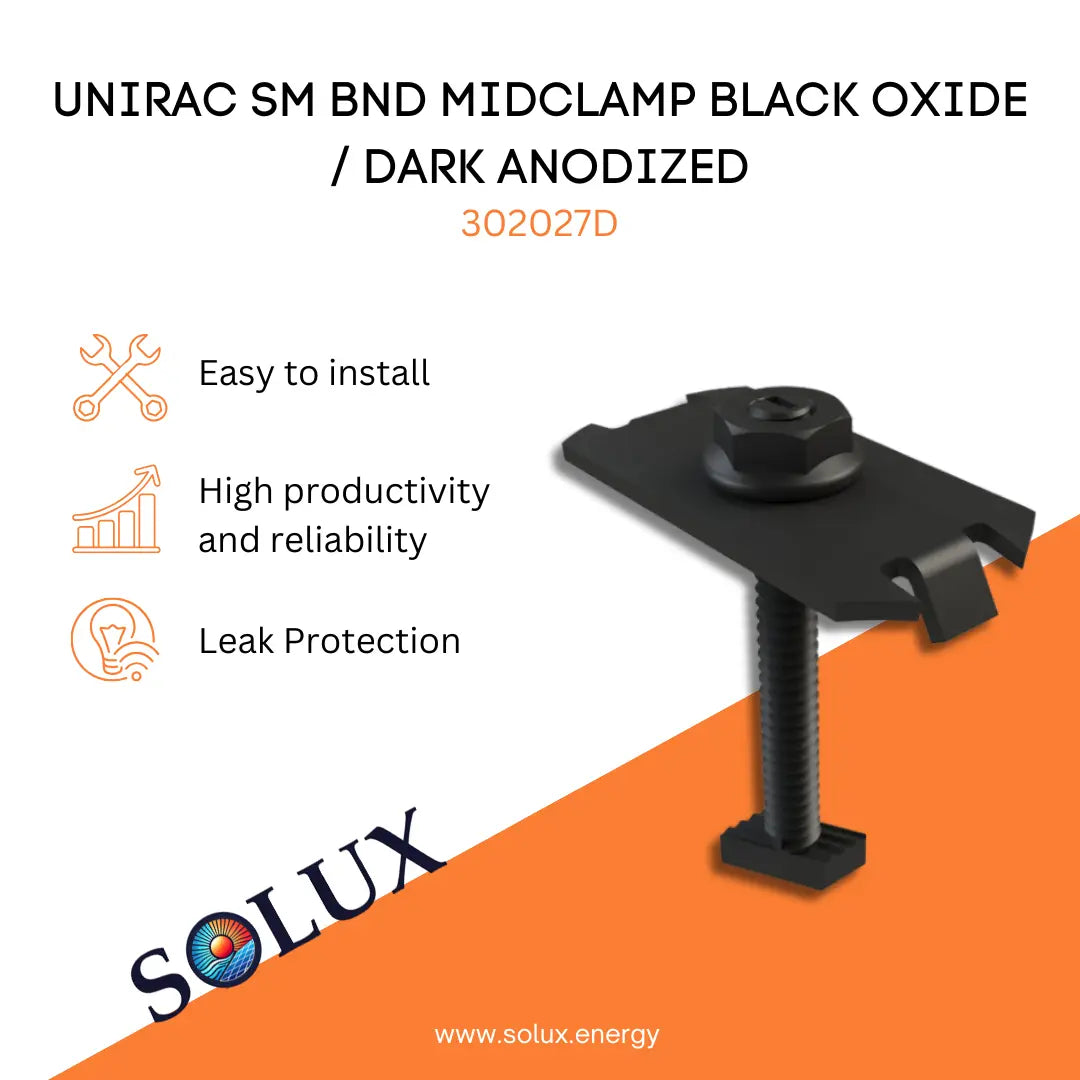

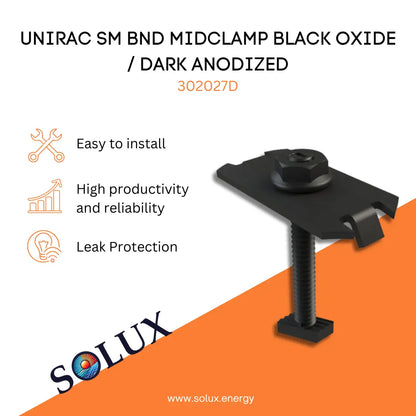

• Black oxide / dark anodized SS: 302027D

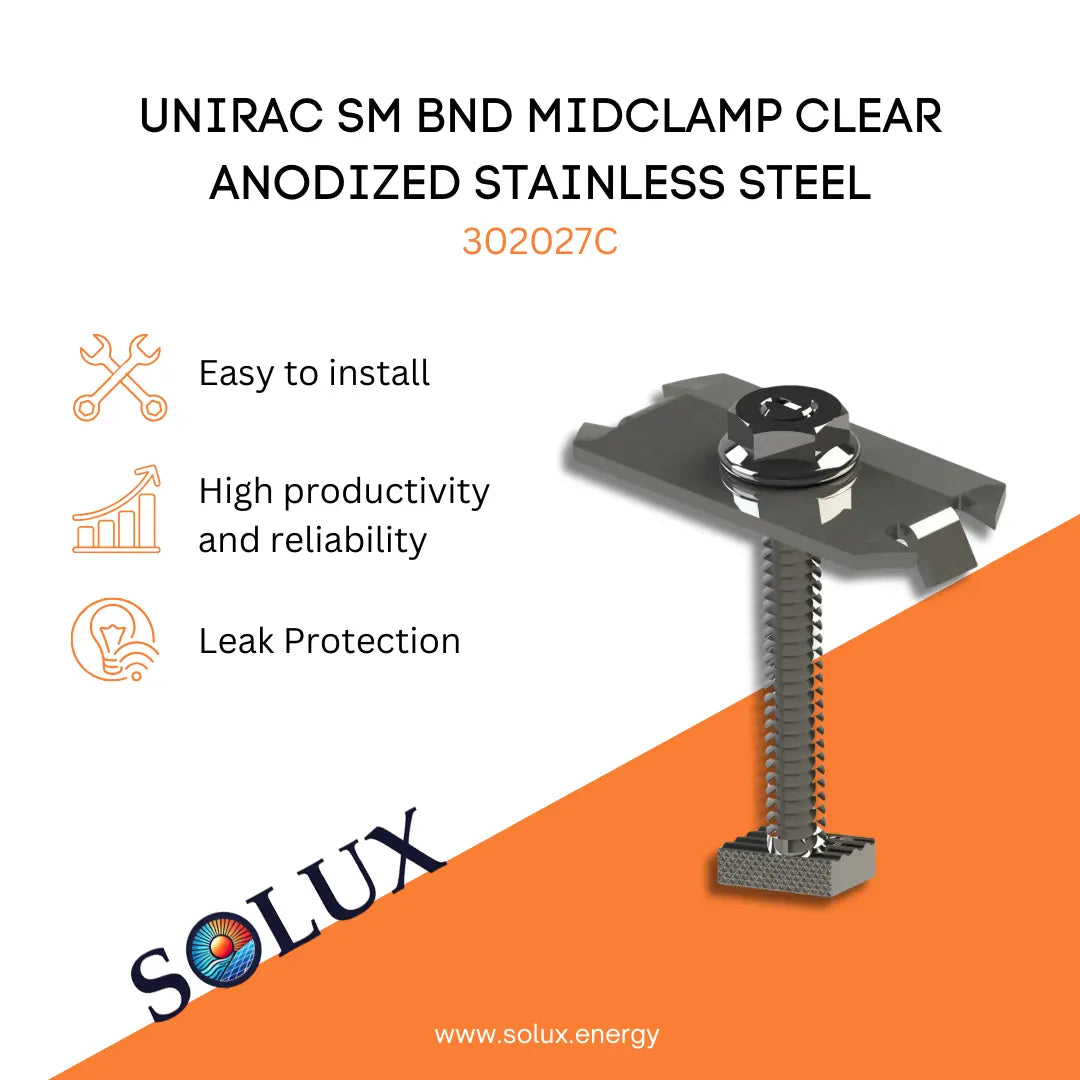

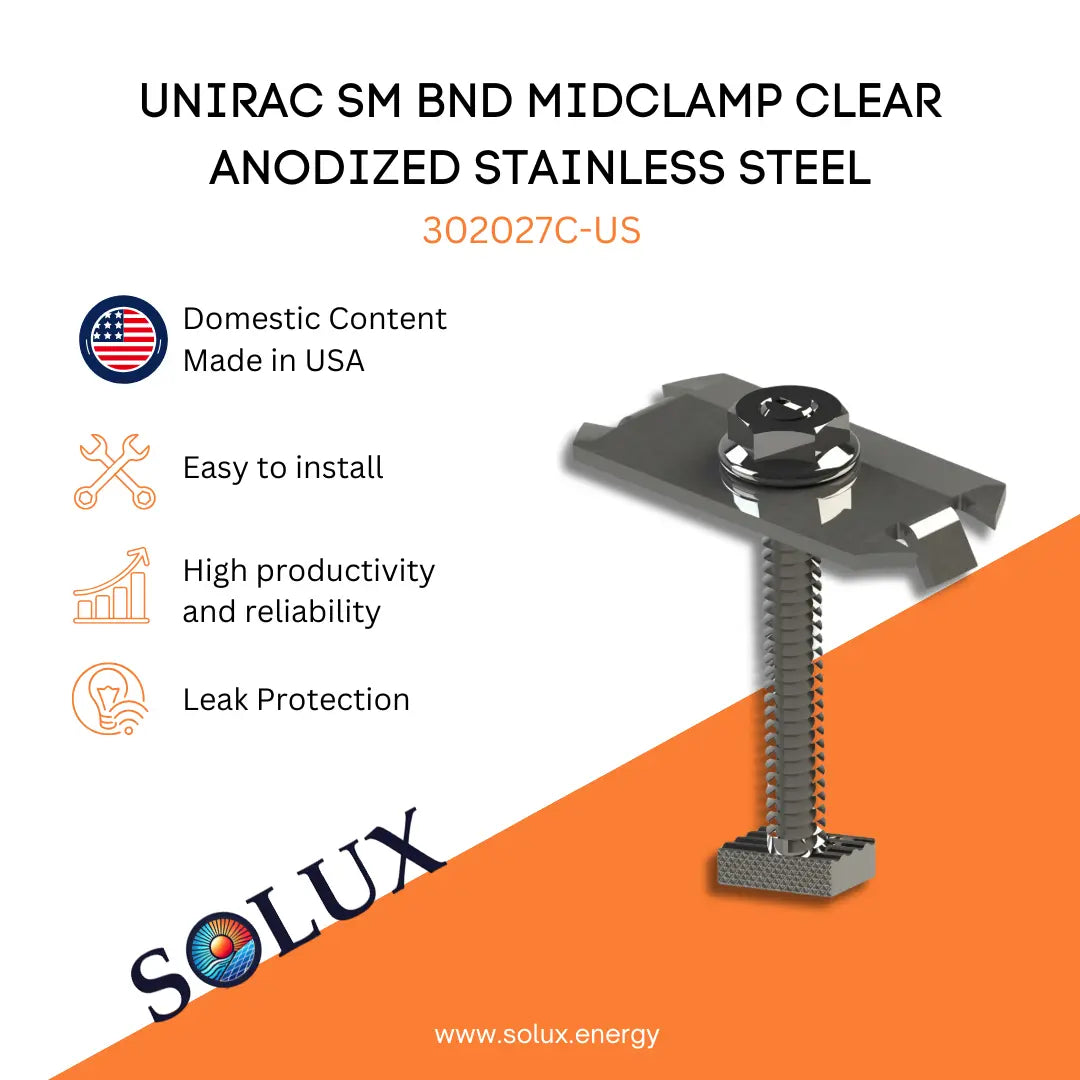

• Clear anodized stainless steel: 302027C-US, 302027C

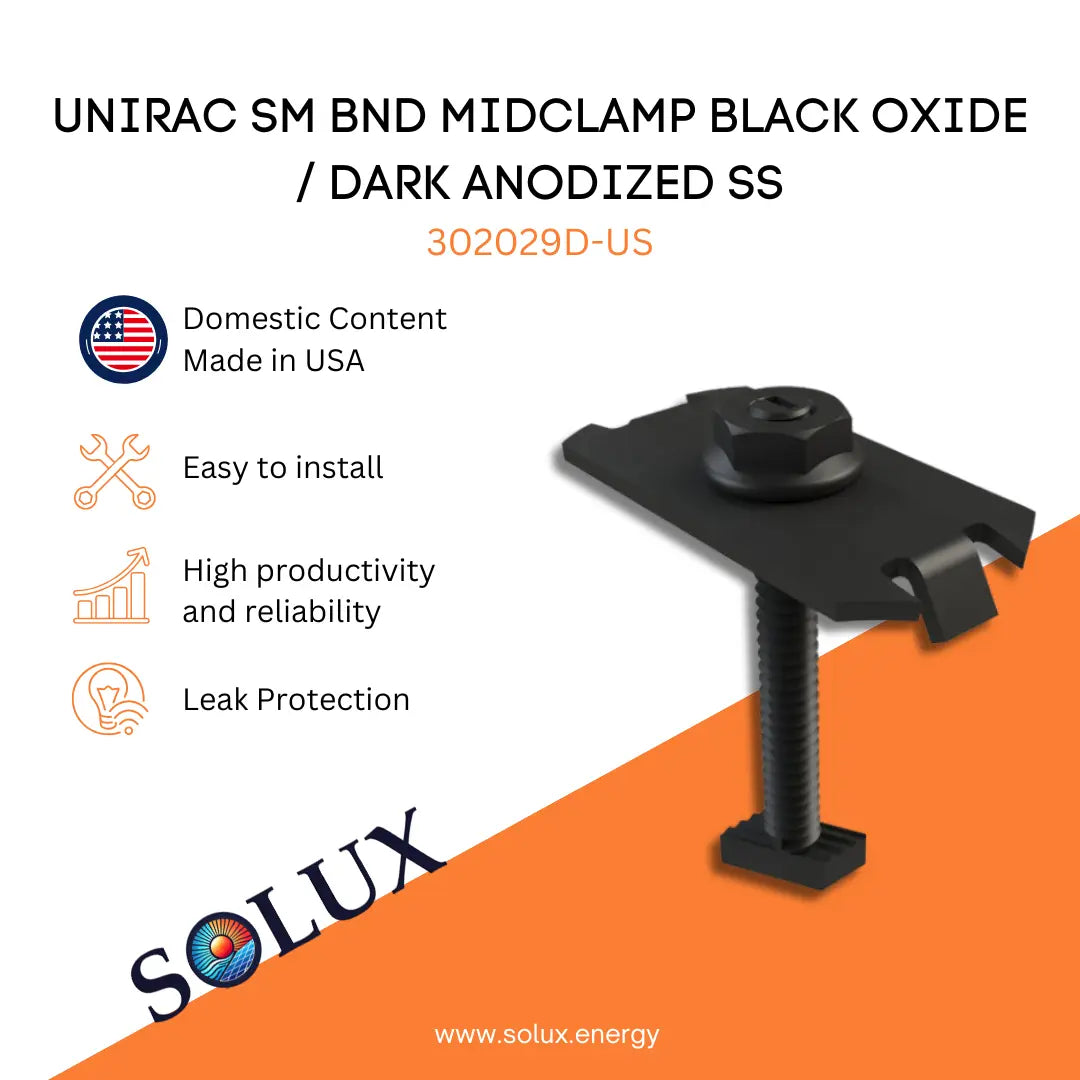

• Black oxide / dark anodized SS: 302029D-US
• Clear anodized stainless steel: 302029C-US, 302029C

Technical Specification:

• Product Type: SM BND MIDCLAMP
• System Compatibility: Unirac SOLARMOUNT® rail-based mounting system
• Application: Commercial and Residential rooftop PV systems
• Material: Stainless steel clamp body & Integrated aluminum / stainless bonding components (varies by version)
• Dimensions (LxWxH):
        302027D: 1 x 2 x 2.25 in
        302027C-US/302027C:  2 x 1 x 2 in
        302029D-US: 1 x 2 x 2.5 in
        302029C-US/302029C: 2 x 1 x 2 in
• Weight:
       302027D: 0.2 lb
       302027C-US/302027C: 0.1 lb
       302029D-US: 0.1 lb
       302029C-US/302029C: 0.1 lb
• Installation Type: Mechanical fastening onto SOLARMOUNT rail via T-bolt system
