Unirac SOLARMOUNT Bonding Mid Clamp

Unirac SOLARMOUNT Bonding Mid Clamp

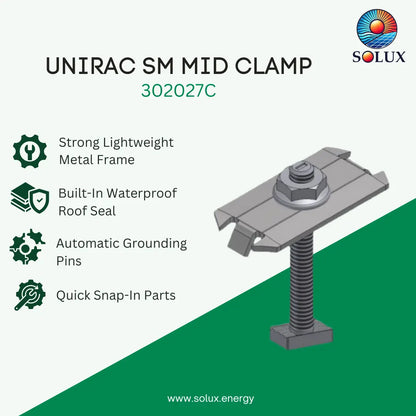

The Unirac SOLARMOUNT Bonding Mid Clamp is a structural racking fastener engineered to secure adjacent photovoltaic (PV) solar modules to Unirac SOLARMOUNT rails while establishing integrated UL 2703 module-to-rail electrical bonding. Installed in the narrow gap between neighboring solar panels, the clamp's dual-lip design grips adjacent module frames evenly to lock them securely against high wind uplift and heavy snow loads.

Featuring integrated bonding pins, the clamp pierces the anodized coating of the solar module frame upon tightening, creating an immediate electrical path to the rail without requiring extra grounding lugs or copper jumper wires. Available across multiple color finishes, frame height profiles, and US-manufactured options, it delivers a clean, professional look for any rooftop solar layout.

Available Color/Finishes:

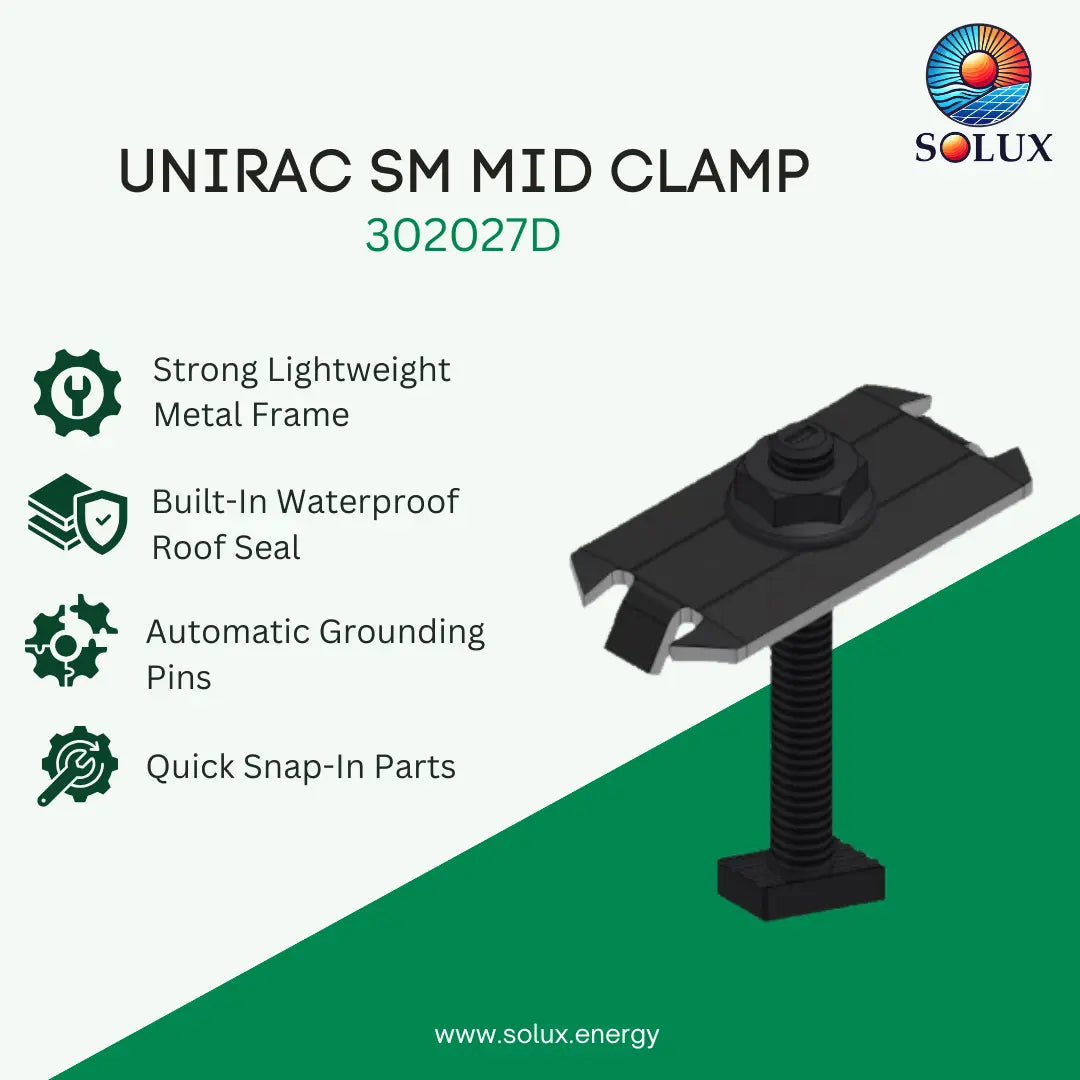

• Black oxide / dark anodized SS: 302027D

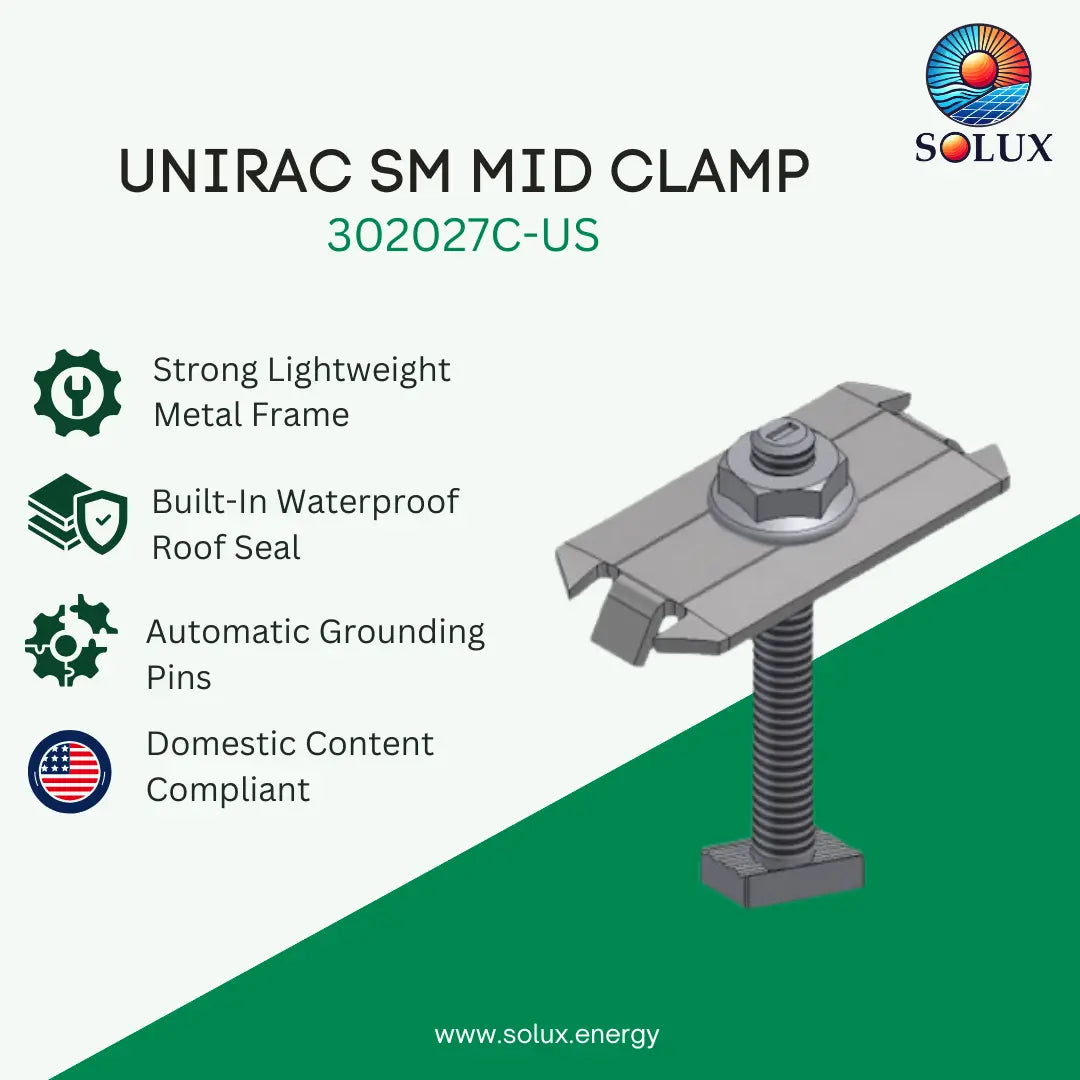

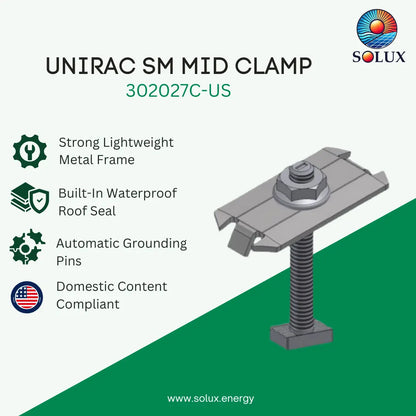

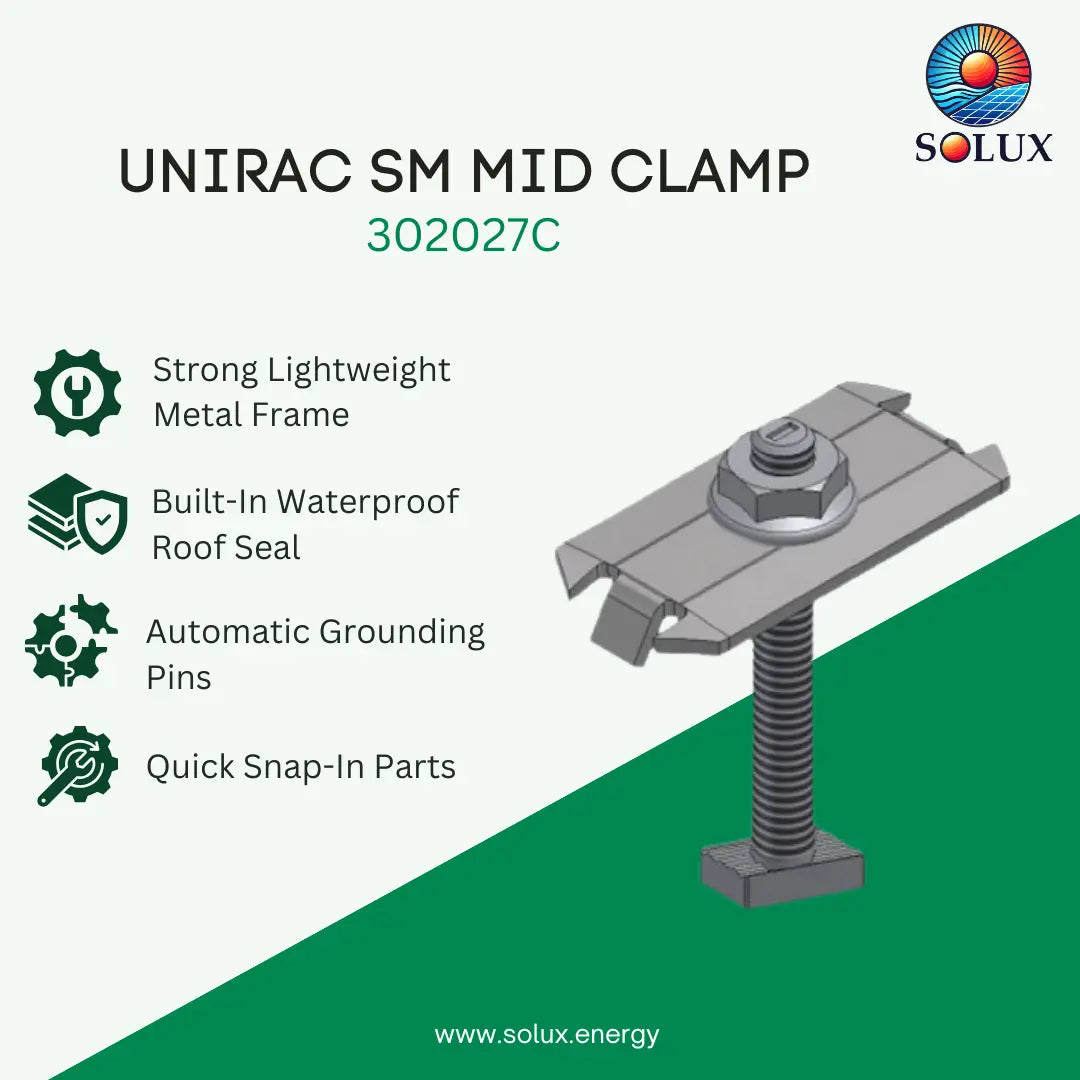

• Clear anodized stainless steel: 302027C-US, 302027C

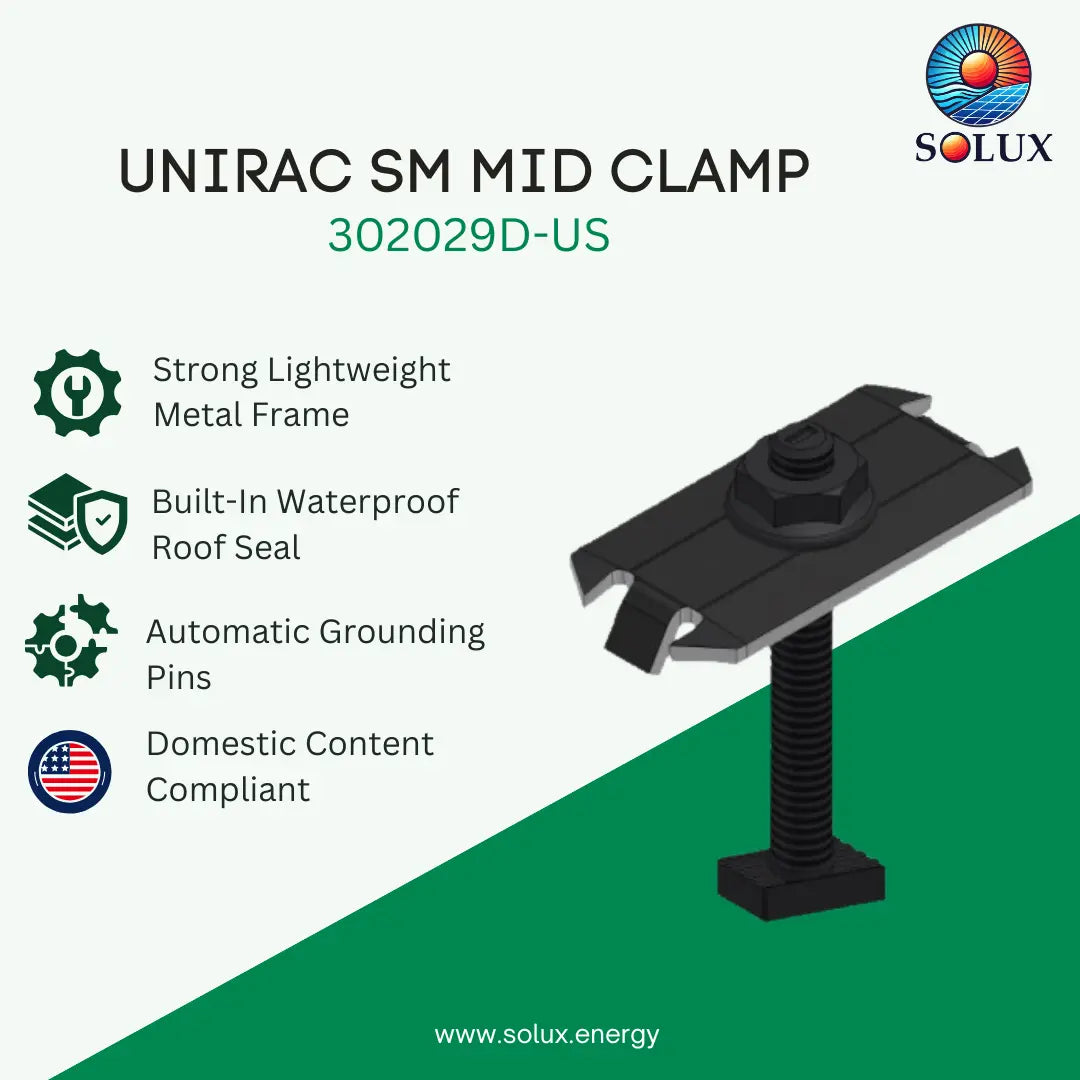

• Black oxide / dark anodized SS: 302029D-US

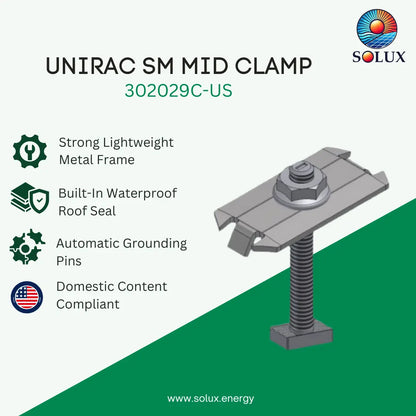

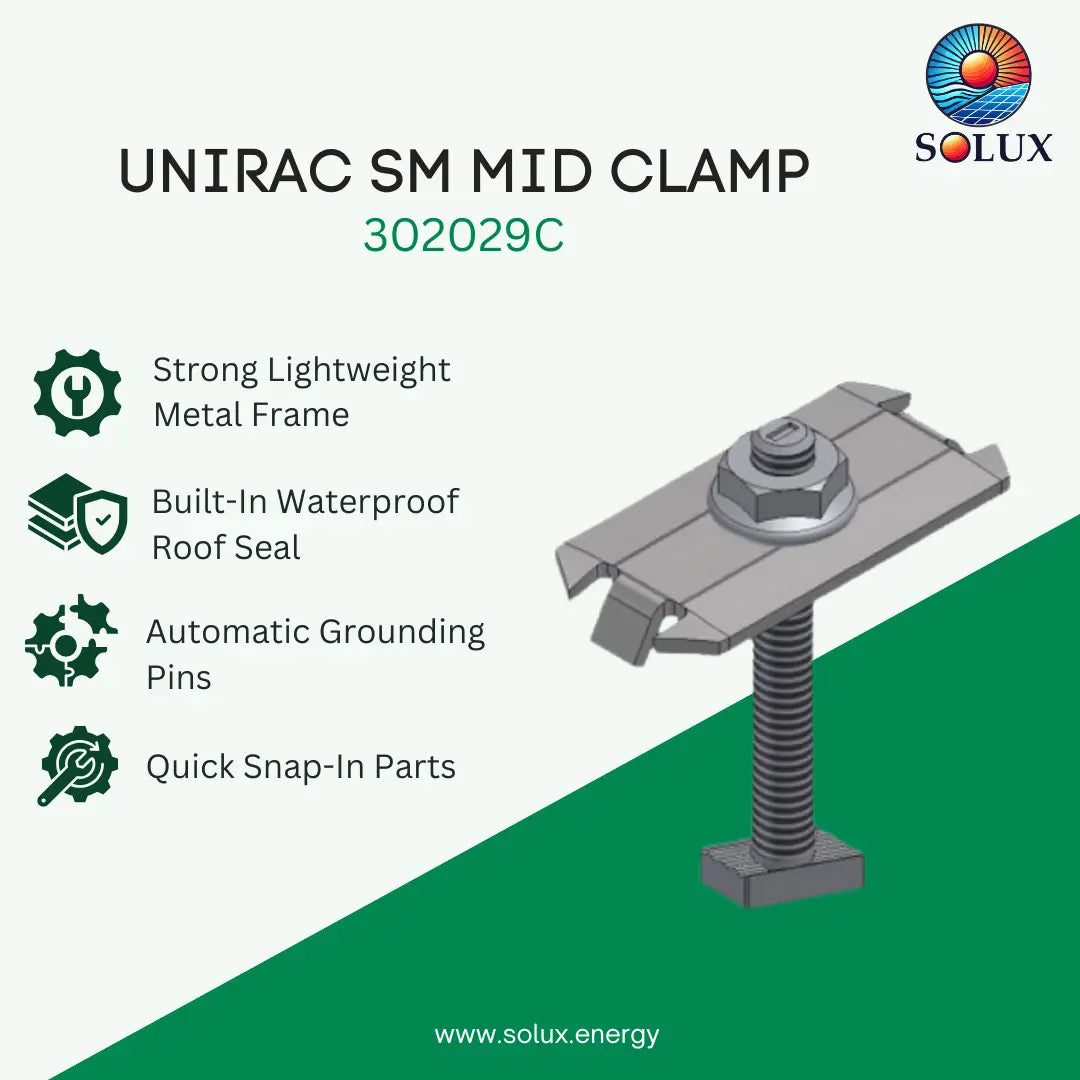

• Clear anodized stainless steel: 302029C-US, 302029C

Technical Specification:

• Product Type: SM BND MIDCLAMP
• System Compatibility: Unirac SOLARMOUNT® rail-based mounting system
• Application: Commercial and Residential rooftop PV systems
• Material: Stainless steel clamp body & Integrated aluminum / stainless bonding components (varies by version)
• Dimensions (LxWxH):
        302027D: 1 x 2 x 2.25 in
        302027C-US/302027C:  2 x 1 x 2 in
        302029D-US: 1 x 2 x 2.5 in
        302029C-US/302029C: 2 x 1 x 2 in
• Weight:
       302027D: 0.2 lb
       302027C-US/302027C: 0.1 lb
       302029D-US: 0.1 lb
       302029C-US/302029C: 0.1 lb
• Installation Type: Mechanical fastening onto SOLARMOUNT rail via T-bolt system
